80 – 200 kg / leaf
Click to enlarge

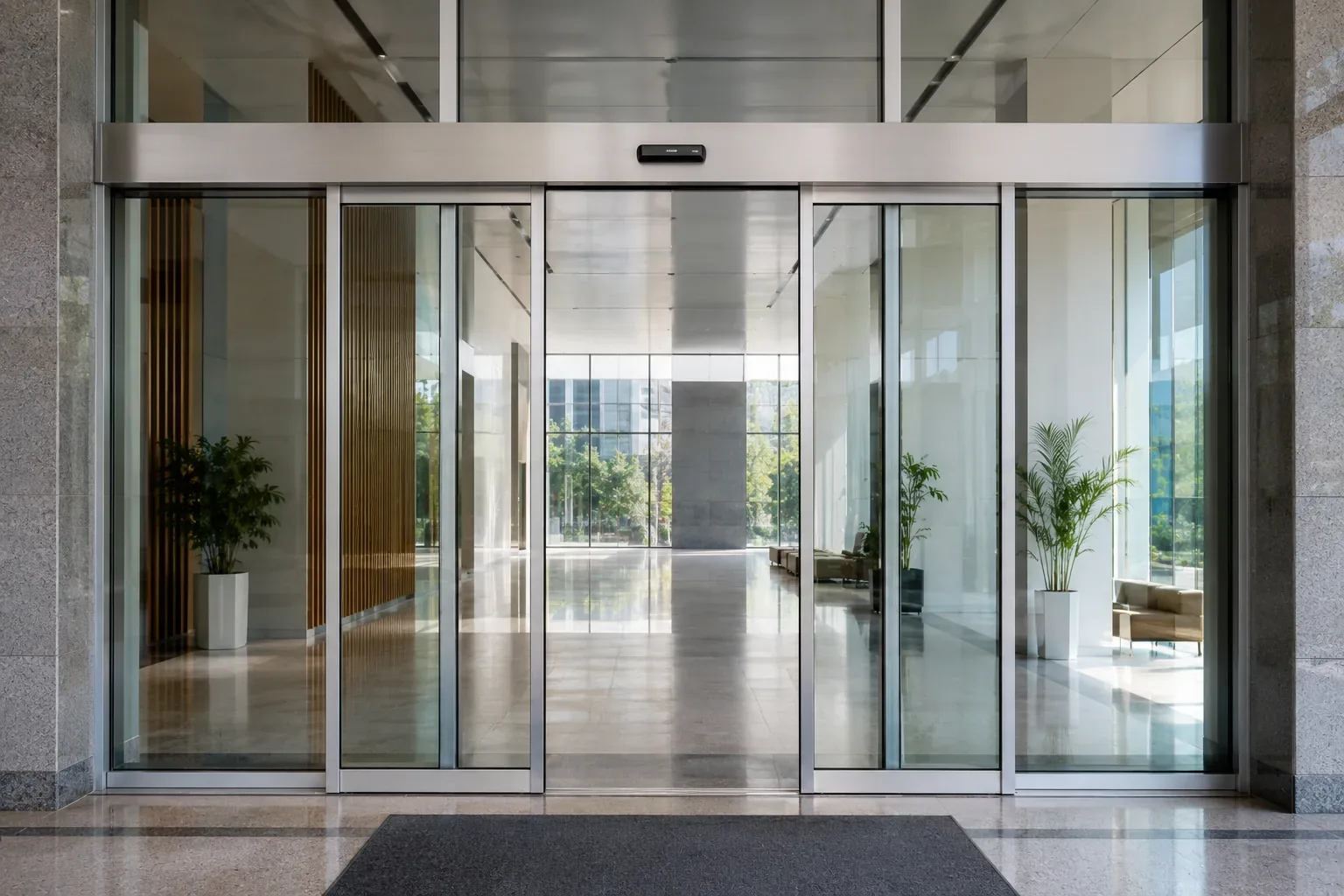

Automatic Sliding Doors — Glass, Hermetic & Telescopic
Yadav Entrance Automation is an automatic sliding door manufacturer in India, building automatic glass, hermetic, telescopic, sensor and industrial sliding door systems for showrooms, hospitals, hotels, airports and clean facilities. Every automatic sliding door runs on a brushless DC operator rated 80–200 kg per leaf, in single, bi-parting or telescopic (2+2) configurations, with microwave activation and safety light-curtain sensors as standard — and battery backup with break-out anti-panic leaves for fire egress.
| Leaf Weight | 80 / 120 / 160 / 200 kg per leaf |
| Configuration | Single, bi-parting & telescopic (2+2) |
| Clear Opening Width | 900mm – 3,000mm+ (configuration dependent) |
| Operator | Brushless DC; 230V single-phase; battery backup option |
Automatic Sliding Door Systems Built for Indian Buildings
Six engineering advantages that make Yadav Entrance Automation the preferred automatic sliding door manufacturer for showrooms, hospitals, hotels and clean facilities across India.
Brushless DC Operators, 80–200 kg/Leaf
Every automatic sliding door runs on a quiet brushless DC operator rated 80 to 200 kg per leaf. Closed-loop control delivers smooth acceleration, soft stop and consistent speed cycle after cycle — engineered for high-traffic entrances that open thousands of times a day.
Microwave + Safety Light-Curtain Sensors
Overhead microwave sensors detect approach and open the door hands-free, while a safety light-curtain across the threshold reverses motion the instant a person or trolley is in the path. Obstruction detection and auto-reverse protect users at every opening.
Battery Backup & Break-Out Anti-Panic
Integrated battery backup keeps the automatic sliding door operating during a power cut, and break-out anti-panic leaves swing outward under push for instant manual egress. The combination meets fire and life-safety requirements for public buildings.
Toughened & Laminated Glass Leaves
Automatic glass sliding door leaves use 10–12mm toughened or laminated glass with slim aluminium frames or frameless patch fittings. Clear, full-height glazing maximises sightlines and daylight while keeping the threshold weather-sealed and draught-free.
Telescopic for Narrow Openings
Where the side pocket is too short for a standard slide, a telescopic sliding door stacks two leaves per side (2+2) to deliver a wider clear opening from a compact reveal. Single and bi-parting layouts cover everything from cabins to airport gates.
Pan-India Install & AMC
Our service network installs and maintains automatic sliding doors nationwide, with Annual Maintenance Contracts carrying a 4-hour emergency response SLA. One vendor for manufacture, installation, sensors, spares and service — no middlemen.
Types of Automatic Sliding Doors We Manufacture
Five automatic sliding door configurations covering every entrance and specialty application — from glass showroom fronts to operating-theatre hermetic doors. Each is built to order to your opening, leaf weight and sensor specification.
Most Popular

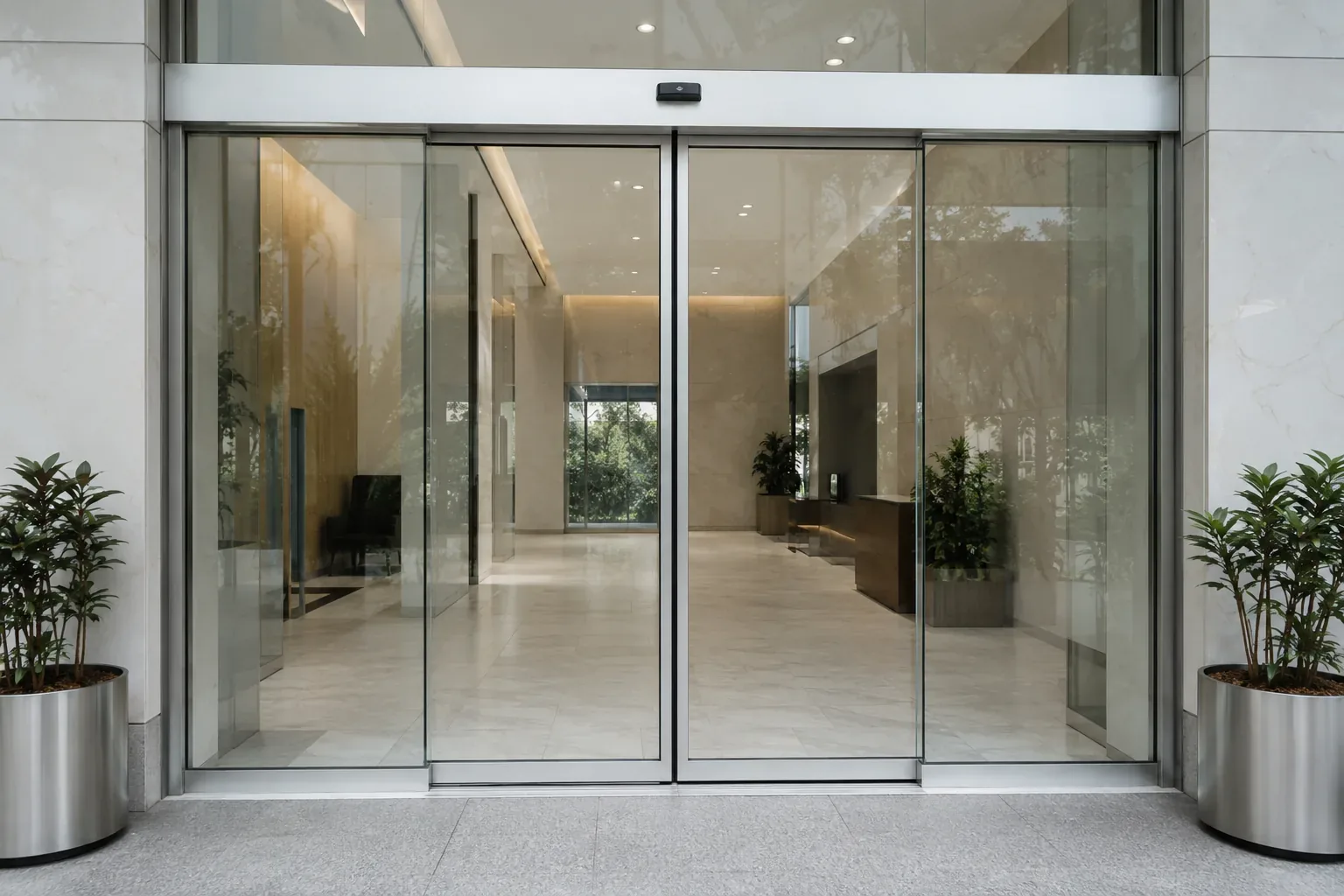

Automatic Glass Sliding Door
The flagship automatic glass sliding door for showrooms, malls, banks, hotels and office lobbies. Toughened or laminated glass leaves on a slim header glide on a brushless DC operator, with microwave activation and a safety light-curtain as standard. Single or bi-parting, with battery backup optional.
View details
Healthcare / Clean Room

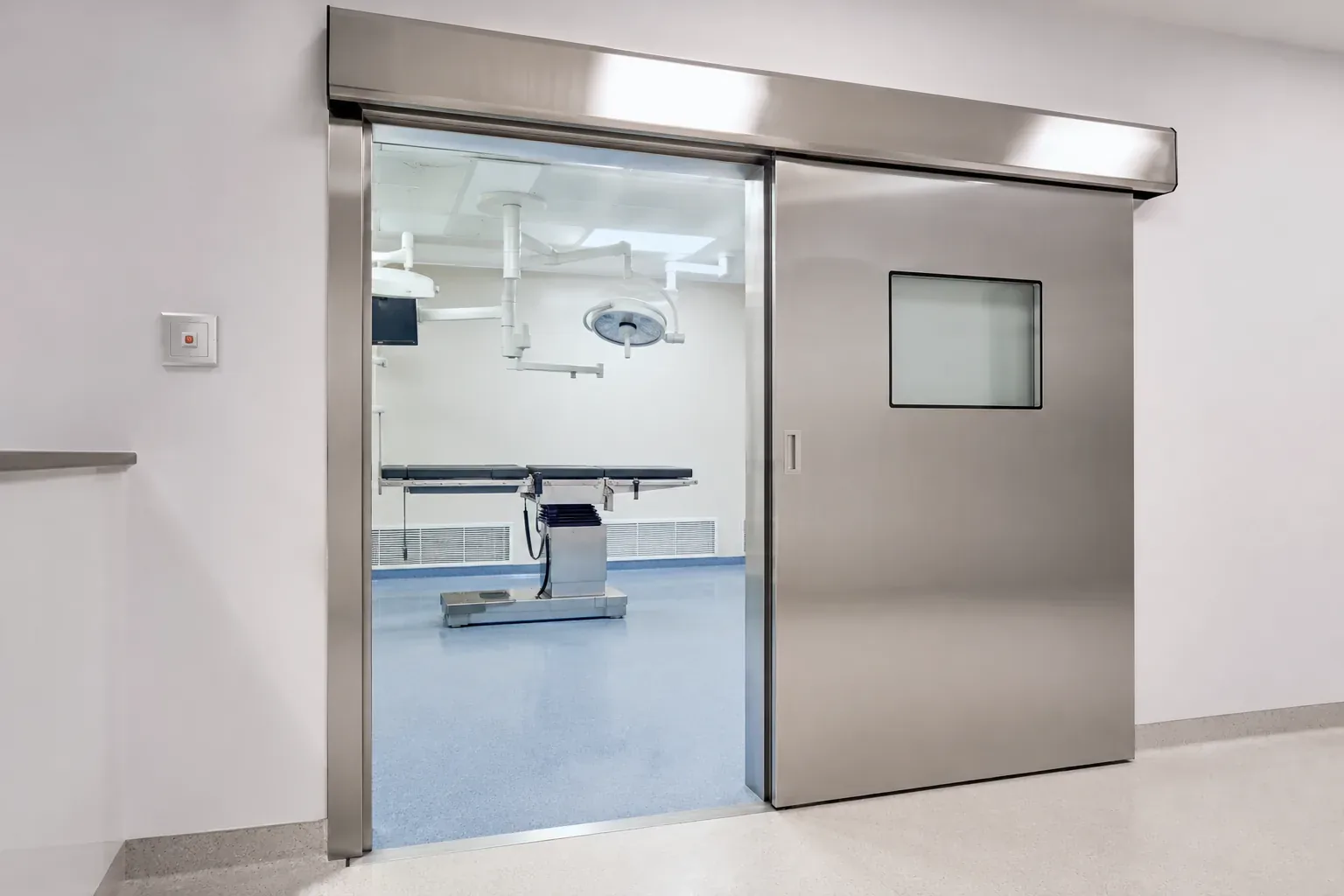

Hermetic Sliding Door
A hermetic sliding door for operating theatres, ICUs and pharma clean rooms. Stainless-steel frame, sealed perimeter gasket, flush bottom sill and antibacterial coating maintain pressure differentials and contamination control. Hands-free, foot or elbow-switch operation keeps the threshold sterile.
View details
Industrial

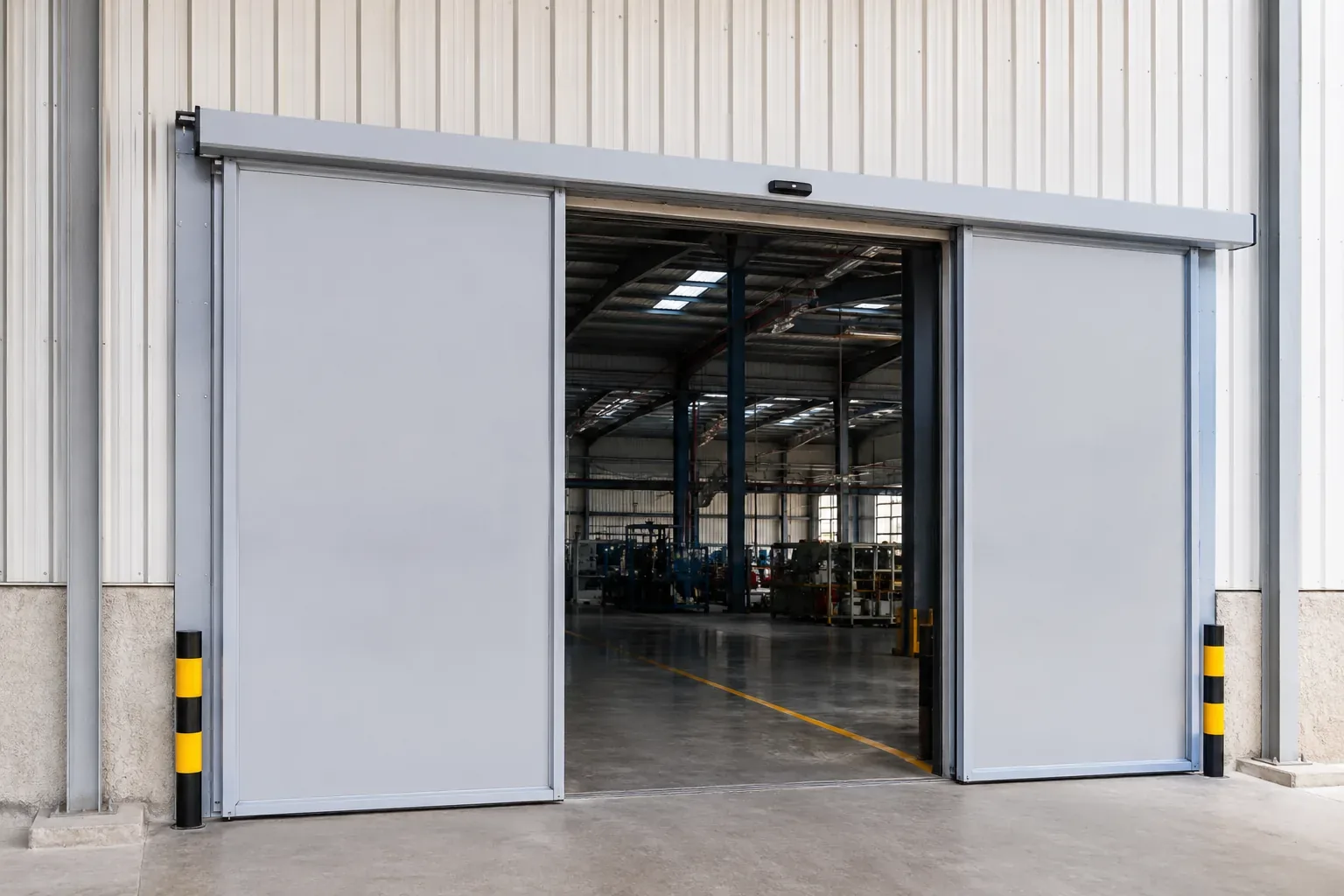

Industrial Sliding Door
A heavy-duty industrial sliding door with an IP-rated operator for factories, warehouses and process areas exposed to dust and washdown. Insulated or steel leaves on a heavy-duty track handle wide openings and continuous duty, integrating with access control and traffic sensors.
View details
Narrow Openings

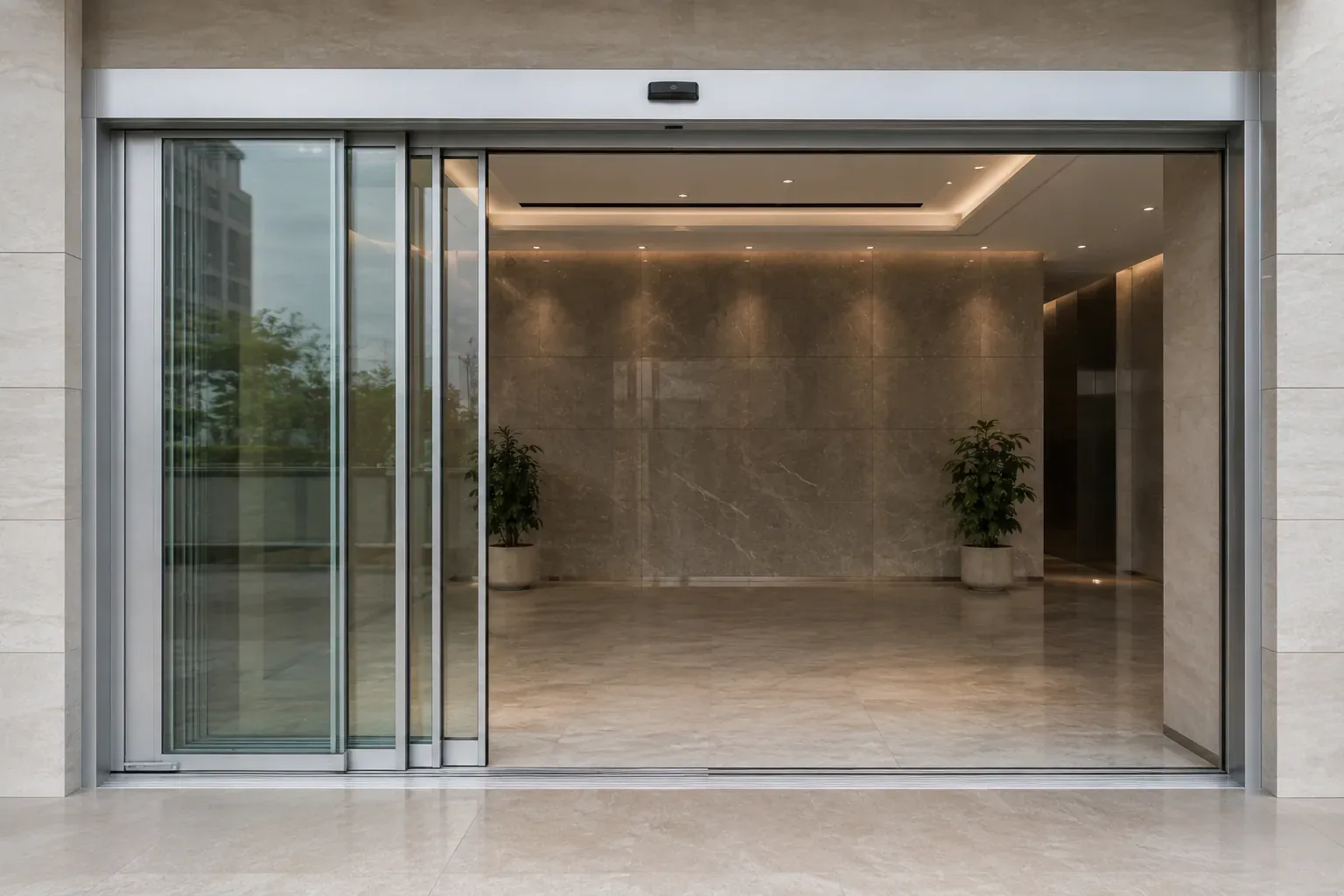

Telescopic Sliding Door
A telescopic sliding door stacks two leaves per side in a 2+2 configuration, delivering a wide clear opening from a short side pocket where a standard slide can't reach. Ideal for narrow reveals, airport gates and lift lobbies. Available in glass or solid leaves with synchronised belts.
View details
Hands-Free

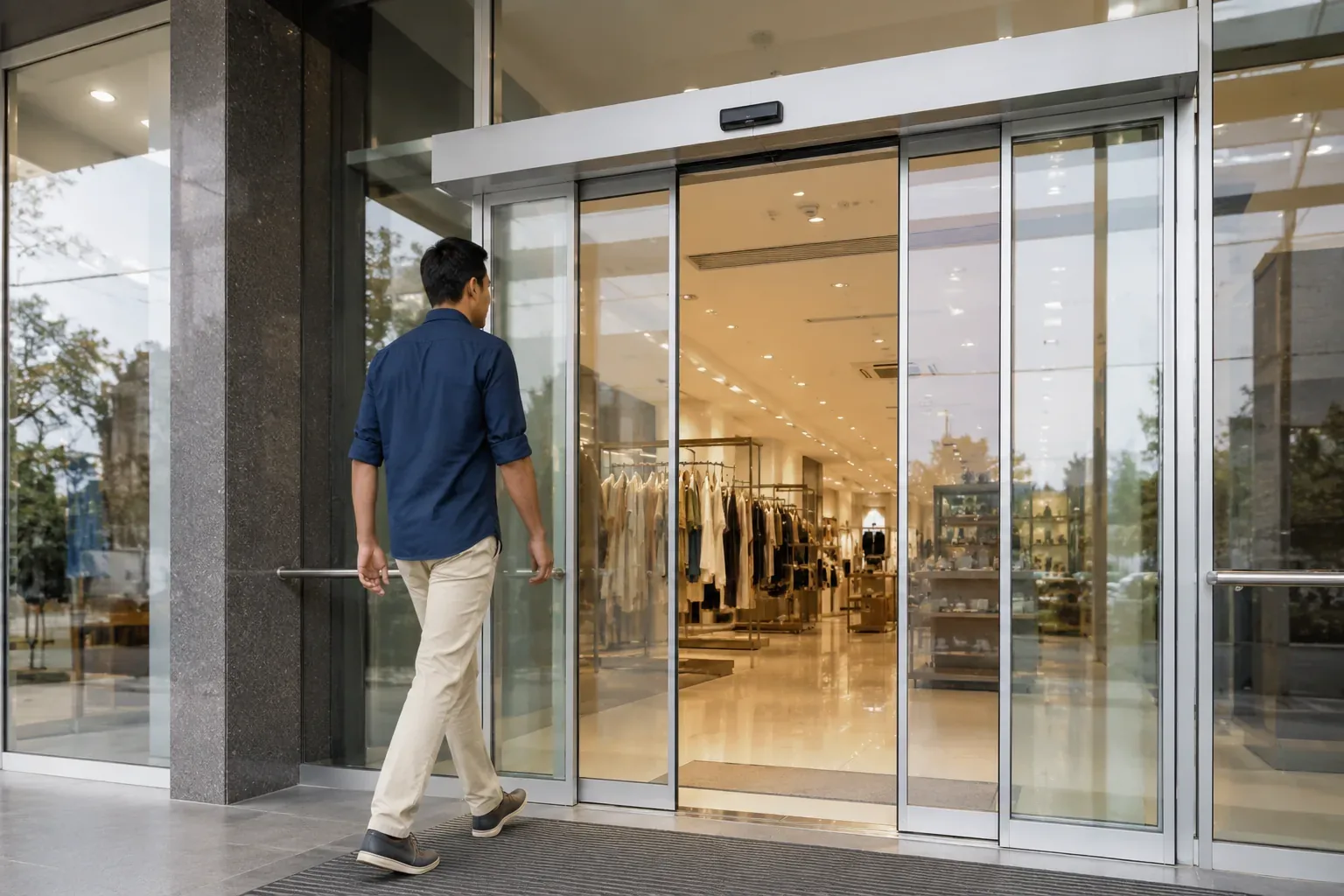

Sensor Sliding Door
A sensor sliding door tuned for fully hands-free, touchless operation in high-hygiene and high-traffic settings. Overhead microwave sensors detect approach and a threshold light-curtain guards the opening, with adjustable hold-open time, opening width and speed for energy-efficient, contactless entry.
View detailsWhere Automatic Sliding Doors Are Used
Yadav Entrance Automation automatic sliding doors are deployed across India's healthcare, retail, hospitality and transport sectors — each with specific hygiene, traffic and life-safety requirements our engineers address at specification stage.
Hermetic sliding doors for operating theatres and ICUs, plus hands-free glass entrances for lobbies and corridors
Automatic glass sliding doors at showroom and mall fronts that welcome footfall while sealing in conditioned air
Wide bi-parting glass entrances with battery backup for premium, draught-free arrival experiences
Telescopic sliding doors for narrow gate reveals and high-throughput terminal and metro entrances
Sensor sliding doors with access control, night-lock and break-out anti-panic leaves for secure lobbies
SS-framed hermetic doors with sealed gaskets and antibacterial coating for GMP pressure-controlled zones
IP-rated industrial sliding doors for dust, washdown and continuous-duty traffic between process areas
Touchless sensor doors for hygiene-critical kitchens and insulated sliding doors at chilled thresholds
Full Automatic Sliding Door Specifications
Complete engineering data for the Yadav Entrance Automation automatic sliding door range. All systems are built to order — leaf weight, configuration, clear width and sensors are configured to your opening and application.
| Parameter | Specification |
|---|---|
| Leaf Weight (per leaf) | 80 kg / 120 kg / 160 kg / 200 kg (operator selected to suit) |
| Configuration | Single slide, bi-parting (centre-opening) & telescopic (2+2) per side |
| Clear Opening Width | 900mm – 3,000mm+ (depends on configuration & leaf count) |
| Operator | Brushless DC motor with encoder; 230V single-phase; soft start / stop |
| Leaf / Glazing | 10–12mm toughened or laminated glass; solid / insulated panels (industrial) |
| Activation Sensors | Overhead microwave motion sensor; access control / push / foot switch options |
| Safety Sensors | Threshold safety light-curtain with auto-reverse & obstruction detection |
| Opening Speed | Adjustable approx. 0.3–0.6 m/s; hold-open & closing speed configurable |
| Backup & Egress | Battery backup option; break-out anti-panic leaves for fire egress |
| Hermetic Variant | SS frame, sealed perimeter gasket, flush sill, antibacterial coating |
| Industrial Variant | IP-rated operator for dust / washdown environments; insulated leaf option |
| Control | Programmable controller — auto / manual / open-hold / night-lock modes |
| Certifications | ISO 9001:2015, CE Marked (EU Machinery Directive 2006/42/EC) |
| Warranty | 2 years operator & controller, 5 years track & carriage |
Automatic Sliding Door Variant Comparison
| Door Type | Configuration | Glass Sliding ⭐ Most Popular | Max Clear Width | Sensor / Safety | Best For |
|---|---|---|---|---|---|
| Automatic Glass Sliding Door | Single / bi-parting | Toughened glass | Up to 3,000mm | Microwave + light-curtain | Showrooms, lobbies |
| Sensor Sliding Door | Single / bi-parting | Touchless | Up to 2,400mm | Microwave + light-curtain | Banks, offices |
| Telescopic Sliding Door | Telescopic (2+2) | Glass / solid | Up to 3,500mm | Microwave + light-curtain | Narrow reveals, gates |
| Industrial Sliding Door | Single / bi-parting | Insulated panel | Up to 4,000mm | IP-rated + traffic sensor | Factories, process areas |
| Hermetic Sliding Door | Single, flush sill | SS, sealed gasket | Up to 1,800mm | Hands-free + light-curtain | OT, ICU, clean rooms |
Certified to International Standards
Our automatic sliding door range carries the certifications required by India's leading hospitals, retail chains, hospitality groups and government procurement bodies.
9001
Quality management certification covering design, manufacture, installation and after-sales service of all automatic sliding door systems.
European conformity per EU Machinery Directive 2006/42/EC — confirming operator and safety-sensor compliance for public buildings.
16005
Power-operated pedestrian door safety standard — break-out anti-panic, light-curtain and force limits for safe public use.
2016
Installation methodology compliant with the National Building Code of India 2016 for fire egress and means of escape.
in India
100% manufactured at our registered Indian facilities — qualifies for government procurement preference and PSU tenders.
Automatic Sliding Door Design + Quote in 24 Hours
No generic quotes, no run-around.
In-House Manufacturing
Every automatic sliding door manufactured under ISO 9001 quality control — no imported products, no middlemen.
Free Site Survey & Measurement
Our engineers survey your opening and supply a layout drawing with sensor placement for your contractor — at no charge.
AMC Available Nationwide
Annual Maintenance Contracts covering all automatic sliding doors and entrance systems with a 4-hour emergency response SLA.
Choosing automatic sliding doors: what actually decides the specification
A automatic sliding door is a sensor-operated sliding door with one or more moving leaves. The right one is decided by the opening and how it is used, not by the catalogue. These are the things worth settling before anyone quotes.
What to measure
- Clear opening width and height — the daylight opening the vehicle or person passes through, not the hole in the wall.
- Headroom above the opening — decides which products are possible at all.
- Side-room, both sides — guides, tracks and motors live here, and it is rarely equal on both sides.
- Power at the position — 230V single-phase or 415V three-phase, 50 Hz.
- Cycles per shift — the most under-specified figure on a typical enquiry.
- Environment — temperature, dust, washdown, coastal air or a hygiene requirement.
The full automatic sliding doors range
- Automatic Glass Sliding Door — The flagship automatic glass sliding door for showrooms, malls, banks, hotels and office lobbies.
- Hermetic Sliding Door — A hermetic sliding door for operating theatres, ICUs and pharma clean rooms.
- Industrial Sliding Door — A heavy-duty industrial sliding door with an IP-rated operator for factories, warehouses and process areas exposed to dust and washdown.
- Telescopic Sliding Door — A telescopic sliding door stacks two leaves per side in a 2+2 configuration, delivering a wide clear opening from a short side pocket where a standard slide can't reach.
- Sensor Sliding Door — A sensor sliding door tuned for fully hands-free, touchless operation in high-hygiene and high-traffic settings.
Where automatic sliding doors are typically installed
We build automatic sliding doors for office and hospital entrances, clean rooms and controlled pharmaceutical areas.
Sectors we supply
- Warehousing and logistics — distribution centres, 3PL facilities and dispatch docks.
- Cold chain — cold stores, freezer rooms and temperature-controlled dispatch.
- Automotive and engineering — component plants, press shops and assembly lines.
- Pharmaceutical and clean manufacturing — controlled and hygiene-critical areas.
- Infrastructure and construction — plant perimeters, site structures and civil scopes.
- Commercial and institutional — offices, campuses, hospitals and parking facilities.
What drives the cost
We quote per project rather than publishing prices. The figure moves with the leaf weight and glazing, the sensor and controller, and any hermetic requirement. Send the measurements above and an engineer returns a drawing and a written quotation. Talk to an engineer →
Standards, materials and what we certify
- ISO 9001 — our quality management system is certified to it.
- CE marking on applicable products — a manufacturer's declaration of conformity, not a quality grade.
- IS 2062 structural steel for fabrication, gates and structures.
- IS 6248 for metal rolling shutters.
- EN 1634 as the reference for fire-resistance testing.
- Make in India and GST registered — relevant to government and PSU procurement.
- 230V single-phase / 415V three-phase, 50 Hz — standard Indian industrial mains.
Reference sources: European Commission, CE marking · Bureau of Indian Standards
From enquiry to handover
- Enquiry. Opening sizes, site location and application. An engineer picks it up.
- Site survey. We measure the clear opening, headroom, side-room and power position.
- Drawing and quotation. Equipment, safety schedule, electrical requirement and a written delivery date.
- Manufacture at Neemrana. Built to the approved drawing and the measured opening.
- Installation and commissioning. Fitted and tested by our own team through full travel with safety devices live.
- Handover, spares and AMC. Operating instructions on site, then service through the nearest team.
Explore the full product range, the sectors we serve, our delivered installations, or the areas we cover.
Automatic Sliding Doors — frequently asked questions
Who manufactures automatic sliding doors in India?
Yadav Entrance Automation Pvt. Ltd. manufactures automatic sliding doors in India, at our plant at Neemrana, Rajasthan on the Delhi-Jaipur NH-48 corridor. We have been building entrance automation equipment since 2011, with more than 500 installations across over 50 cities. Equipment is made to the measured opening rather than to a catalogue size, then installed and commissioned by our own engineers.
What is a automatic sliding door?
A automatic sliding door is a sensor-operated sliding door with one or more moving leaves. It is specified against the opening it serves and the way that opening is used, so two openings of the same width can need different equipment. We build automatic sliding doors for office and hospital entrances, clean rooms and controlled pharmaceutical areas.
What does a automatic sliding door cost?
We quote per project rather than publishing a price, because the figure moves with the leaf weight and glazing, the sensor and controller, and any hermetic requirement. Send the opening dimensions, the site location and how the opening is used, and an engineer will come back with a drawing and a written quotation. That is faster than a list price that would need revising once the site is measured.
Do you supply automatic sliding doors near me?
We install and service across North and West India, with the plant at Neemrana and teams in Delhi NCR and Gujarat. Installations to date cover more than 50 cities, concentrated in the Delhi-Jaipur corridor, Haryana, Rajasthan and Gujarat. Tell us the site location with your enquiry and we will confirm coverage before quoting.
Can automatic sliding doors be motorised or automated?
Yes, where the product supports it. Motorised operation is specified against the weight being moved and the number of cycles per day, not simply added on. The drive, the control panel and the safety devices are listed on the technical drawing you approve before manufacture, so nothing about the automation is a surprise on site.
What power supply is needed?
Standard Indian industrial mains: 230V single-phase or 415V three-phase at 50 Hz. Which one applies depends on the product, the size of the opening and the duty cycle. The requirement is confirmed on the approved drawing so your electrical contractor can position the supply and isolator before delivery.
What measurements do you need to quote for automatic sliding doors?
Clear opening width and height first — the daylight opening, not the wall opening. Then the headroom above the opening and the free side-room each side. Add the power available at the position, how many openings, and roughly how often each is used in a shift. Those figures let an engineer rule out the wrong products before visiting.
Do you handle installation, or only supply?
We manufacture, install and commission with our own team, and we do not sub-contract installation of our own equipment. How well a unit is fitted to its opening decides how long it lasts, so it is not work we hand off. Handover includes operating instructions on site.
Do you provide service, spares and AMC?
Yes. We supply genuine spares and offer Annual Maintenance Contracts for the equipment we manufacture. On high-cycle equipment maintenance matters more than most buyers expect, because wear tracks cycles rather than calendar age. Tell us the site and the equipment and we will route it to the nearest service team.
Which standards and certifications apply?
Our manufacturing is certified to ISO 9001 and applicable products are CE marked. Structural steelwork commonly references IS 2062 and rolling shutters IS 6248, both published by the Bureau of Indian Standards; fire-resistance testing is commonly referenced to EN 1634. If your specification names a standard, send the clause with the enquiry so it is written into the drawing.
Can you make automatic sliding doors to a non-standard size?
Yes, and most industrial openings are non-standard. Equipment is built to the measured opening rather than to a catalogue size. We take the clear width, clear height, headroom and side-room on site, then confirm the achievable size on the drawing before manufacture begins.
How long does manufacture and delivery take?
It depends on the product and whether the opening is standard or bespoke, and it moves with material availability and the current order book. Rather than quote a general figure that may not hold, we confirm a delivery date in writing with the quotation.
Do you work with contractors, consultants and PSUs?
Yes. We supply end users directly and also work as a vendor to main contractors, PMCs and design consultants. We are GST registered and manufacture under Make in India, which matters for government and PSU procurement. For tendered work we can provide drawings, product data and the compliance documentation the specification calls for.
What safety devices are included?
For powered equipment, typically safety photocells across the opening, a safety edge where applicable, limit switches at both travel ends, and a manual release for use during a power cut. Vehicle equipment can add loop detectors. The exact schedule is listed on the drawing you approve, so check that rather than assuming a standard set.
How do I get a quote for automatic sliding doors?
Use the enquiry form on this page and the details reach our team directly, or call and send a WhatsApp message on +91 95492 20707, or email [email protected]. If you already hold drawings or a specification, say so and an engineer will respond rather than a generic reply.
