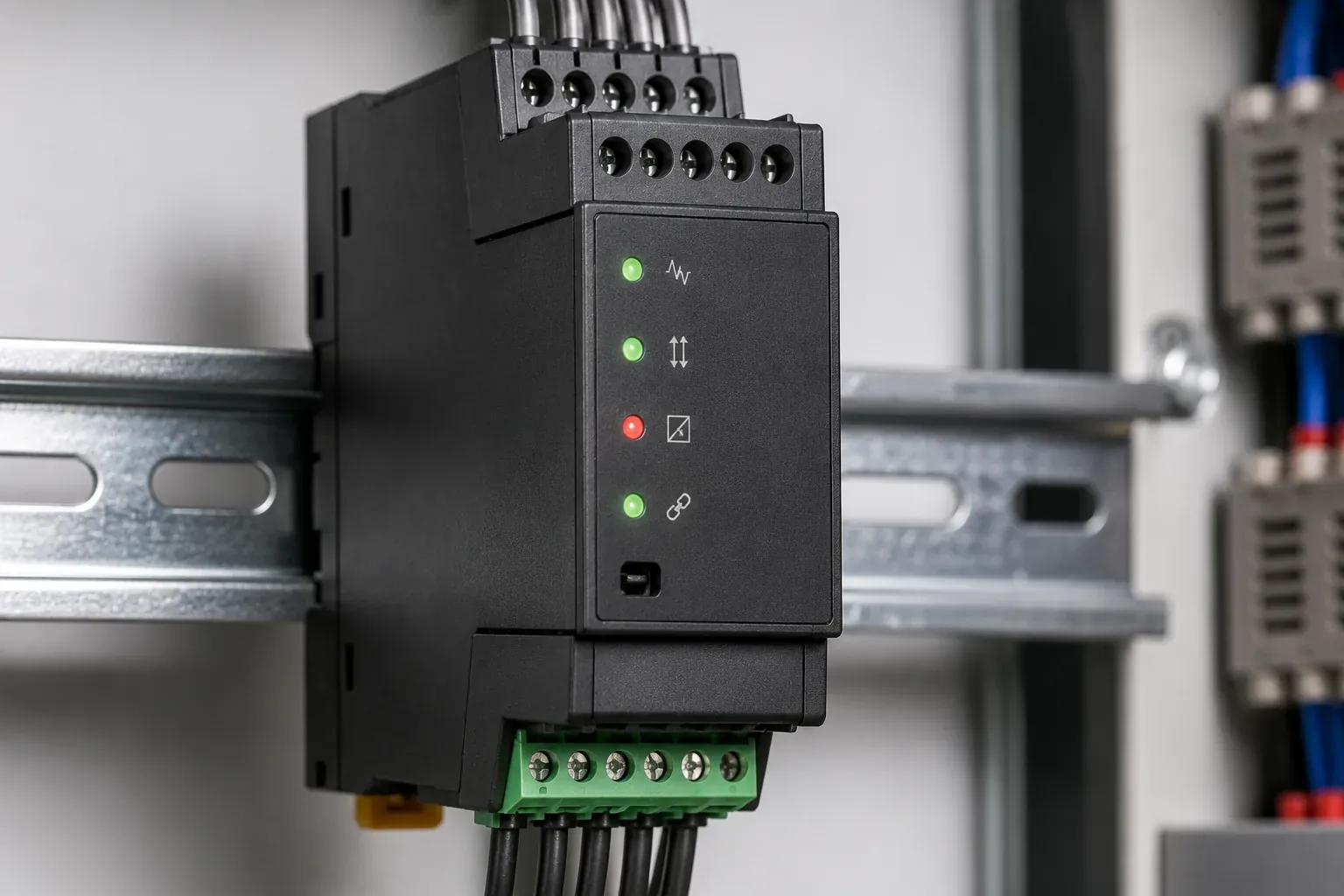

Loop Detectors
Inductive loop detectors that sense a vehicle over a buried loop for safety reversing and free-exit opening. Single- and dual-channel units with adjustable sensitivity, ideal for barrier and sliding-gate vehicle automation.
| Channels | single / dual |
| Sensing | inductive loop |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
ISO 9001 · CE marked · Make-in-India · Manufacturing since 2011 · 500+ installations across 50+ cities. See the full Gate Motor & Automation Parts Supplier India range and how we build it, or read more about our plant and capabilities.
Loop Detectors: Technical Specifications
Complete engineering data for the Yadav Entrance Automation gate motor, rolling shutter motor and accessory range. All systems are configured to your gate, leaf weight, traffic level, power supply and safety devices are matched to the application.
| Parameter | Specification |
|---|---|
| Sliding Gate Capacity | 600 kg / 1,000 kg / 1,800 kg / 2,500 kg / 4,000 kg (rack-and-pinion) |
| Swing Operator | Articulated arm or hydraulic ram; leaves up to 5 m / 500 kg per leaf |
| Rolling Shutter Motor | Tubular & side-gear types, 100 kg – 1,500 kg; manual override chain |
| Power Supply | 24V DC (battery backup) / 230V single-phase / 415V 3-phase |
| Drive & Control | Encoder soft start / soft stop; MCU control panel with auto-close timer |
| Remote Control | 433MHz rolling-code transmitter; multi-user memory; keypad / RFID / GSM optional |
| Safety Photocell | Thru-beam pair, IP65, working range up to 20 m; auto-reverse on beam break |
| Loop Detector | Inductive, single or dual channel; adjustable sensitivity & frequency |
| Flashing Lamp | LED weatherproof courtesy/flashing lamp; wired to control panel |
| Safety Sensor | Resistive / pneumatic safety edge on leading rail; stop & reverse |
| Battery Backup | Integrated on 24V DC operators: continued operation during mains failure |
| Certifications | ISO 9001:2015, CE Marked (EU Machinery Directive 2006/42/EC) |
| Warranty | 1 year on accessories; 2 years on gate motor / shutter motor drive unit |
What the Loop Detectors is, and who it suits
The Loop Detectors is a type of gate motors / automation accessories used across offices, factories, campuses and parking facilities. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Gate Motors / Automation Accessories range, the sectors we serve, or every product line.
- Factory and office main entrances
- Warehouse and stores access points
- Parking entries with vehicle identification
- Campus and multi-building sites
- Server rooms and restricted areas
- Attendance-controlled shop floors
- Number of doors, lanes or entry points to control
- Approximate number of users or vehicles
- Reader type: RFID, biometric or face recognition
- Any integration needed with existing attendance or ERP systems
- Power and network availability at each point
- Indoor or outdoor mounting
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Loop Detectors: Engineered & Supported Across India
The Loop Detectors is manufactured and supported entirely within India. As an Indian manufacturer of gate motors / automation accessories, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian offices, factories, campuses and parking facilities, variable power supply, high ambient temperatures, dust and monsoon humidity, and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities: qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor, Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi, and the Gujarat industrial belt, Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Where the Loop Detectors fits
Sensing vehicles without anything mounted above ground: an inductive loop cut into the road surface, wired to a single or dual-channel detector. It is what stops a barrier dropping on a car, opens a gate for a vehicle leaving, and counts movements at an entrance.
Loop Detectors vs the alternatives
Against photocells, a loop detects metal vehicles specifically and ignores people, rain and blowing debris, which makes it far more reliable for vehicle control. The trade is installation: the loop is cut into the surface, so it is easy during construction and disruptive afterwards. Against radar, loops are unaffected by weather but cannot be moved once laid.
Specifying a Loop Detectors
Tell us what the loop must do: safety under a barrier, free exit from a gate, or counting. Confirm whether one channel or two are needed, since safety and exit usually need separate loops. Say what the road surface is and whether it can be cut, and mention any reinforcement or services beneath.
Loop Detectors: Frequently Asked Questions
What is a loop detector for?
Do I need single or dual channel?
Can it detect motorcycles?
Can a loop be installed in an existing driveway?
Do loops fail?
Which regions do you install and service in?
Do you provide installation, spares and AMC?
Is the Loop Detectors certified?
