Up to 8m W × 7m H
Click to enlarge
Industrial Sectional & Overhead Doors
Yadav Entrance Automation is an industrial sectional door and overhead door manufacturer in India, building insulated, glazed, dock and commercial overhead doors with 40mm double-skin PU-foam panels. Every sectional overhead door is engineered for warehouse and factory bays — vertical-lift, standard-lift and high-lift tracks, spring-balanced operation with chain-hoist or motorized operator — making it the secure, weather-tight upgrade to a conventional industrial garage door or dock door.
| Max Width | Up to 8,000mm (8m clear opening) |
| Max Height | Up to 7,000mm (7m clear opening) |
| Panel | 40mm double-skin PU-foam insulated, galvanized + powder-coated |
| Operation | Spring-balanced; chain-hoist or motorized operator |
Industrial Overhead Doors Built for Indian Industry
Six engineering advantages that make Yadav Entrance Automation industrial sectional doors and overhead doors the preferred choice for warehouses, factories and logistics hubs across India.
40mm Insulated Sectional Door Panels
Our insulated sectional door uses 40mm double-skin panels with a CFC-free PU-foam core, delivering a low U-value that holds temperature in cold stores and air-conditioned plants. Galvanized and powder-coated skins resist corrosion across India's humid and coastal sites.
Fail-Safe Safety as Standard
Every overhead door ships with safety photocells that reverse on obstruction, an anti-drop device that locks the panel on spring or cable failure, and finger-protect panel joints that eliminate pinch points. Closing edge sensors and manual chain-hoist override are available.
Spring-Balanced, Smooth Operation
Torsion-spring counterbalancing makes even a 7m-high commercial overhead door easy to operate by chain-hoist, and effortless under a motorized operator. Sealed roller carriages and galvanized tracks deliver quiet, drift-free travel cycle after cycle.
Vertical, Standard & High-Lift Tracks
Choose standard-lift for typical headroom, high-lift to stack the door clear of overhead cranes, or vertical-lift where full ceiling height is available. We design the track geometry around your lintel, headroom and side-room — not a fixed catalogue layout.
Widths to 8m, Heights to 7m
From compact garage door openings to 8m × 7m industrial bays, every sectional overhead door is fabricated to your clear opening. Add a wicket door for personnel access, glazed vision windows, or ventilation grilles — engineered to your facade.
Pan-India Install & AMC
Our service network installs and maintains sectional and overhead doors nationwide, with Annual Maintenance Contracts carrying a 4-hour emergency response SLA. One vendor for manufacture, installation, spares and service — no middlemen.
Types of Sectional & Overhead Doors We Manufacture
Five sectional and overhead door configurations covering every industrial and commercial opening. Each is built to order — tell us your clear width, height, headroom and insulation need and we engineer to match.
Most Popular
Industrial Sectional Door
The workhorse industrial sectional door for factory and warehouse bays. Hinged panels travel up and overhead on galvanized tracks, freeing the full opening and the floor in front. Spring-balanced with chain-hoist or motorized operator and built up to 8m wide.
View details
Thermal
Insulated Sectional Door
An insulated sectional door with 40mm double-skin PU-foam panels for a low U-value, keeping cold stores, paint booths and air-conditioned plants thermally sealed. Perimeter EPDM gaskets stop draughts and dust while the door is closed.
View details
Loading Bay
Dock Sectional Door
A dock sectional door sized for loading bays and paired with dock levelers and shelters. The overhead door seals the bay between dispatches and lifts clear for forklift access, making it the secure weather barrier at every truck dock.
View details
Daylight
Glazed Sectional Door
A glazed sectional door with full-vision aluminium panels and double-glazed inserts that flood the bay with daylight while keeping it secure. Ideal for showrooms, service workshops and front-of-house overhead door openings needing visibility and kerb appeal.
View details
Commercial

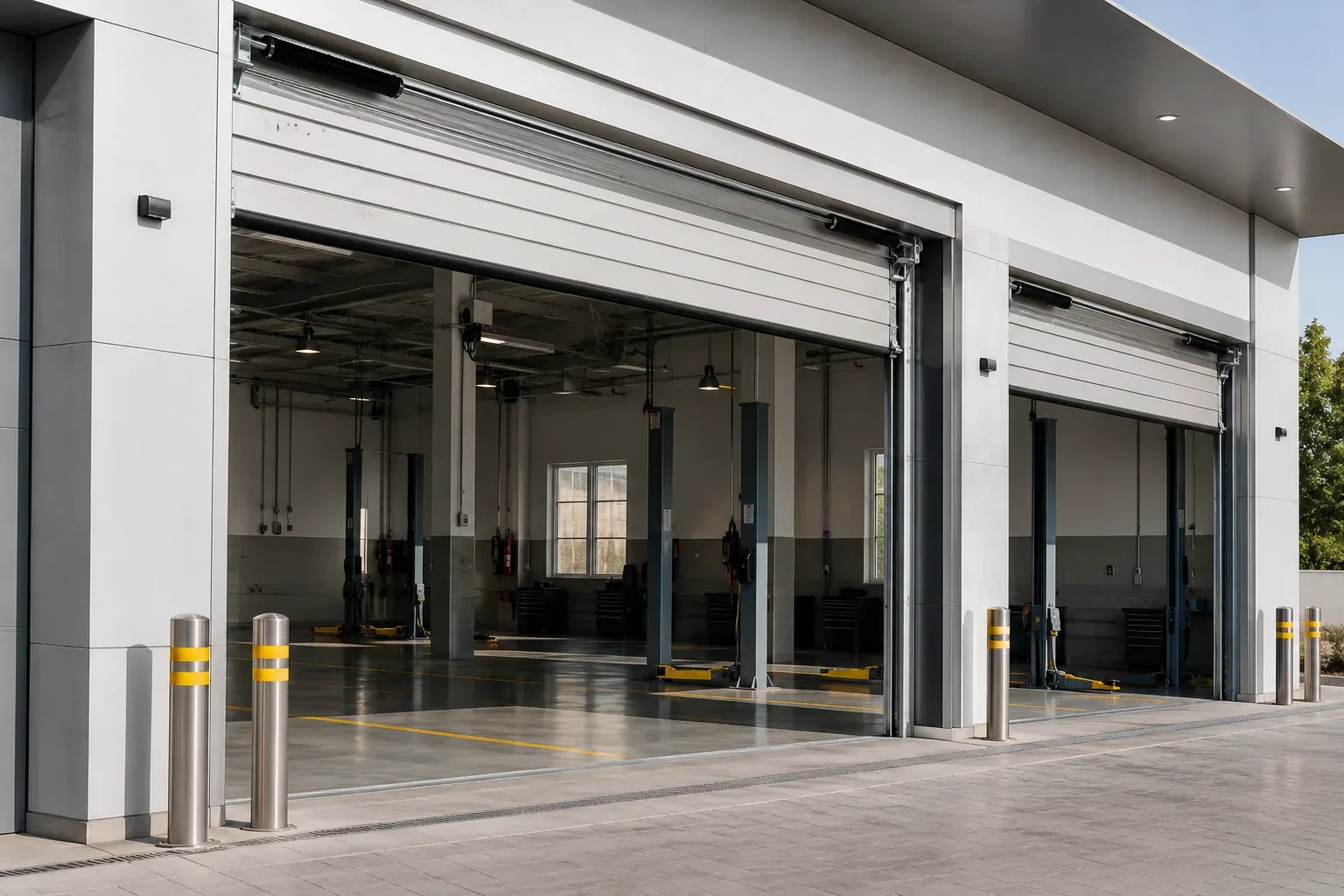

Commercial Overhead Door
A commercial overhead door for retail backs-of-house, service stations and small workshops — the secure, motorized alternative to a manual garage door. Compact headroom tracks, vision windows and a wicket door make it equally at home on commercial facades.
View detailsWhere Sectional & Overhead Doors Are Used
Yadav Entrance Automation sectional and overhead doors are deployed across India's warehousing, manufacturing, cold-chain and automotive sectors — each with specific size, insulation and duty-cycle requirements our engineers address at specification stage.
Dock sectional doors sealing loading bays between dispatches, paired with dock levelers for secure, weather-tight truck access
Insulated sectional doors with 40mm PU panels holding temperature at cold stores and refrigerated dispatch areas
Industrial sectional doors on factory bays freeing floor and headroom while securing the plant against weather and intrusion
Commercial overhead doors and glazed sectional doors for service workshops, paint booths and vehicle wash bays
Commercial overhead doors at backs-of-house and stockrooms, secure motorized upgrades to manual garage doors
Smooth, washdown-capable insulated sectional doors for GMP areas needing clean, sealed and contamination-free openings
Glazed sectional doors flooding showrooms and front-of-house bays with daylight while keeping the opening secure
High-lift overhead doors clearing tall vehicles and overhead cranes at bus depots, fleet garages and MRO hangars
Full Sectional & Overhead Door Specifications
Complete engineering data for the Yadav Entrance Automation sectional overhead door range. All models are built to order — clear width, height, insulation and track geometry are configured to your opening.
| Parameter | Specification |
|---|---|
| Max Clear Width | Up to 8,000mm (8m) — custom on request |
| Max Clear Height | Up to 7,000mm (7m) — custom on request |
| Panel Construction | 40mm double-skin sandwich panel, CFC-free PU foam core |
| Insulation (U-value) | Approx. 0.5–1.0 W/m²K (40mm insulated panel) |
| Track Type | Standard-lift / high-lift / vertical-lift (per headroom) |
| Operating Mechanism | Spring-balanced torsion springs; chain-hoist or motorized operator |
| Operator | 0.55–1.5 kW tubular / side-mount motor; 230V 1-ph or 415V 3-ph |
| Panel Finish | Hot-dip galvanized steel skin + polyester powder coat (RAL on request) |
| Sealing | EPDM perimeter, bottom and inter-panel gaskets |
| Vision & Access | Optional vision windows, ventilation grilles, integral wicket door |
| Safety Devices | Photocells, anti-drop device, finger-protect panels, closing-edge sensor |
| Control | Push-button + e-stop; remote, key-switch or sensor activation optional |
| Certifications | ISO 9001:2015, CE Marked (EU Construction Products / Machinery) |
| Warranty | 2 years operator & hardware, 5 years panels & frame |
Sectional & Overhead Door Variant Comparison
| Door Type | Panel / Insulation | Insulated Sectional ⭐ Most Popular | Max Size | Best Use |
|---|---|---|---|---|
| Commercial Overhead Door | 40mm single-skin / steel | Motorized | 4m × 4m | Retail, workshops, garage door upgrade |
| Industrial Sectional Door | 40mm double-skin | Standard / high-lift | 6m × 6m | Factory & warehouse bays |
| Insulated Sectional Door | 40mm PU foam, low U-value | Thermal-sealed | 7m × 6m | Cold stores, AC plants |
| Glazed Sectional Door | Aluminium, double-glazed | Full-vision | 5m × 5m | Showrooms, service bays |
| Dock Sectional Door (Heavy-Duty) | 40mm double-skin + seals | Leveler-integrated | 8m × 7m | Loading docks, dispatch |
Certified to International Standards
Our sectional and overhead door range carries the certifications required by India's largest 3PL operators, multinational manufacturers and government procurement bodies.
9001
Quality management certification covering design, manufacture, installation and after-sales service of all sectional and overhead doors.
European conformity for industrial doors — required by multinational clients and confirming safety and performance compliance.
2062
Structural steel to Indian Standard IS 2062 Grade B for tracks, frames and hardware — certified load and fatigue performance.
2016
Installation methodology compliant with the National Building Code of India 2016 for industrial occupancy and safety clearance.
in India
100% manufactured at our registered Indian facilities — qualifies for government procurement preference and PSU tenders.
Sectional Overhead Door Design + Quote in 24 Hours
No generic quotes, no run-around.
In-House Manufacturing
Every sectional and overhead door manufactured under ISO 9001 quality control — no imported products, no middlemen.
Free Site Survey & Opening Drawing
Our engineers measure your opening, lintel and headroom and supply a full installation drawing for your contractor — at no charge.
AMC Available Nationwide
Annual Maintenance Contracts covering all sectional doors, overhead doors and dock equipment with a 4-hour emergency response SLA.
Choosing sectional overhead doors: what actually decides the specification
A garage door is an insulated panel door that lifts and stores flat under the roof. The right one is decided by the opening and how it is used, not by the catalogue. These are the things worth settling before anyone quotes.
What to measure
- Clear opening width and height — the daylight opening the vehicle or person passes through, not the hole in the wall.
- Headroom above the opening — decides which products are possible at all.
- Side-room, both sides — guides, tracks and motors live here, and it is rarely equal on both sides.
- Power at the position — 230V single-phase or 415V three-phase, 50 Hz.
- Cycles per shift — the most under-specified figure on a typical enquiry.
- Environment — temperature, dust, washdown, coastal air or a hygiene requirement.
The full sectional overhead doors range
- Industrial Sectional Door — The workhorse industrial sectional door for factory and warehouse bays.
- Insulated Sectional Door — An insulated sectional door with 40mm double-skin PU-foam panels for a low U-value, keeping cold stores, paint booths and air-conditioned plants thermally sealed.
- Dock Sectional Door — A dock sectional door sized for loading bays and paired with dock levelers and shelters.
- Glazed Sectional Door — A glazed sectional door with full-vision aluminium panels and double-glazed inserts that flood the bay with daylight while keeping it secure.
- Commercial Overhead Door — A commercial overhead door for retail backs-of-house, service stations and small workshops — the secure, motorized alternative to a manual garage door.
Where sectional overhead doors are typically installed
We build sectional overhead doors for loading bays, workshops and temperature-controlled areas where floor space is tight.
Sectors we supply
- Warehousing and logistics — distribution centres, 3PL facilities and dispatch docks.
- Cold chain — cold stores, freezer rooms and temperature-controlled dispatch.
- Automotive and engineering — component plants, press shops and assembly lines.
- Pharmaceutical and clean manufacturing — controlled and hygiene-critical areas.
- Infrastructure and construction — plant perimeters, site structures and civil scopes.
- Commercial and institutional — offices, campuses, hospitals and parking facilities.
What drives the cost
We quote per project rather than publishing prices. The figure moves with the opening size, panel insulation, the track configuration and whether it is motorised. Send the measurements above and an engineer returns a drawing and a written quotation. Talk to an engineer →
Standards, materials and what we certify
- ISO 9001 — our quality management system is certified to it.
- CE marking on applicable products — a manufacturer's declaration of conformity, not a quality grade.
- IS 2062 structural steel for fabrication, gates and structures.
- IS 6248 for metal rolling shutters.
- EN 1634 as the reference for fire-resistance testing.
- Make in India and GST registered — relevant to government and PSU procurement.
- 230V single-phase / 415V three-phase, 50 Hz — standard Indian industrial mains.
Reference sources: European Commission, CE marking · Bureau of Indian Standards
From enquiry to handover
- Enquiry. Opening sizes, site location and application. An engineer picks it up.
- Site survey. We measure the clear opening, headroom, side-room and power position.
- Drawing and quotation. Equipment, safety schedule, electrical requirement and a written delivery date.
- Manufacture at Neemrana. Built to the approved drawing and the measured opening.
- Installation and commissioning. Fitted and tested by our own team through full travel with safety devices live.
- Handover, spares and AMC. Operating instructions on site, then service through the nearest team.
Explore the full product range, the sectors we serve, our delivered installations, or the areas we cover.
Sectional Overhead Doors — frequently asked questions
Who manufactures sectional overhead doors in India?
Yadav Entrance Automation Pvt. Ltd. manufactures sectional overhead doors in India, at our plant at Neemrana, Rajasthan on the Delhi-Jaipur NH-48 corridor. We have been building entrance automation equipment since 2011, with more than 500 installations across over 50 cities. Equipment is made to the measured opening rather than to a catalogue size, then installed and commissioned by our own engineers.
What is a garage door?
A garage door is an insulated panel door that lifts and stores flat under the roof. It is specified against the opening it serves and the way that opening is used, so two openings of the same width can need different equipment. We build sectional overhead doors for loading bays, workshops and temperature-controlled areas where floor space is tight.
What does a garage door cost?
We quote per project rather than publishing a price, because the figure moves with the opening size, panel insulation, the track configuration and whether it is motorised. Send the opening dimensions, the site location and how the opening is used, and an engineer will come back with a drawing and a written quotation. That is faster than a list price that would need revising once the site is measured.
Do you supply sectional overhead doors near me?
We install and service across North and West India, with the plant at Neemrana and teams in Delhi NCR and Gujarat. Installations to date cover more than 50 cities, concentrated in the Delhi-Jaipur corridor, Haryana, Rajasthan and Gujarat. Tell us the site location with your enquiry and we will confirm coverage before quoting.
Can sectional overhead doors be motorised or automated?
Yes, where the product supports it. Motorised operation is specified against the weight being moved and the number of cycles per day, not simply added on. The drive, the control panel and the safety devices are listed on the technical drawing you approve before manufacture, so nothing about the automation is a surprise on site.
What power supply is needed?
Standard Indian industrial mains: 230V single-phase or 415V three-phase at 50 Hz. Which one applies depends on the product, the size of the opening and the duty cycle. The requirement is confirmed on the approved drawing so your electrical contractor can position the supply and isolator before delivery.
What measurements do you need to quote for sectional overhead doors?
Clear opening width and height first — the daylight opening, not the wall opening. Then the headroom above the opening and the free side-room each side. Add the power available at the position, how many openings, and roughly how often each is used in a shift. Those figures let an engineer rule out the wrong products before visiting.
Do you handle installation, or only supply?
We manufacture, install and commission with our own team, and we do not sub-contract installation of our own equipment. How well a unit is fitted to its opening decides how long it lasts, so it is not work we hand off. Handover includes operating instructions on site.
Do you provide service, spares and AMC?
Yes. We supply genuine spares and offer Annual Maintenance Contracts for the equipment we manufacture. On high-cycle equipment maintenance matters more than most buyers expect, because wear tracks cycles rather than calendar age. Tell us the site and the equipment and we will route it to the nearest service team.
Which standards and certifications apply?
Our manufacturing is certified to ISO 9001 and applicable products are CE marked. Structural steelwork commonly references IS 2062 and rolling shutters IS 6248, both published by the Bureau of Indian Standards; fire-resistance testing is commonly referenced to EN 1634. If your specification names a standard, send the clause with the enquiry so it is written into the drawing.
Can you make sectional overhead doors to a non-standard size?
Yes, and most industrial openings are non-standard. Equipment is built to the measured opening rather than to a catalogue size. We take the clear width, clear height, headroom and side-room on site, then confirm the achievable size on the drawing before manufacture begins.
How long does manufacture and delivery take?
It depends on the product and whether the opening is standard or bespoke, and it moves with material availability and the current order book. Rather than quote a general figure that may not hold, we confirm a delivery date in writing with the quotation.
Do you work with contractors, consultants and PSUs?
Yes. We supply end users directly and also work as a vendor to main contractors, PMCs and design consultants. We are GST registered and manufacture under Make in India, which matters for government and PSU procurement. For tendered work we can provide drawings, product data and the compliance documentation the specification calls for.
What safety devices are included?
For powered equipment, typically safety photocells across the opening, a safety edge where applicable, limit switches at both travel ends, and a manual release for use during a power cut. Vehicle equipment can add loop detectors. The exact schedule is listed on the drawing you approve, so check that rather than assuming a standard set.
How do I get a quote for sectional overhead doors?
Use the enquiry form on this page and the details reach our team directly, or call and send a WhatsApp message on +91 95492 20707, or email [email protected]. If you already hold drawings or a specification, say so and an engineer will respond rather than a generic reply.
