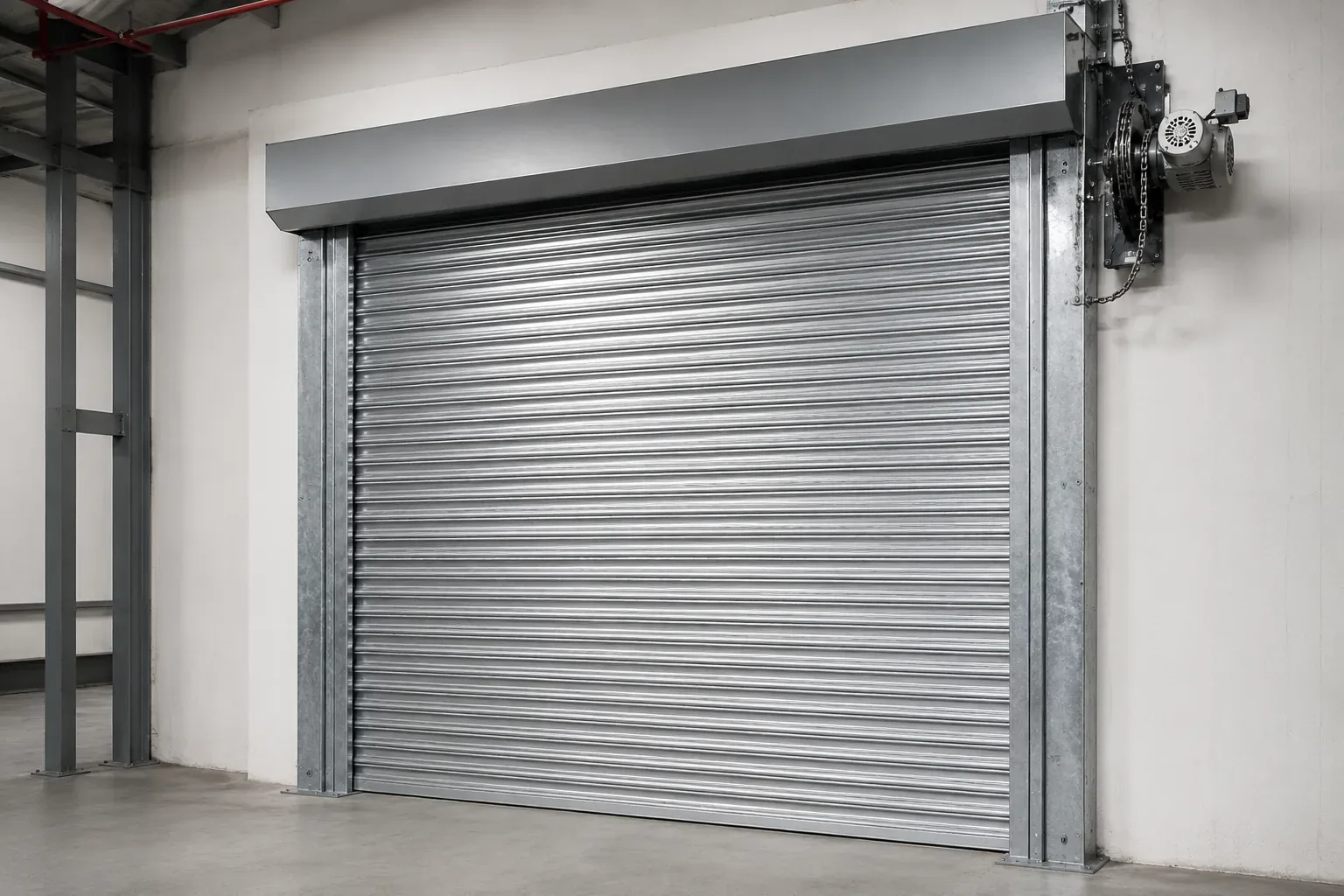

Fire Rated Rolling Shutter
A fire rated rolling shutter that resists fire spread for 60–120 minutes, compartmentalising openings in warehouses, basements and high-rise buildings. Auto-closes on fire alarm signal and meets NBC 2016 and IS standards.
| Rating | 60–120 min |
| Trigger | fire alarm |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
ISO 9001 · CE marked · Make-in-India · Manufacturing since 2011 · 500+ installations across 50+ cities. See the full Rolling Shutter range and how we build it, or read more about our plant and capabilities.
Fire Rated Rolling Shutter: Technical Specifications
Complete engineering data for the rolling shutter range. Specifications listed are for standard Motorized Aluminium, other variants differ in material and drive parameters.
| Parameter | Specification |
|---|---|
| Lath Profile Height | 77mm standard / 92mm heavy-duty |
| Lath Thickness: Steel | 0.8mm (economy) / 1.2mm (standard) / 1.6mm (heavy) |
| Lath Thickness: Aluminium | 1.2mm (standard) / 1.5mm / 2.0mm (heavy) |
| Maximum Single Width | 10,000 mm (single curtain, no intermediate post) |
| Maximum Width (Multi-Curtain) | 18,000 mm (with flush intermediate guide post) |
| Maximum Height | 8,000 mm |
| Drive: Manual | Gear handle (single gear) or push-up (light duty) |
| Drive: Electric | Single-phase 230V or three-phase 415V tubular motor |
| Motor Power Range | 0.25 kW (up to 3m × 3m) to 2.2 kW (large bays) |
| Operating Speed: Motorized | 6–10 m/min (adjustable via limit switches) |
| Daily Cycle Rating | 20–50 cycles per day (standard); 50+ cycles heavy duty |
| Control Options | Push button (standard) / RF remote / Loop detector / Timer / GSM |
| Wind Load: Standard | 55 km/h (MS standard) / 80 km/h (aluminium) / 100 km/h (reinforced) |
| Bottom Beam | Extruded aluminium with EPDM sealing strip; galvanized steel option |
| Side Guide Channels | 1.5mm / 2mm / 3mm rolled steel or aluminium |
| Finish: Steel | Hot-dip galvanized (85 micron) or powder coat (60–80 micron) |
| Finish: Aluminium | Mill finish / anodized (20 micron) / powder coat (custom RAL) |
| Spring Counterbalance | Pre-tensioned torsion spring; Helical spring on manual large bays |
| Drum Barrel | 76mm dia. (light) / 102mm dia. (standard) / 152mm dia. (heavy) |
| Shaft | Solid 25mm / 32mm / 50mm hex steel shaft depending on size |
| IP Rating: Motor | IP44 standard / IP55 optional (outdoor / washdown) |
| Certifications | ISO 9001:2015; BIS Mark (selected MS models); IS 6248 compliant |
| Warranty | 2 years motor, 3 years structure, 1 year surface finish |
What the Fire Rated Rolling Shutter is, and who it suits
The Fire Rated Rolling Shutter is a type of rolling shutters used across warehouses, factories, cold stores and commercial buildings. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Rolling Shutters range, the sectors we serve, or every product line.
- Warehouse and distribution-centre openings
- Factory and production-floor entrances
- Cold stores and temperature-controlled rooms
- Clean rooms and pharmaceutical areas
- Loading bays and dispatch docks
- Commercial building entrances
- Clear opening width and height (the daylight opening, not the wall opening)
- Lintel / headroom above the opening
- Side-room free each side for guides and motor
- Power available at the opening: 230V single-phase or 415V three-phase, 50 Hz
- Approximate cycles per day
- Any fire-rating, temperature or hygiene requirement
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Fire Rated Rolling Shutter: Engineered & Supported Across India
The Fire Rated Rolling Shutter is manufactured and supported entirely within India. As an Indian manufacturer of rolling shutters, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian warehouses, factories, cold stores and commercial buildings, variable power supply, high ambient temperatures, dust and monsoon humidity, and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities: qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor, Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi, and the Gujarat industrial belt, Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Where the Fire Rated Rolling Shutter fits
A fire rated shutter is not chosen the way the other variants are. It appears on a drawing because a fire strategy requires a rated barrier at that opening: between a warehouse and a packing hall, across a basement car park, between production and storage. Its job is to hold back fire spread for the rated period so that compartmentation works and people have time to leave.
Fire Rated Rolling Shutter vs the alternatives
It is not really an alternative to the other shutters, and should not be substituted for one on cost grounds or specified in place of one for convenience. The functional difference is that it must close when the alarm sounds, so it is interfaced to the detection system and descends under control rather than simply being driven shut. That interface, and the testing regime that follows it, are part of the product rather than accessories to it.
Specifying a Fire Rated Rolling Shutter
Start with your fire consultant or the approving authority, not with us: the required rating and the position of the barrier come from the building's fire strategy. Then tell us how the shutter is to be triggered and what holds it open, whether people need to escape through or beside the opening, and what power arrangement is available, since a hold-open device fails safe on loss of supply.
Fire Rated Rolling Shutter: Frequently Asked Questions
Who decides what fire rating the shutter needs?
Does a fire rated shutter close by itself?
How do people get out if the shutter has closed?
Does it need regular testing?
Can an existing shutter be upgraded to a fire rating?
Which regions do you install and service in?
Do you provide installation, spares and AMC?
Is the Fire Rated Rolling Shutter certified?
Built Accurately to Your Opening
Manufactured in India: Zero Import Dependency
Our CNC roll-forming lines run all material grades in-house. No delays from import disruptions.
Free Measurement & Site Assessment
We send a technician to measure your openings and check structural suitability, free of charge anywhere in our service areas.
Turnkey Supply & Install: One Invoice
Material, motor, civil work, wiring, and commissioning all covered under a single project invoice. No sub-contractor surprises.
