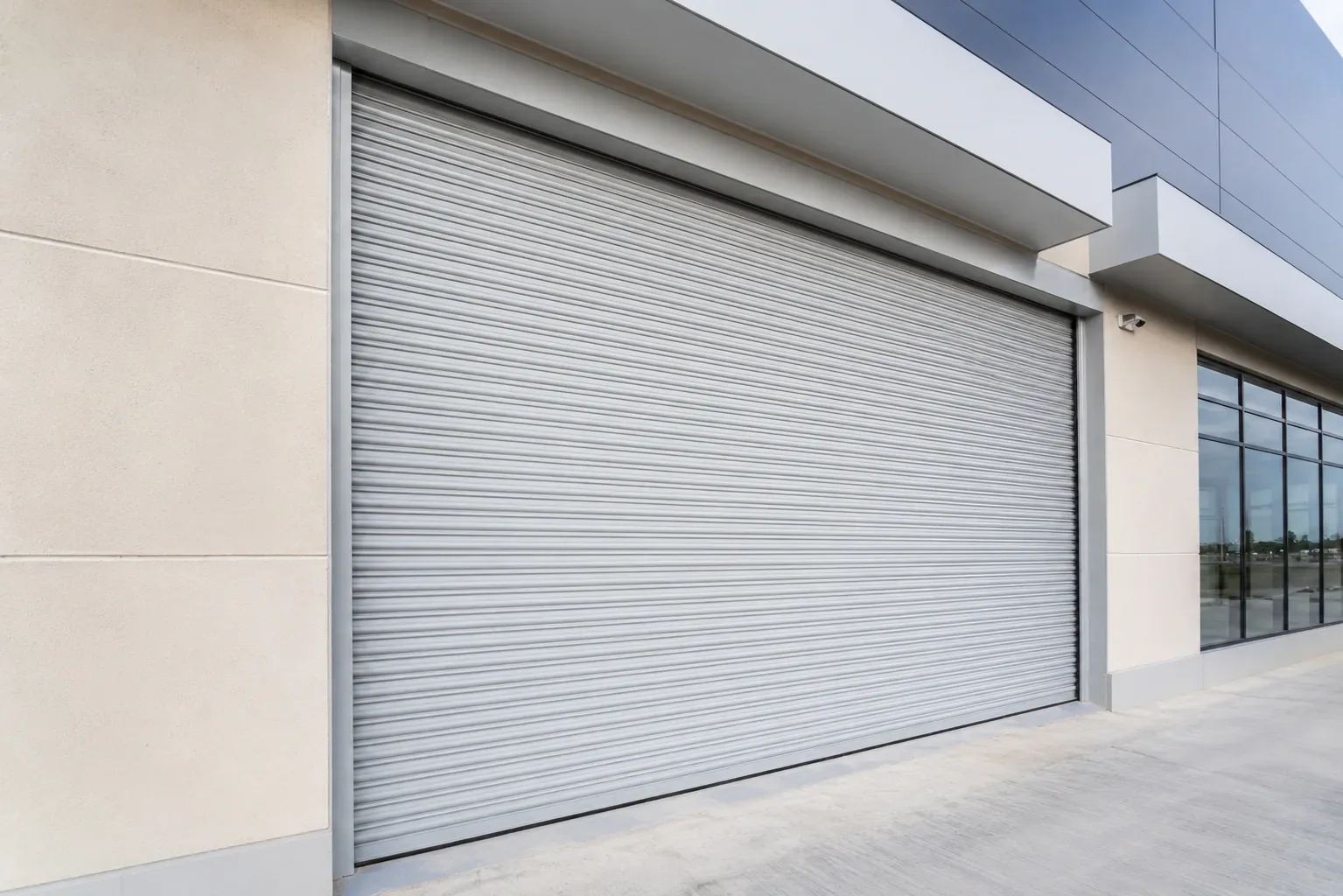

Aluminium Rolling Shutter
An aluminium rolling shutter with extruded 6063-T5 laths, lightweight, corrosion-free and available anodized or in 200+ powder-coat RAL colours. The premium choice for commercial shopfronts, offices and coastal installations.
| Lath | 6063-T5 alloy |
| Finish | anodized / RAL |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
ISO 9001 · CE marked · Make-in-India · Manufacturing since 2011 · 500+ installations across 50+ cities. See the full Rolling Shutter range and how we build it, or read more about our plant and capabilities.
Aluminium Rolling Shutter: Technical Specifications
Complete engineering data for the rolling shutter range. Specifications listed are for standard Motorized Aluminium, other variants differ in material and drive parameters.
| Parameter | Specification |
|---|---|
| Lath Profile Height | 77mm standard / 92mm heavy-duty |
| Lath Thickness: Steel | 0.8mm (economy) / 1.2mm (standard) / 1.6mm (heavy) |
| Lath Thickness: Aluminium | 1.2mm (standard) / 1.5mm / 2.0mm (heavy) |
| Maximum Single Width | 10,000 mm (single curtain, no intermediate post) |
| Maximum Width (Multi-Curtain) | 18,000 mm (with flush intermediate guide post) |
| Maximum Height | 8,000 mm |
| Drive: Manual | Gear handle (single gear) or push-up (light duty) |
| Drive: Electric | Single-phase 230V or three-phase 415V tubular motor |
| Motor Power Range | 0.25 kW (up to 3m × 3m) to 2.2 kW (large bays) |
| Operating Speed: Motorized | 6–10 m/min (adjustable via limit switches) |
| Daily Cycle Rating | 20–50 cycles per day (standard); 50+ cycles heavy duty |
| Control Options | Push button (standard) / RF remote / Loop detector / Timer / GSM |
| Wind Load: Standard | 55 km/h (MS standard) / 80 km/h (aluminium) / 100 km/h (reinforced) |
| Bottom Beam | Extruded aluminium with EPDM sealing strip; galvanized steel option |
| Side Guide Channels | 1.5mm / 2mm / 3mm rolled steel or aluminium |
| Finish: Steel | Hot-dip galvanized (85 micron) or powder coat (60–80 micron) |
| Finish: Aluminium | Mill finish / anodized (20 micron) / powder coat (custom RAL) |
| Spring Counterbalance | Pre-tensioned torsion spring; Helical spring on manual large bays |
| Drum Barrel | 76mm dia. (light) / 102mm dia. (standard) / 152mm dia. (heavy) |
| Shaft | Solid 25mm / 32mm / 50mm hex steel shaft depending on size |
| IP Rating: Motor | IP44 standard / IP55 optional (outdoor / washdown) |
| Certifications | ISO 9001:2015; BIS Mark (selected MS models); IS 6248 compliant |
| Warranty | 2 years motor, 3 years structure, 1 year surface finish |
What the Aluminium Rolling Shutter is, and who it suits
The Aluminium Rolling Shutter is a type of rolling shutters used across warehouses, factories, cold stores and commercial buildings. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Rolling Shutters range, the sectors we serve, or every product line.
- Warehouse and distribution-centre openings
- Factory and production-floor entrances
- Cold stores and temperature-controlled rooms
- Clean rooms and pharmaceutical areas
- Loading bays and dispatch docks
- Commercial building entrances
- Clear opening width and height (the daylight opening, not the wall opening)
- Lintel / headroom above the opening
- Side-room free each side for guides and motor
- Power available at the opening: 230V single-phase or 415V three-phase, 50 Hz
- Approximate cycles per day
- Any fire-rating, temperature or hygiene requirement
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Aluminium Rolling Shutter: Engineered & Supported Across India
The Aluminium Rolling Shutter is manufactured and supported entirely within India. As an Indian manufacturer of rolling shutters, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian warehouses, factories, cold stores and commercial buildings, variable power supply, high ambient temperatures, dust and monsoon humidity, and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities: qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor, Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi, and the Gujarat industrial belt, Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Where the Aluminium Rolling Shutter fits
Extruded 6063-T5 aluminium suits openings where weight and appearance matter more than brute impact strength: shopfronts, showrooms, office entrances, and buildings in coastal or humid locations. A lighter curtain is easier to move, lets a smaller motor do the work, and stays practical to operate by hand at sizes where a steel curtain would not.
Aluminium Rolling Shutter vs the alternatives
Against steel, aluminium's advantages are that it does not corrode and that it is markedly lighter. Its disadvantage is real and worth stating plainly: it is softer, so it dents where steel would shrug off the same knock, which makes it the wrong choice for a bay with forklift traffic. Against galvanized steel, aluminium never rusts even at a cut edge, but galvanized steel absorbs impact far better. Anodised or powder-coated finishes are available across more than 200 RAL colours.
Specifying an Aluminium Rolling Shutter
Tell us whether the finish should be anodised or powder-coated to a RAL colour, and give the colour reference if you are matching a brand or a facade. Describe the exposure, since coastal air is exactly where aluminium earns its place. Most importantly, be candid about traffic: if anything harder than a hand trolley passes through the opening regularly, we will suggest a steel curtain instead and explain why.
Aluminium Rolling Shutter: Frequently Asked Questions
Does an aluminium rolling shutter dent easily?
Anodised or powder-coated: which should I choose?
Is aluminium suitable for an industrial bay?
Does an aluminium shutter need repainting over time?
Does the lighter curtain mean a smaller motor?
Which regions do you install and service in?
Do you provide installation, spares and AMC?
Is the Aluminium Rolling Shutter certified?
