1m – 6m Boom
Click to enlarge
Automatic Boom Barriers & Barrier Gates
Yadav Entrance Automation is a boom barrier manufacturer in India, building automatic, toll plaza, parking, RFID and high speed barrier gates with boom lengths from 1m to 6m and opening times from 0.6s to 6s. Every automatic boom barrier is engineered for controlled vehicle access — toll lanes, gated communities, parking entries and industrial gates — with 24V DC brushless drives, loop detectors and manual release on power failure as standard.
| Boom Length | 1m / 2m / 3m / 4.5m / 6m (straight, octagonal or folding) |
| Opening Time | 0.6s – 6s (high-speed 0.6–1.5s) |
| Motor | 24V DC brushless or AC; high-frequency to continuous duty |
| Integration | RFID, loop detector, ANPR, photocell; IP55 / IP65 cabinet |
Automatic Boom Barriers Built for Indian Sites
Six engineering advantages that make Yadav Entrance Automation a trusted boom barrier supplier for toll plazas, gated communities, parking lots and industrial gates across India.
High-Speed 0.6s Opening
Our high speed boom barrier opens a 3m arm in as little as 0.6 seconds — the throughput needed for toll plaza lanes and high-traffic entries. Slower 3–6 second models suit gentle parking and community gates where smoothness matters more than speed.
Fail-Safe by Design
Every barrier gate ships with a manual release for power failure, anti-crash detection that reverses the boom on obstruction, and photocell safety beams. Loop detectors prevent the arm dropping on a vehicle still under it — protecting people and bodywork.
Brushless Motor, 5M-Cycle MCBF
A 24V DC brushless drive delivers quiet, low-maintenance operation rated to an MCBF of up to 5 million cycles. Heavy AC-drive options carry continuous duty for toll plaza boom barrier lanes that cycle thousands of times a day.
RFID, ANPR & Loop Ready
Out-of-the-box integration with RFID readers, ANPR cameras, loop detectors and photocells. An RFID boom barrier lifts automatically for tagged vehicles, while ANPR enables ticketless, plate-based access for parking and society gates.
IP55 / IP65 Weatherproof Cabinet
A powder-coated steel cabinet rated IP55 or IP65 keeps the control board and motor protected from rain, dust and heat at outdoor toll lanes and entry gates. The aluminium octagonal boom carries reflective strips for night-time visibility.
Pan-India Install & AMC
As a boom barrier dealer and manufacturer in one, our service network installs and maintains barriers nationwide, with Annual Maintenance Contracts carrying a 4-hour emergency response SLA. One vendor for manufacture, install, spares and service.
Types of Boom Barriers We Manufacture
Five boom barrier configurations covering every vehicle-access application. Each is built to order — tell us your lane width, traffic volume and integration needs and we engineer the right barrier gate to match.
Most Popular
Automatic Boom Barrier
The workhorse automatic boom barrier for controlled vehicle entry at offices, factories, gated communities and commercial complexes. A 24V DC brushless drive raises a 1m–4.5m arm on command from a remote, push button, RFID or access controller, with auto-close and obstruction reverse as standard.
View details
High Traffic
Toll Plaza Boom Barrier
A toll plaza boom barrier engineered for continuous, high-frequency duty on highway and expressway lanes. Heavy AC drive, reinforced gearbox and an MCBF rating to 5 million cycles keep lanes moving 24×7, integrating directly with FASTag readers, ANPR and lane controllers.
View details
Access Control
Parking Boom Barrier
A parking boom barrier for malls, hospitals, airports and paid lots, pairing with ticket dispensers, UHF readers and payment systems. Smooth 3–6 second operation, loop-detector safety and an optional LED-edge boom make it the ideal controlled entry and exit for organised parking.
View details
Touchless
RFID Boom Barrier
An RFID boom barrier that lifts automatically for tagged vehicles — no card, no stopping. Long-range UHF RFID readers identify residents, staff and fleet vehicles for hands-free access at society and corporate gates, with full event logging for audit and security.
View details
0.6s Opening

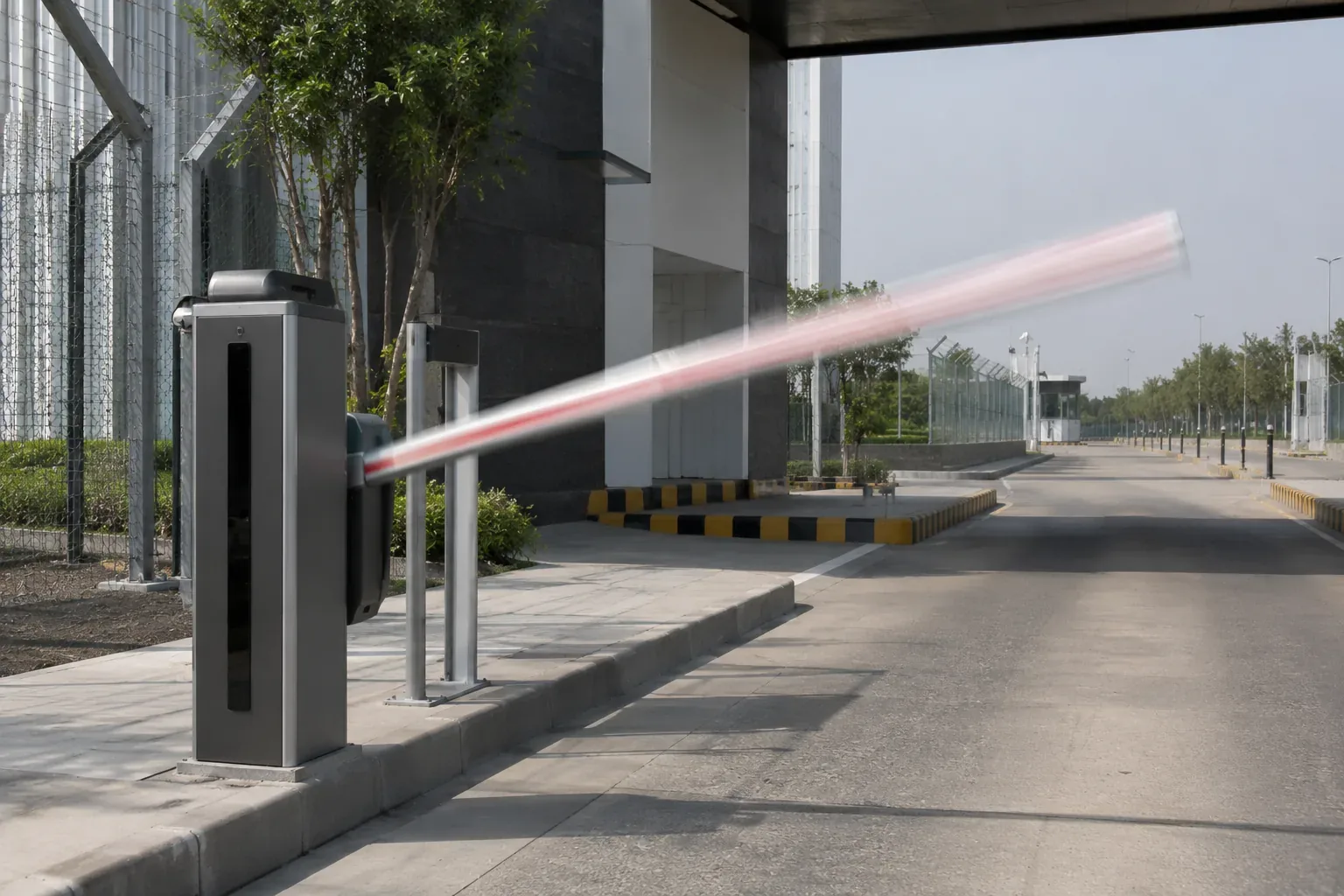

High-Speed Boom Barrier
A high speed boom barrier that clears a 3m arm in 0.6–1.5 seconds for the fastest possible throughput on toll lanes and busy entries. The brushless servo drive and balanced octagonal boom deliver rapid, precise motion cycle after cycle without sacrificing safety detection.
View detailsWhere Boom Barriers Are Used
Yadav Entrance Automation boom barriers are deployed across India's highways, real estate, parking, industrial and institutional sectors — each with specific traffic, speed and integration requirements our engineers address at specification stage.
High speed boom barriers on FASTag and ANPR lanes for continuous, 24×7 expressway and highway toll collection
Automatic boom barriers at office gates integrated with RFID and access control for staff and visitor vehicles
RFID boom barriers for hands-free resident entry with visitor management and full event logging at society gates
Parking boom barriers paired with ticket dispensers, UHF readers and payment systems for organised lots
Barrier gates for terminal access, taxi lanes and restricted zones with high-throughput, audited entry control
Industrial boom barriers controlling truck and forklift movement at plant and warehouse gate entries
Boom barriers managing emergency, staff and visitor lanes at hospitals, campuses and government buildings
Smooth, low-noise boom barriers for hotel forecourts and retail entries where guest experience matters
Full Boom Barrier Specifications
Complete engineering data for the Yadav Entrance Automation boom barrier range. All models are built to order — boom length, opening speed and integration are configured to your lane and traffic profile.
| Parameter | Specification |
|---|---|
| Boom Length | 1m / 2m / 3m / 4.5m / 6m (straight, aluminium octagonal or folding arm) |
| Opening Time | 0.6s–1.5s (high-speed) / 1.5s–6s (standard), boom-length dependent |
| Motor | 24V DC brushless (low-maintenance) or AC drive (heavy / continuous duty) |
| Duty Cycle | High-frequency to continuous (24×7) for toll plaza configurations |
| MCBF (Mean Cycles Between Failure) | Up to 5,000,000 cycles |
| Boom Material | Aluminium octagonal section with reflective strips; rubber edge optional |
| Cabinet Protection | IP55 / IP65 powder-coated steel housing for outdoor use |
| Integration | RFID / UHF, loop detector, ANPR, photocell, ticket dispenser, access controller |
| Control & Safety | Remote / push button / RFID; obstruction reverse, loop safety, photocell beams |
| Manual Operation | Manual release / hand crank to raise boom on power failure |
| Power Supply | 230V single-phase, 50Hz; battery backup / solar option available |
| Certifications | ISO 9001:2015, CE Marked (EU Machinery Directive 2006/42/EC) |
| Warranty | 1 year drive & control board, 2 years cabinet structure |
Boom Barrier Variant Comparison
| Configuration | Boom Length | Opening Speed ⭐ Most Popular | Duty / Use | Control / Integration |
|---|---|---|---|---|
| Automatic Boom Barrier | 1m–4.5m | 1.5s–6s | High-frequency | Remote / RFID / push button |
| Parking Boom Barrier | 2m–4.5m | 3s–6s | High-frequency | Ticket / UHF / loop detector |
| RFID Boom Barrier | 2m–4.5m | 1.5s–4s | High-frequency | Long-range UHF RFID + ANPR |
| High-Speed Boom Barrier | up to 3m | 0.6s–1.5s | Continuous | Servo drive / lane controller |
| Toll Plaza Boom Barrier | 3m–6m | 0.9s–1.8s | Continuous 24×7 | FASTag / ANPR / lane controller |
Certified to International Standards
Our boom barrier range carries the certifications required by India's highway authorities, large parking operators, multinational clients and government procurement bodies.
9001
Quality management certification covering design, manufacture, installation and after-sales service of all boom barriers and barrier gates.
European conformity per EU Machinery Directive 2006/42/EC — required by multinational clients and confirming safety compliance.
65
Cabinet ingress protection certified for outdoor toll and entry lanes, sealing electronics against rain, dust and heat.
2016
Installation methodology compliant with the National Building Code of India 2016 for traffic, access and safety clearance.
in India
100% manufactured at our registered Indian facilities — qualifies for government procurement preference and PSU tenders.
Boom Barrier Design + Quote in 24 Hours
No generic quotes, no run-around.
In-House Manufacturing
Every boom barrier manufactured under ISO 9001 quality control — no traded products, no middlemen.
Free Site Survey & Layout
Our engineers survey your lane and supply a full installation layout for your contractor — at no charge.
AMC Available Nationwide
Annual Maintenance Contracts covering all boom barriers and access-control equipment with a 4-hour emergency response SLA.
Choosing boom barriers: what actually decides the specification
A boom barrier is a motorised arm that controls a vehicle lane. The right one is decided by the opening and how it is used, not by the catalogue. These are the things worth settling before anyone quotes.
What to measure
- Clear opening width and height — the daylight opening the vehicle or person passes through, not the hole in the wall.
- Headroom above the opening — decides which products are possible at all.
- Side-room, both sides — guides, tracks and motors live here, and it is rarely equal on both sides.
- Power at the position — 230V single-phase or 415V three-phase, 50 Hz.
- Cycles per shift — the most under-specified figure on a typical enquiry.
- Environment — temperature, dust, washdown, coastal air or a hygiene requirement.
The full boom barriers range
- Automatic Boom Barrier — The workhorse automatic boom barrier for controlled vehicle entry at offices, factories, gated communities and commercial complexes.
- Toll Plaza Boom Barrier — A toll plaza boom barrier engineered for continuous, high-frequency duty on highway and expressway lanes.
- Parking Boom Barrier — A parking boom barrier for malls, hospitals, airports and paid lots, pairing with ticket dispensers, UHF readers and payment systems.
- RFID Boom Barrier — An RFID boom barrier that lifts automatically for tagged vehicles — no card, no stopping.
- High-Speed Boom Barrier — A high speed boom barrier that clears a 3m arm in 0.
Where boom barriers are typically installed
We build boom barriers for parking entries, toll and weighbridge lanes and gatehouses.
Sectors we supply
- Warehousing and logistics — distribution centres, 3PL facilities and dispatch docks.
- Cold chain — cold stores, freezer rooms and temperature-controlled dispatch.
- Automotive and engineering — component plants, press shops and assembly lines.
- Pharmaceutical and clean manufacturing — controlled and hygiene-critical areas.
- Infrastructure and construction — plant perimeters, site structures and civil scopes.
- Commercial and institutional — offices, campuses, hospitals and parking facilities.
What drives the cost
We quote per project rather than publishing prices. The figure moves with the boom length, the opening speed, the duty cycle and any RFID or ANPR integration. Send the measurements above and an engineer returns a drawing and a written quotation. Talk to an engineer →
Standards, materials and what we certify
- ISO 9001 — our quality management system is certified to it.
- CE marking on applicable products — a manufacturer's declaration of conformity, not a quality grade.
- IS 2062 structural steel for fabrication, gates and structures.
- IS 6248 for metal rolling shutters.
- EN 1634 as the reference for fire-resistance testing.
- Make in India and GST registered — relevant to government and PSU procurement.
- 230V single-phase / 415V three-phase, 50 Hz — standard Indian industrial mains.
Reference sources: European Commission, CE marking · Bureau of Indian Standards
From enquiry to handover
- Enquiry. Opening sizes, site location and application. An engineer picks it up.
- Site survey. We measure the clear opening, headroom, side-room and power position.
- Drawing and quotation. Equipment, safety schedule, electrical requirement and a written delivery date.
- Manufacture at Neemrana. Built to the approved drawing and the measured opening.
- Installation and commissioning. Fitted and tested by our own team through full travel with safety devices live.
- Handover, spares and AMC. Operating instructions on site, then service through the nearest team.
Explore the full product range, the sectors we serve, our delivered installations, or the areas we cover.
Boom Barriers — frequently asked questions
Who manufactures boom barriers in India?
Yadav Entrance Automation Pvt. Ltd. manufactures boom barriers in India, at our plant at Neemrana, Rajasthan on the Delhi-Jaipur NH-48 corridor. We have been building entrance automation equipment since 2011, with more than 500 installations across over 50 cities. Equipment is made to the measured opening rather than to a catalogue size, then installed and commissioned by our own engineers.
What is a boom barrier?
A boom barrier is a motorised arm that controls a vehicle lane. It is specified against the opening it serves and the way that opening is used, so two openings of the same width can need different equipment. We build boom barriers for parking entries, toll and weighbridge lanes and gatehouses.
What does a boom barrier cost?
We quote per project rather than publishing a price, because the figure moves with the boom length, the opening speed, the duty cycle and any RFID or ANPR integration. Send the opening dimensions, the site location and how the opening is used, and an engineer will come back with a drawing and a written quotation. That is faster than a list price that would need revising once the site is measured.
Do you supply boom barriers near me?
We install and service across North and West India, with the plant at Neemrana and teams in Delhi NCR and Gujarat. Installations to date cover more than 50 cities, concentrated in the Delhi-Jaipur corridor, Haryana, Rajasthan and Gujarat. Tell us the site location with your enquiry and we will confirm coverage before quoting.
Can boom barriers be motorised or automated?
Yes, where the product supports it. Motorised operation is specified against the weight being moved and the number of cycles per day, not simply added on. The drive, the control panel and the safety devices are listed on the technical drawing you approve before manufacture, so nothing about the automation is a surprise on site.
What power supply is needed?
Standard Indian industrial mains: 230V single-phase or 415V three-phase at 50 Hz. Which one applies depends on the product, the size of the opening and the duty cycle. The requirement is confirmed on the approved drawing so your electrical contractor can position the supply and isolator before delivery.
What measurements do you need to quote for boom barriers?
Clear opening width and height first — the daylight opening, not the wall opening. Then the headroom above the opening and the free side-room each side. Add the power available at the position, how many openings, and roughly how often each is used in a shift. Those figures let an engineer rule out the wrong products before visiting.
Do you handle installation, or only supply?
We manufacture, install and commission with our own team, and we do not sub-contract installation of our own equipment. How well a unit is fitted to its opening decides how long it lasts, so it is not work we hand off. Handover includes operating instructions on site.
Do you provide service, spares and AMC?
Yes. We supply genuine spares and offer Annual Maintenance Contracts for the equipment we manufacture. On high-cycle equipment maintenance matters more than most buyers expect, because wear tracks cycles rather than calendar age. Tell us the site and the equipment and we will route it to the nearest service team.
Which standards and certifications apply?
Our manufacturing is certified to ISO 9001 and applicable products are CE marked. Structural steelwork commonly references IS 2062 and rolling shutters IS 6248, both published by the Bureau of Indian Standards; fire-resistance testing is commonly referenced to EN 1634. If your specification names a standard, send the clause with the enquiry so it is written into the drawing.
Can you make boom barriers to a non-standard size?
Yes, and most industrial openings are non-standard. Equipment is built to the measured opening rather than to a catalogue size. We take the clear width, clear height, headroom and side-room on site, then confirm the achievable size on the drawing before manufacture begins.
How long does manufacture and delivery take?
It depends on the product and whether the opening is standard or bespoke, and it moves with material availability and the current order book. Rather than quote a general figure that may not hold, we confirm a delivery date in writing with the quotation.
Do you work with contractors, consultants and PSUs?
Yes. We supply end users directly and also work as a vendor to main contractors, PMCs and design consultants. We are GST registered and manufacture under Make in India, which matters for government and PSU procurement. For tendered work we can provide drawings, product data and the compliance documentation the specification calls for.
What safety devices are included?
For powered equipment, typically safety photocells across the opening, a safety edge where applicable, limit switches at both travel ends, and a manual release for use during a power cut. Vehicle equipment can add loop detectors. The exact schedule is listed on the drawing you approve, so check that rather than assuming a standard set.
How do I get a quote for boom barriers?
Use the enquiry form on this page and the details reach our team directly, or call and send a WhatsApp message on +91 95492 20707, or email [email protected]. If you already hold drawings or a specification, say so and an engineer will respond rather than a generic reply.
