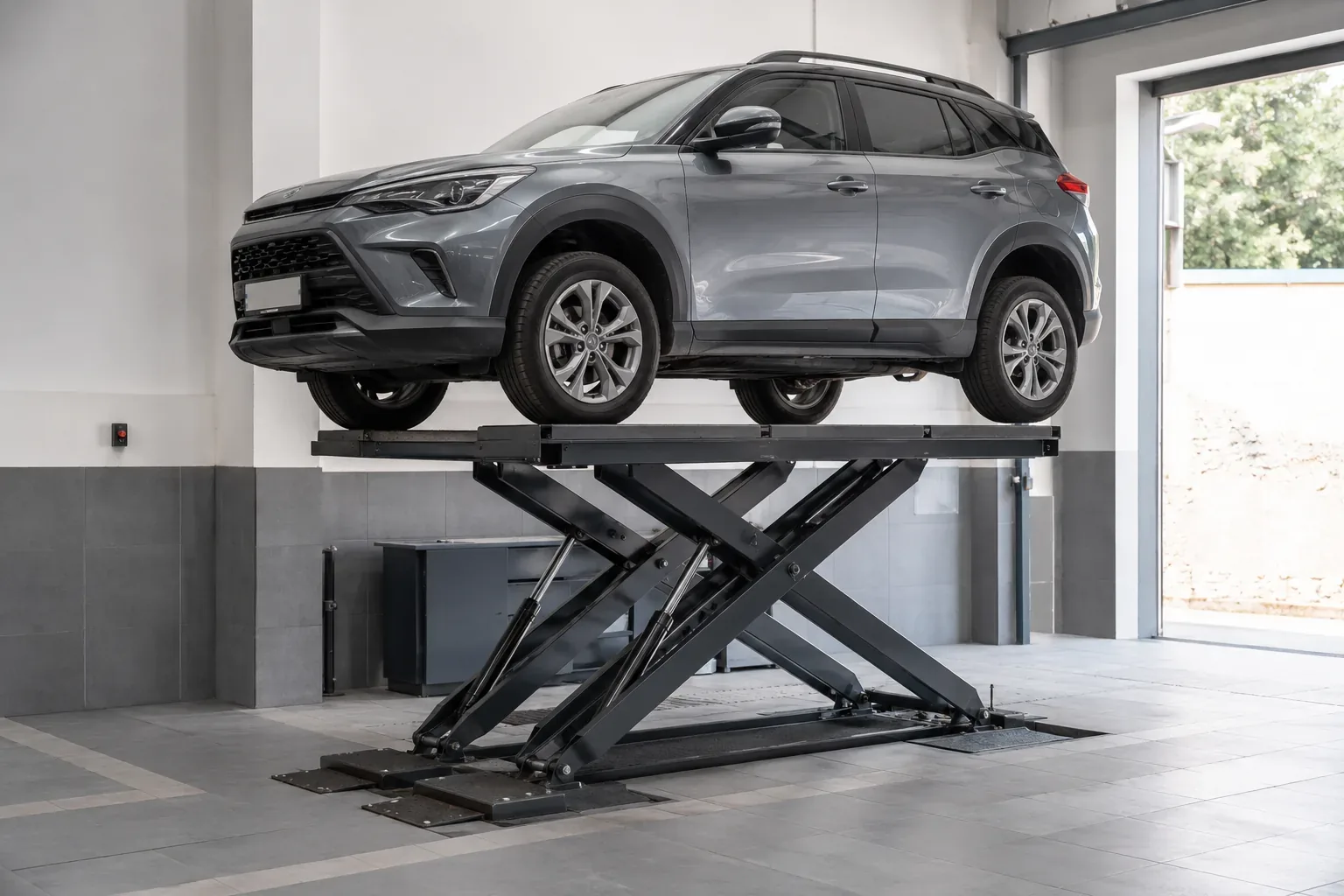

Car Scissor Lift
A low-profile car scissor lift for workshops, service centres and basement parking. Lifts vehicles up to 3,000–4,000 kg for under-body service or stack parking, with synchronised cylinders and a mechanical lock at every height.
| Capacity | 3,000–4,000 kg |
| Profile | low / flush |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
ISO 9001 · CE marked · Make-in-India · Manufacturing since 2011 · 500+ installations across 50+ cities. See the full Scissor Lift range and how we build it, or read more about our plant and capabilities.
Car Scissor Lift: Technical Specifications
Complete engineering data for the Yadav Entrance Automation hydraulic scissor lift range. All models are built to order, capacity, travel height and platform size are configured to your application.
| Parameter | Specification |
|---|---|
| Rated Capacity | 500 kg / 1,000 kg / 2,000 kg / 5,000 kg / 10,000 kg (custom on request) |
| Travel Height | 1,000mm (single) / 2,000mm (double) / 3,000mm (triple scissor) |
| Lowered Height | 200mm – 400mm (surface) / floor level (pit-mounted) |
| Platform Size (Standard) | 1,200×1,000mm; custom up to 3,000×2,000mm |
| Operating Mechanism | Hydraulic, double-acting cylinders with counter-balance |
| Power Unit (HPU) | 1.5 kW – 3.0 kW; 230V single-phase or 415V 3-phase; IP55 enclosure |
| Lifting Speed | Approx. 15–40 sec full travel (load & height dependent) |
| Platform Surface | Anti-skid chequer plate (6–8mm); roller-top or turntable optional |
| Frame Material | Structural steel / RHS sections: IS 2062 Grade B |
| Control | Hold-to-run push button + emergency stop; wireless pendant optional |
| Safety Devices | Maintenance prop, velocity fuse, pressure-relief valve, anti-shear toe guard, safety rails |
| Surface Finish | Epoxy primer (2 coats) + industrial enamel; hot-dip galvanized on request |
| Certifications | ISO 9001:2015, CE Marked (EU Machinery Directive 2006/42/EC) |
| Warranty | 2 years hydraulic system, 5 years structural frame |
What the Car Scissor Lift is, and who it suits
The Car Scissor Lift is a type of scissor lifts used across warehouses, loading bays and production floors. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Scissor Lifts range, the sectors we serve, or every product line.
- Loading bays serving mixed vehicle heights
- Warehouse mezzanine floors
- Production floors moving material between levels
- Cold stores and dispatch areas
- Workshops and maintenance bays
- Godowns handling palletised goods
- Rated capacity required, in kg or tonnes
- Platform size and travel height or number of levels
- Pit availability and depth, where relevant
- Power available: 230V single-phase or 415V three-phase, 50 Hz
- Vehicle bed heights the equipment must serve
- Duty cycle across a normal shift
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Car Scissor Lift: Engineered & Supported Across India
The Car Scissor Lift is manufactured and supported entirely within India. As an Indian manufacturer of scissor lifts, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian warehouses, loading bays and production floors, variable power supply, high ambient temperatures, dust and monsoon humidity, and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities: qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor, Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi, and the Gujarat industrial belt, Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Where the Car Scissor Lift fits
Workshops, service centres, showrooms and parking installations: 3,000 to 4,000 kg capacity on a low or flush profile so a vehicle drives on without a steep approach. The low profile is what makes it usable for cars with limited ground clearance.
Car Scissor Lift vs the alternatives
Against a two-post automotive lift, a scissor platform supports the vehicle across its footprint rather than at four lifting points, which suits wheel-free work less well but is far better for driving on and off quickly. Against a general goods lift, the platform geometry and approach are designed around a vehicle rather than a pallet.
Specifying a Car Scissor Lift
Tell us the heaviest vehicle including any load, and the range of vehicle sizes, because platform length and approach angle follow from it. Confirm whether the lift is surface-mounted with ramps or set flush in a pit. Say what the work is: servicing, display, or moving vehicles between levels, since they need different platforms.
Car Scissor Lift: Frequently Asked Questions
What vehicle weight can it take?
Why does the low profile matter?
Surface-mounted or pit-mounted?
Can it be used for wheel-free servicing?
Is it suitable for a car showroom display?
Which regions do you install and service in?
Do you provide installation, spares and AMC?
Is the Car Scissor Lift certified?
