1m–4.5m
Click to enlarge

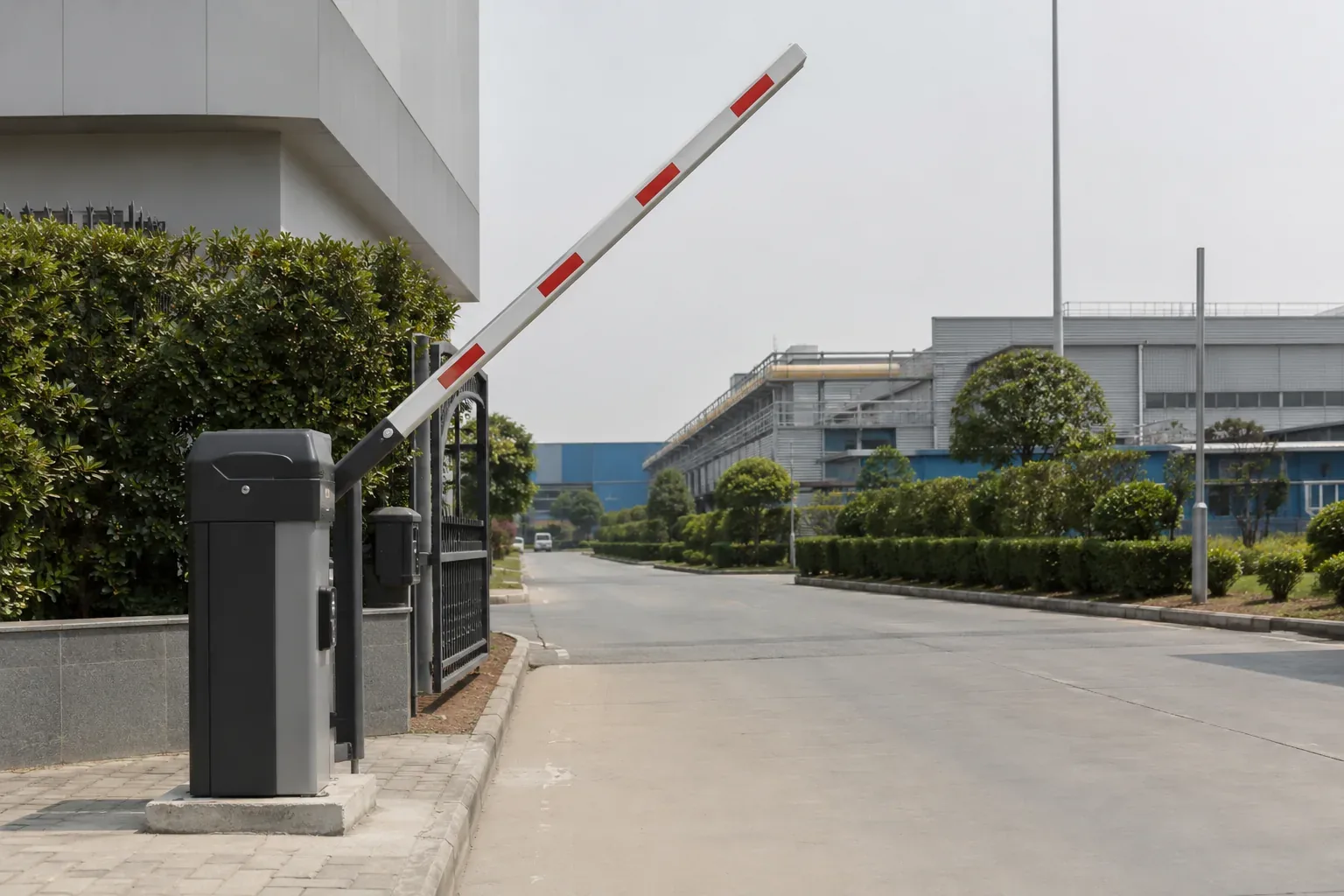

Automatic Boom Barrier
The workhorse automatic boom barrier for controlled vehicle entry at offices, factories, gated communities and commercial complexes. A 24V DC brushless drive raises a 1m–4.5m arm on command from a remote, push button, RFID or access controller, with auto-close and obstruction reverse as standard.
| Boom | 1m–4.5m |
| Opening | 1.5s–6s |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
ISO 9001 · CE marked · Make-in-India · Manufacturing since 2011 · 500+ installations across 50+ cities. See the full Boom Barrier range and how we build it, or read more about our plant and capabilities.
Automatic Boom Barrier: Technical Specifications
Complete engineering data for the Yadav Entrance Automation boom barrier range. All models are built to order, boom length, opening speed and integration are configured to your lane and traffic profile.
| Parameter | Specification |
|---|---|
| Boom Length | 1m / 2m / 3m / 4.5m / 6m (straight, aluminium octagonal or folding arm) |
| Opening Time | 0.6s–1.5s (high-speed) / 1.5s–6s (standard), boom-length dependent |
| Motor | 24V DC brushless (low-maintenance) or AC drive (heavy / continuous duty) |
| Duty Cycle | High-frequency to continuous (24×7) for toll plaza configurations |
| MCBF (Mean Cycles Between Failure) | Up to 5,000,000 cycles |
| Boom Material | Aluminium octagonal section with reflective strips; rubber edge optional |
| Cabinet Protection | IP55 / IP65 powder-coated steel housing for outdoor use |
| Integration | RFID / UHF, loop detector, ANPR, photocell, ticket dispenser, access controller |
| Control & Safety | Remote / push button / RFID; obstruction reverse, loop safety, photocell beams |
| Manual Operation | Manual release / hand crank to raise boom on power failure |
| Power Supply | 230V single-phase, 50Hz; battery backup / solar option available |
| Certifications | ISO 9001:2015, CE Marked (EU Machinery Directive 2006/42/EC) |
| Warranty | 1 year drive & control board, 2 years cabinet structure |
What the Automatic Boom Barrier is, and who it suits
The Automatic Boom Barrier is a type of boom barriers used across factories, gated campuses, toll points and parking facilities. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Boom Barriers range, the sectors we serve, or every product line.
- Factory and plant main entrances
- Warehouse and logistics yards
- Gated campuses and townships
- Parking entries and exits
- Toll and weighbridge lanes
- Security gatehouses
- Clear opening width and the run available for the gate to travel
- Gate leaf weight or approximate size
- Power available at the gate position
- Whether vehicles are read by RFID, ANPR or operated manually
- Daily vehicle volume and number of lanes
- Site levels and the condition of the running surface
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Automatic Boom Barrier: Engineered & Supported Across India
The Automatic Boom Barrier is manufactured and supported entirely within India. As an Indian manufacturer of boom barriers, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian factories, gated campuses, toll points and parking facilities, variable power supply, high ambient temperatures, dust and monsoon humidity, and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities: qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor, Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi, and the Gujarat industrial belt, Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Where the Automatic Boom Barrier fits
The standard vehicle barrier for a factory gate, office car park, campus entrance or gated community. Booms from 1m to 4.5m and opening times from 1.5 to 6 seconds cover most entrances where vehicles are checked, counted or authorised before passing.
Automatic Boom Barrier vs the alternatives
Against a gate, a barrier controls vehicles without securing the opening: it stops traffic, not intruders, and anyone can walk around it. That is usually the correct trade at a manned or monitored entrance where flow matters more than physical security. Against the high-speed and toll models, this is specified for normal site traffic rather than continuous high-volume duty.
Specifying an Automatic Boom Barrier
Give the lane width so the boom length is right, and tell us the daily vehicle count, since that drives duty rating. Say how vehicles will be authorised: guard, remote, card, RFID or ANPR. Confirm whether a loop detector is needed to prevent the boom dropping on a vehicle, and what power is available at the entrance.
Automatic Boom Barrier: Frequently Asked Questions
How long can the boom be?
Does a boom barrier provide security?
What stops the boom dropping on a vehicle?
How fast does it open?
What happens in a power cut?
Which regions do you install and service in?
Do you provide installation, spares and AMC?
Is the Automatic Boom Barrier certified?
Boom Barrier Design + Quote in 24 Hours
No generic quotes, no run-around.
In-House Manufacturing
Every boom barrier manufactured under ISO 9001 quality control. No traded products, no middlemen.
Free Site Survey & Layout
Our engineers survey your lane and supply a full installation layout for your contractor, at no charge.
AMC Available Nationwide
Annual Maintenance Contracts covering all boom barriers and access-control equipment with a 4-hour emergency response SLA.
