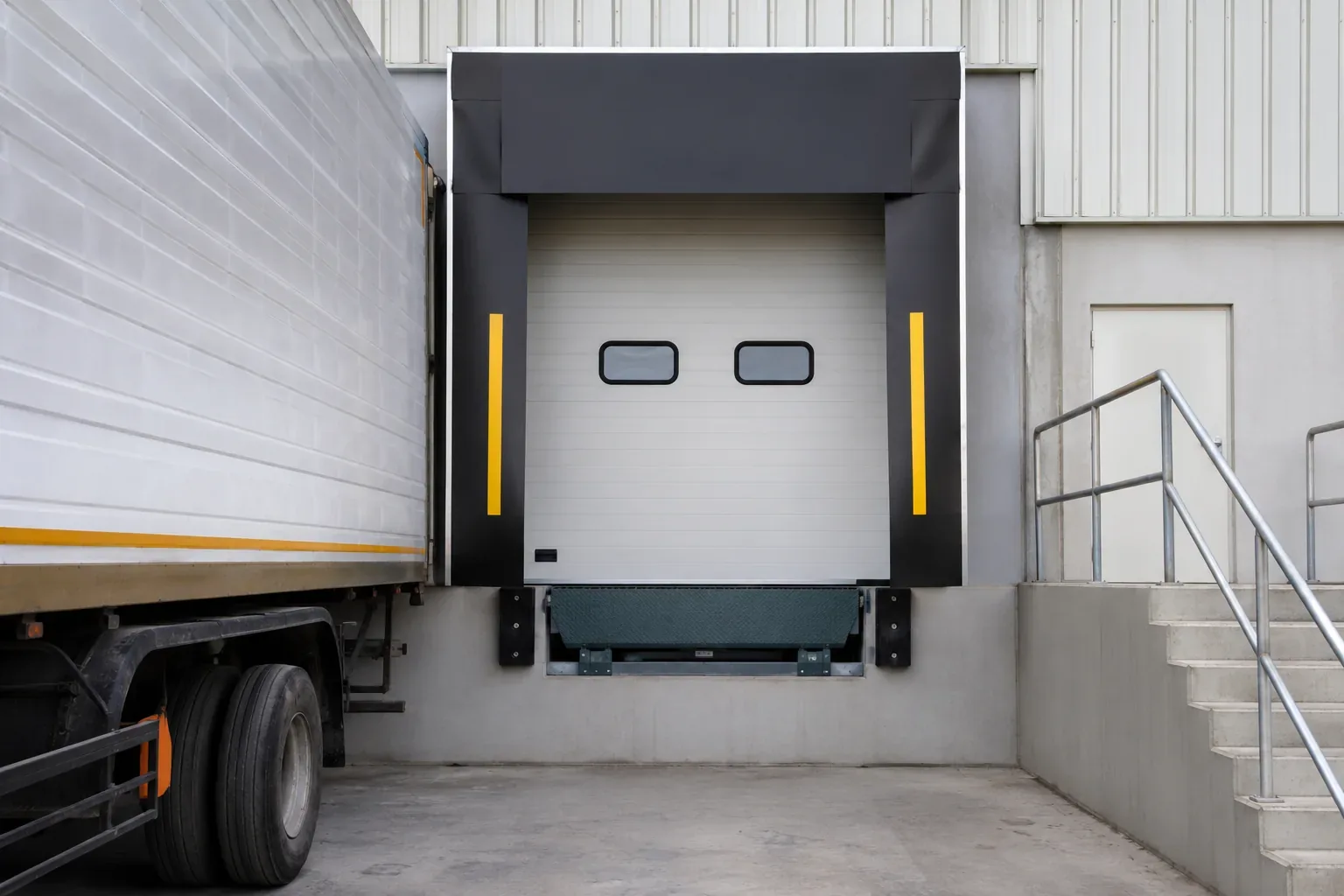

Loading Bay Equipment
Complete loading bay equipment to finish the dock, dock bumpers rated for 50T impact, wheel guides, dock lights, traffic signals and the dock door. Specified and installed alongside your dock leveler for a fully integrated, safe loading dock from a single vendor.
| Includes | bumpers, guides, lights |
| Install | turnkey |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
ISO 9001 · CE marked · Make-in-India · Manufacturing since 2011 · 500+ installations across 50+ cities. See the full Dock Leveller range and how we build it, or read more about our plant and capabilities.
Loading Bay Equipment: Technical Specifications
Complete engineering data for the Yadav Entrance Automation dock leveler (dock leveller) and loading bay equipment range. All dock leveler specifications are for standard pit-mounted models, mechanical and edge-of-dock variants available on request.
| Parameter | Specification |
|---|---|
| Dock Leveler Capacity | 6,000 kg / 8,000 kg / 10,000 kg (three standard ratings) |
| Platform Size (Standard) | 2,000mm × 2,500mm; custom sizes up to 2,500mm × 3,000mm |
| Vertical Travel Range | ±300mm (300mm above to 300mm below dock floor level) |
| Operating Mechanism | Hydraulic (standard) / Mechanical spring (economy) / Edge-of-dock |
| Hydraulic Power Unit | 1.5 kW motor (6T / 8T) / 2.2 kW motor (10T); 230V single-phase or 415V 3-phase |
| Lip Extension Length | 400mm standard; 500mm extended option for low-floor trailers |
| Lip Extension Mechanism | Hydraulic powered; auto-extend on leveler activation |
| Platform Surface | Anti-skid chequer plate (MS): 6mm plate; 8mm heavy duty for 10T |
| Dock Shelter Type | Inflatable foam / Inflatable curtain / Retractable; brush-seal option |
| Dock Seal Type | Foam block / Brush seal; adjustable to trailer widths 2,200mm – 2,600mm |
| Edge-of-Dock Leveler | Bolt-on dock-face mount; hydraulic or mechanical; up to 6,000 kg |
| Frame Material | Structural steel / RHS sections: IS 2062 Grade B |
| Pit Frame Construction | 50mm × 50mm angle iron, fully welded, hot-dip galvanized option |
| Control | Push button panel + emergency stop; optional wireless remote |
| Safety Devices | Safety lock bar, velocity fuse (fail-safe lowering), toe guard mesh, dock bumpers |
| Surface Finish | Epoxy primer (2 coats) + industrial enamel / hot-dip galvanized on request |
| Certifications | ISO 9001:2015, IS 7155 (dock levelers), NBC 2016 compliant installation |
| Warranty | 2 years hydraulic system, 5 years structural frame |
What the Loading Bay Equipment is, and who it suits
The Loading Bay Equipment is a type of dock levelers used across warehouses, loading bays and production floors. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Dock Levelers range, the sectors we serve, or every product line.
- Loading bays serving mixed vehicle heights
- Warehouse mezzanine floors
- Production floors moving material between levels
- Cold stores and dispatch areas
- Workshops and maintenance bays
- Godowns handling palletised goods
- Rated capacity required, in kg or tonnes
- Platform size and travel height or number of levels
- Pit availability and depth, where relevant
- Power available: 230V single-phase or 415V three-phase, 50 Hz
- Vehicle bed heights the equipment must serve
- Duty cycle across a normal shift
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Loading Bay Equipment: Engineered & Supported Across India
The Loading Bay Equipment is manufactured and supported entirely within India. As an Indian manufacturer of dock levelers, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian warehouses, loading bays and production floors, variable power supply, high ambient temperatures, dust and monsoon humidity, and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities: qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor, Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi, and the Gujarat industrial belt, Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Where the Loading Bay Equipment fits
The whole bay, designed and installed as one: leveller, shelter or seal, bumpers, guides and lights, supplied turnkey on a single invoice. It suits new bays, refurbishments, and sites that have accumulated equipment piecemeal and now have gaps, fouling and premature wear because nothing was detailed together.
Loading Bay Equipment vs the alternatives
Against buying each item separately, the difference is the interfaces. Most loading bay problems are not component failures; they are gaps between components that were each specified without reference to the others. One supplier detailing the whole bay removes that, and gives you a single point of responsibility when something needs attention.
Specifying a Loading Bay Equipment
Tell us the bay as it stands: dock height, existing equipment, building face construction, drainage. Give the fleet you receive and the daily vehicle count. Say whether the building is temperature-controlled. Confirm whether this is new build, refurbishment or adding to a working bay, since that changes sequencing more than specification.
Loading Bay Equipment: Frequently Asked Questions
What does a complete bay include?
Why do bumpers and guides matter?
Can you upgrade a bay that already has equipment?
Do you install as well as supply?
How long does a bay take to install?
Which regions do you install and service in?
Do you provide installation, spares and AMC?
Is the Loading Bay Equipment certified?
Who manufactures loading bay equipment in India?
What is a dock shelter?
What does a dock shelter cost?
Do you supply loading bay equipment near me?
Can loading bay equipment be motorised or automated?
What measurements do you need to quote for loading bay equipment?
Do you handle installation, or only supply?
Do you provide service, spares and AMC?
Which standards and certifications apply?
Can you make loading bay equipment to a non-standard size?
How long does manufacture and delivery take?
Do you work with contractors, consultants and PSUs?
What safety devices are included?
Dock Bay Design + Quote in 24 Hours
No generic quotes, no run-around.
In-House Manufacturing
Every dock leveler manufactured under ISO 9001 quality control. No imported products, no middlemen.
Free Bay Survey & Civil Drawing
Our engineers survey your dock pit or design a new one and supply a full civil drawing for your contractor, at no charge.
AMC Available Nationwide
Annual Maintenance Contracts covering all dock levelers and loading bay equipment with a 4-hour emergency response SLA.
Choosing loading bay equipment: what actually decides the specification
A dock shelter is the shelters, seals and doors that close the gap around a docked vehicle. The right one is decided by the opening and how it is used, not by the catalogue. These are the things worth settling before anyone quotes.
What to measure
- Clear opening width and height: the daylight opening the vehicle or person passes through, not the hole in the wall.
- Headroom above the opening: decides which products are possible at all.
- Side-room, both sides: guides, tracks and motors live here, and it is rarely equal on both sides.
- Power at the position: 230V single-phase or 415V three-phase, 50 Hz.
- Cycles per shift: the most under-specified figure on a typical enquiry.
- Environment: temperature, dust, washdown, coastal air or a hygiene requirement.
Where loading bay equipment are typically installed
We build loading bay equipment for distribution centres, cold chain facilities and dispatch docks.
Sectors we supply
- Warehousing and logistics: distribution centres, 3PL facilities and dispatch docks.
- Cold chain: cold stores, freezer rooms and temperature-controlled dispatch.
- Automotive and engineering: component plants, press shops and assembly lines.
- Pharmaceutical and clean manufacturing: controlled and hygiene-critical areas.
- Infrastructure and construction: plant perimeters, site structures and civil scopes.
- Commercial and institutional: offices, campuses, hospitals and parking facilities.
What drives the cost
We quote per project rather than publishing prices. The figure moves with the bay opening size, the vehicle mix, and whether the bay is temperature controlled. Send the measurements above and an engineer returns a drawing and a written quotation. Talk to an engineer →
For a side-by-side comparison before you enquire, read our buyer's guide: How to choose a dock leveller: hydraulic vs mechanical vs edge-of-dock.
Standards, materials and what we certify
- ISO 9001: our quality management system is certified to it.
- CE marking on applicable products: a manufacturer's declaration of conformity, not a quality grade.
- IS 2062 structural steel for fabrication, gates and structures.
- IS 6248 for metal rolling shutters.
- EN 1634 as the reference for fire-resistance testing.
- Make in India and GST registered: relevant to government and PSU procurement.
- 230V single-phase / 415V three-phase, 50 Hz: standard Indian industrial mains.
Reference sources: European Commission, CE marking · Bureau of Indian Standards
From enquiry to handover
- Enquiry. Opening sizes, site location and application. An engineer picks it up.
- Site survey. We measure the clear opening, headroom, side-room and power position.
- Drawing and quotation. Equipment, safety schedule, electrical requirement and a written delivery date.
- Manufacture at Neemrana. Built to the approved drawing and the measured opening.
- Installation and commissioning. Fitted and tested by our own team through full travel with safety devices live.
- Handover, spares and AMC. Operating instructions on site, then service through the nearest team.
Explore the full product range, the sectors we serve, our delivered installations, or the areas we cover.
Loading Bay Equipment: frequently asked questions
Who manufactures loading bay equipment in India?
Yadav Entrance Automation Pvt. Ltd. manufactures loading bay equipment in India, at our plant at Neemrana, Rajasthan on the Delhi-Jaipur NH-48 corridor. We have been building entrance automation equipment since 2011, with more than 500 installations across over 50 cities. Equipment is made to the measured opening rather than to a catalogue size, then installed and commissioned by our own engineers.
What is a dock shelter?
A dock shelter is the shelters, seals and doors that close the gap around a docked vehicle. It is specified against the opening it serves and the way that opening is used, so two openings of the same width can need different equipment. We build loading bay equipment for distribution centres, cold chain facilities and dispatch docks.
What does a dock shelter cost?
We quote per project rather than publishing a price, because the figure moves with the bay opening size, the vehicle mix, and whether the bay is temperature controlled. Send the opening dimensions, the site location and how the opening is used, and an engineer will come back with a drawing and a written quotation. That is faster than a list price that would need revising once the site is measured.
Do you supply loading bay equipment near me?
We install and service across North and West India, with the plant at Neemrana and teams in Delhi NCR and Gujarat. Installations to date cover more than 50 cities, concentrated in the Delhi-Jaipur corridor, Haryana, Rajasthan and Gujarat. Tell us the site location with your enquiry and we will confirm coverage before quoting.
Can loading bay equipment be motorised or automated?
Yes, where the product supports it. Motorised operation is specified against the weight being moved and the number of cycles per day, not simply added on. The drive, the control panel and the safety devices are listed on the technical drawing you approve before manufacture, so nothing about the automation is a surprise on site.
What power supply is needed?
Standard Indian industrial mains: 230V single-phase or 415V three-phase at 50 Hz. Which one applies depends on the product, the size of the opening and the duty cycle. The requirement is confirmed on the approved drawing so your electrical contractor can position the supply and isolator before delivery.
What measurements do you need to quote for loading bay equipment?
Clear opening width and height first. The daylight opening, not the wall opening. Then the headroom above the opening and the free side-room each side. Add the power available at the position, how many openings, and roughly how often each is used in a shift. Those figures let an engineer rule out the wrong products before visiting.
Do you handle installation, or only supply?
We manufacture, install and commission with our own team, and we do not sub-contract installation of our own equipment. How well a unit is fitted to its opening decides how long it lasts, so it is not work we hand off. Handover includes operating instructions on site.
Do you provide service, spares and AMC?
Yes. We supply genuine spares and offer Annual Maintenance Contracts for the equipment we manufacture. On high-cycle equipment maintenance matters more than most buyers expect, because wear tracks cycles rather than calendar age. Tell us the site and the equipment and we will route it to the nearest service team.
Which standards and certifications apply?
Our manufacturing is certified to ISO 9001 and applicable products are CE marked. Structural steelwork commonly references IS 2062 and rolling shutters IS 6248, both published by the Bureau of Indian Standards; fire-resistance testing is commonly referenced to EN 1634. If your specification names a standard, send the clause with the enquiry so it is written into the drawing.
Can you make loading bay equipment to a non-standard size?
Yes, and most industrial openings are non-standard. Equipment is built to the measured opening rather than to a catalogue size. We take the clear width, clear height, headroom and side-room on site, then confirm the achievable size on the drawing before manufacture begins.
How long does manufacture and delivery take?
It depends on the product and whether the opening is standard or bespoke, and it moves with material availability and the current order book. Rather than quote a general figure that may not hold, we confirm a delivery date in writing with the quotation.
Do you work with contractors, consultants and PSUs?
Yes. We supply end users directly and also work as a vendor to main contractors, PMCs and design consultants. We are GST registered and manufacture under Make in India, which matters for government and PSU procurement. For tendered work we can provide drawings, product data and the compliance documentation the specification calls for.
What safety devices are included?
For powered equipment, typically safety photocells across the opening, a safety edge where applicable, limit switches at both travel ends, and a manual release for use during a power cut. Vehicle equipment can add loop detectors. The exact schedule is listed on the drawing you approve, so check that rather than assuming a standard set.
How do I get a quote for loading bay equipment?
Use the enquiry form on this page and the details reach our team directly, or call and send a WhatsApp message on +91 95492 20707, or email [email protected]. If you already hold drawings or a specification, say so and an engineer will respond rather than a generic reply.
