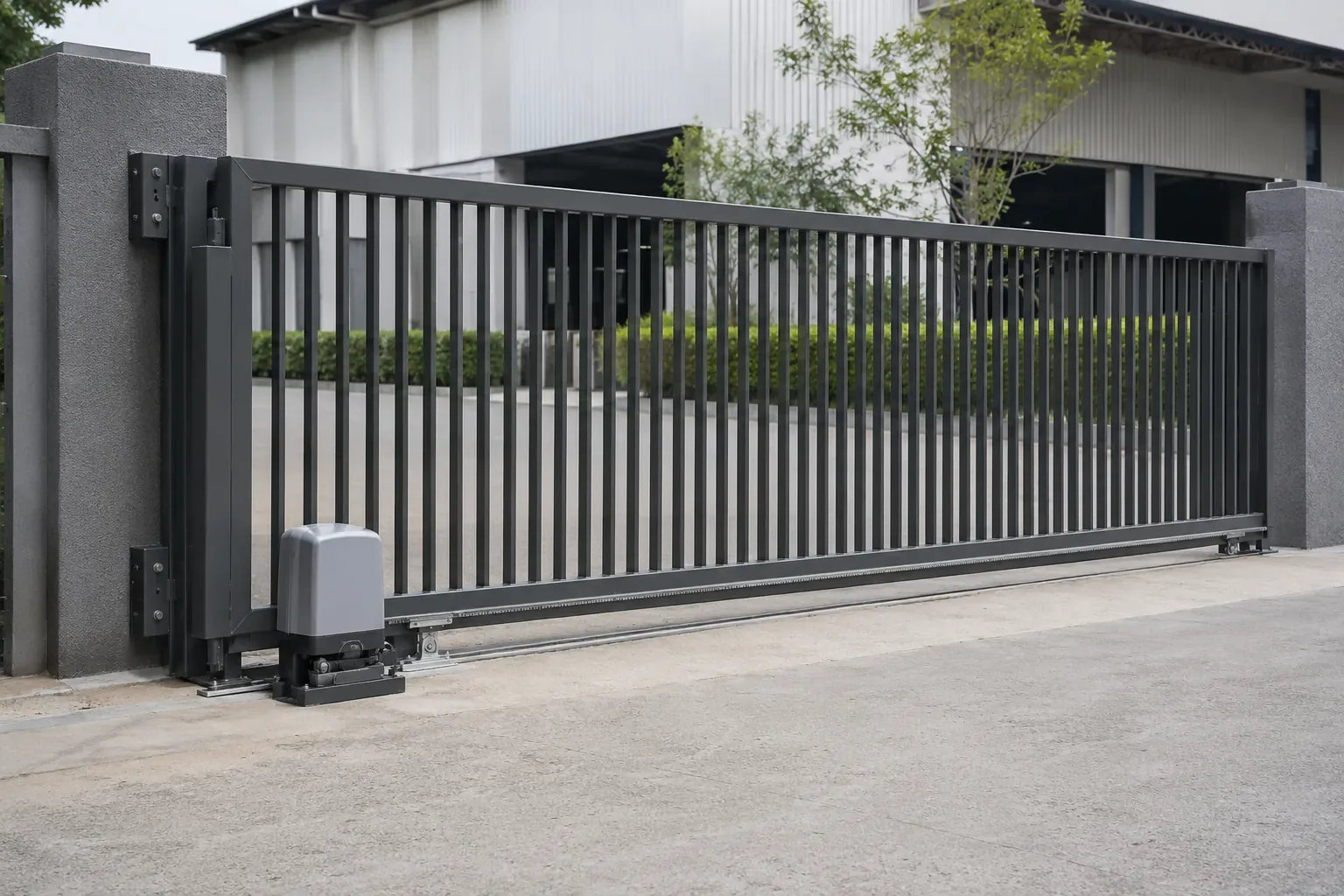

Automatic Sliding Gate
The all-purpose automatic sliding gate on a ground track, driven by a rack-and-pinion sliding gate motor with soft start/stop. Photocells, loop detector and flashing lamp come as standard for safe, hands-free vehicle entry at factory and campus gates.
| Span | up to 12m |
| Drive | rack-and-pinion |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
ISO 9001 · CE marked · Make-in-India · Manufacturing since 2011 · 500+ installations across 50+ cities. See the full Sliding Gate range and how we build it, or read more about our plant and capabilities.
Automatic Sliding Gate: Technical Specifications
Complete engineering data for the Yadav Entrance Automation automatic sliding gate range. All models are built to order, span, gate weight, motor rating and infill are configured to your opening and site conditions.
| Parameter | Specification |
|---|---|

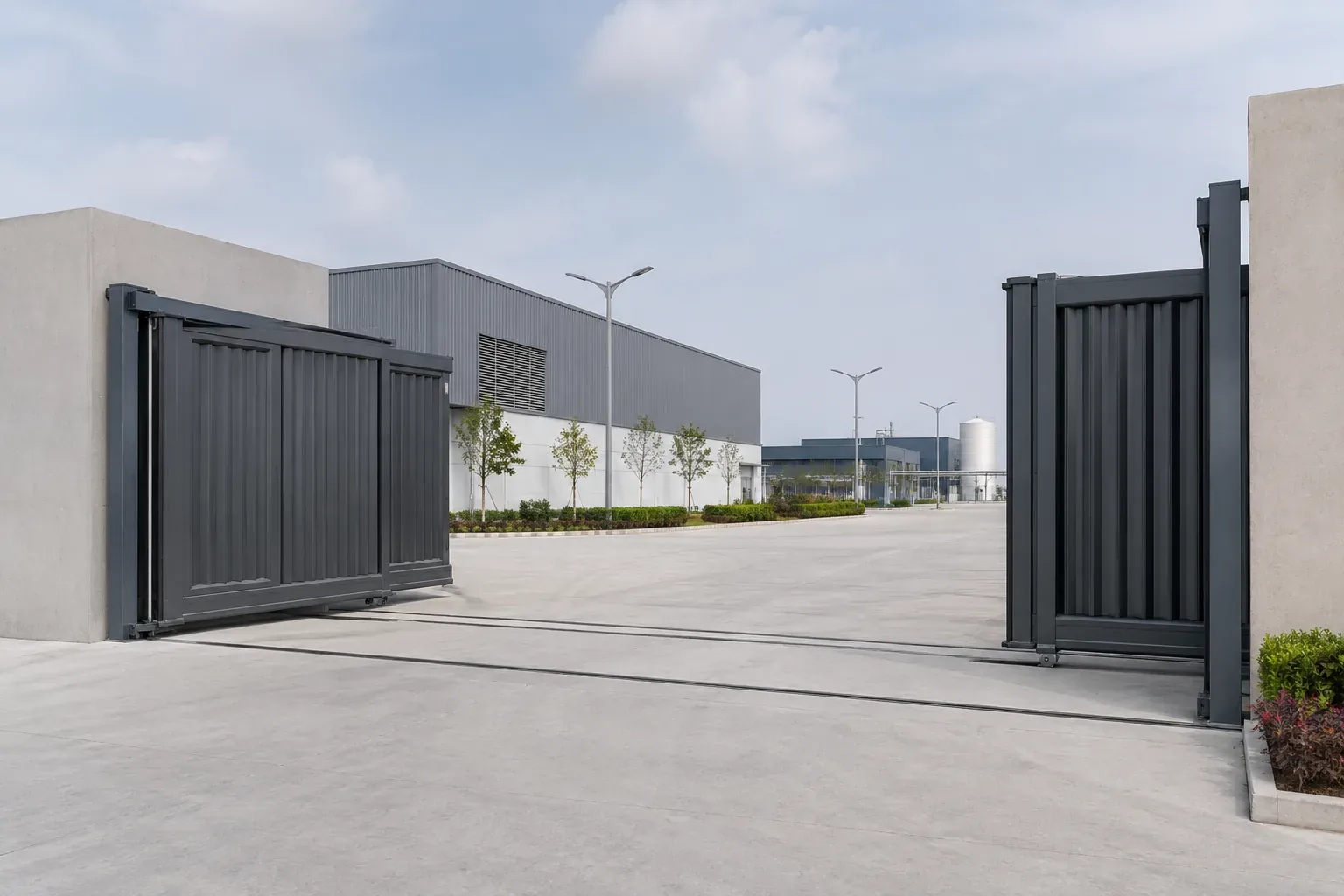

| Max Span | Up to 12m single leaf / 20m+ telescopic (custom on request) |
| Gate / Motor Rating | 600 kg / 1,000 kg / 1,500 kg / 1,800 kg+ gate weight |
| Drive Mechanism | Hardened rack-and-pinion with anti-derailment guides |
| Operator / Power | 24V DC (residential) or 415V 3-phase (industrial); soft start/stop |

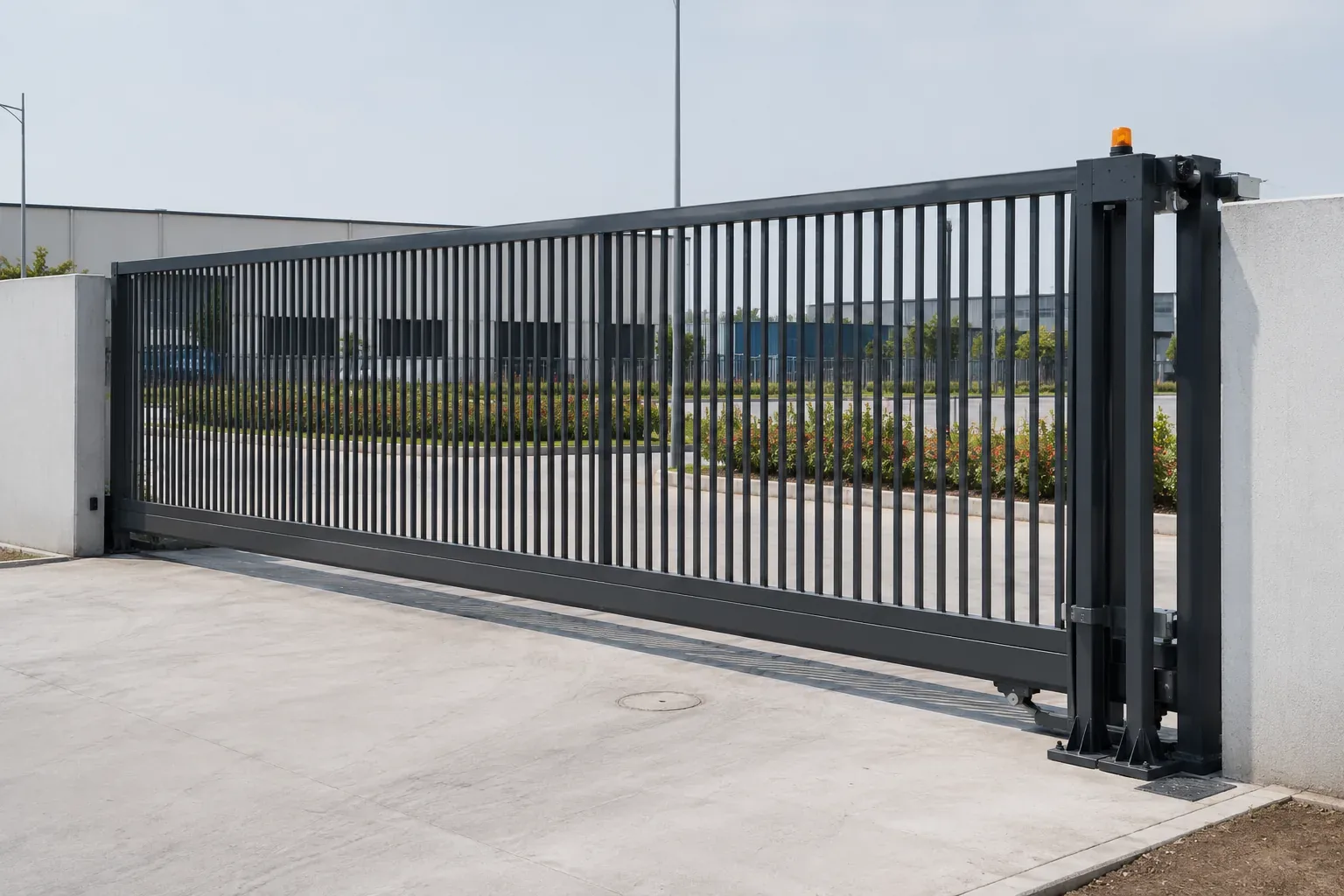

| Track Type | Ground-track or cantilever (trackless) configuration |
| Opening Speed | Approx. 9–18 m/min (gate weight & span dependent) |
| Frame Material | Structural steel / RHS sections: IS 2062 Grade B |
| Infill | MS / SS / aluminium: pickets, sheet, perforated or mesh |
| Control | Remote control + push button; access control / RFID optional |
| Safety Devices | Photocells, loop detector, flashing lamp, manual release, anti-crush sensing |
| Surface Finish | Powder-coated (epoxy primer + topcoat); hot-dip galvanized on request |
| Certifications | ISO 9001:2015; CE-marked operators |
| Warranty | 2 years gate motor & electronics, 5 years structural frame |
What the Automatic Sliding Gate is, and who it suits
The Automatic Sliding Gate is a type of sliding gates used across factories, gated campuses, toll points and parking facilities. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Sliding Gates range, the sectors we serve, or every product line.
- Factory and plant main entrances
- Warehouse and logistics yards
- Gated campuses and townships
- Parking entries and exits
- Toll and weighbridge lanes
- Security gatehouses
- Clear opening width and the run available for the gate to travel
- Gate leaf weight or approximate size
- Power available at the gate position
- Whether vehicles are read by RFID, ANPR or operated manually
- Daily vehicle volume and number of lanes
- Site levels and the condition of the running surface
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Automatic Sliding Gate: Engineered & Supported Across India
The Automatic Sliding Gate is manufactured and supported entirely within India. As an Indian manufacturer of sliding gates, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian factories, gated campuses, toll points and parking facilities, variable power supply, high ambient temperatures, dust and monsoon humidity, and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities: qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor, Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi, and the Gujarat industrial belt, Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Where the Automatic Sliding Gate fits
The standard automated entrance gate for a factory, warehouse, campus or gated premises. Rack-and-pinion drive across spans to 12m gives positive, controlled movement rather than relying on friction, which matters on a gate that runs many times a day and must stop precisely at the same point.
Automatic Sliding Gate vs the alternatives
Against a swing gate, a sliding leaf needs no arc to open into, which suits a driveway where vehicles queue close to the gate or where the ground slopes. Against a cantilever gate, this runs on a ground track, which is simpler and cheaper but requires a clean, level track that stays clear of debris, snow and silt.
Specifying an Automatic Sliding Gate
Give the clear opening and the run-back space beside it, because a sliding leaf needs somewhere to go. Tell us the ground condition along the track line and whether it drains. Confirm gate leaf weight and construction, daily cycles, and how the gate should be triggered: remote, keypad, card, loop or intercom.
Automatic Sliding Gate: Frequently Asked Questions
How much space does a sliding gate need beside the opening?
Why rack-and-pinion rather than a chain or friction drive?
What maintenance does the ground track need?
What happens in a power cut?
What safety devices are needed?
Which regions do you install and service in?
Do you provide installation, spares and AMC?
Is the Automatic Sliding Gate certified?
