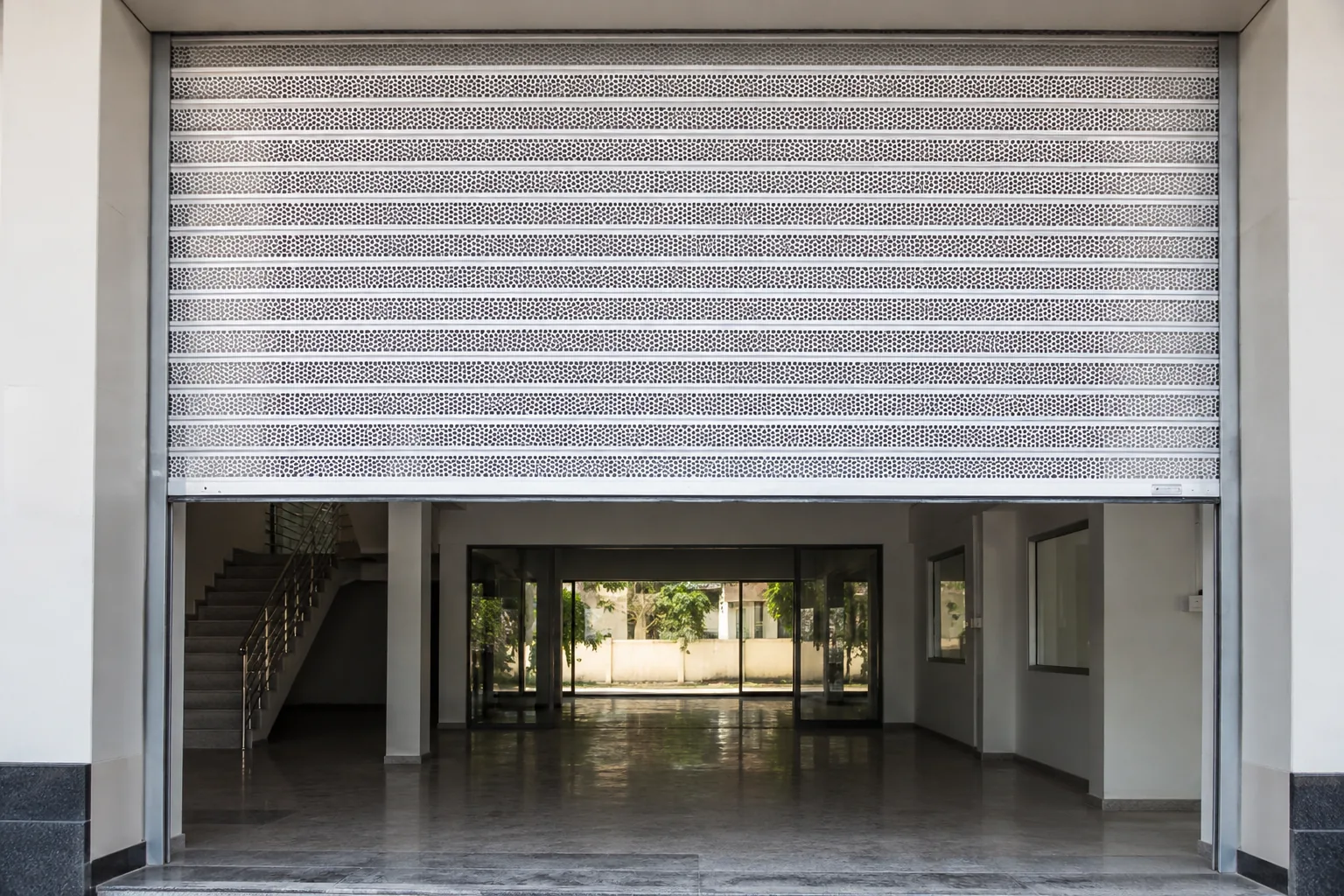

Perforated Rolling Shutter
A perforated rolling shutter with punched or grille-style laths giving partial visibility and ventilation while staying secure. Popular for retail showrooms, malls and parking entries that need airflow and a view-through after hours.
| Visibility | partial |
| Best for | retail, malls |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
ISO 9001 · CE marked · Make-in-India · Manufacturing since 2011 · 500+ installations across 50+ cities. See the full Rolling Shutter range and how we build it, or read more about our plant and capabilities.
Perforated Rolling Shutter: Technical Specifications
Complete engineering data for the rolling shutter range. Specifications listed are for standard Motorized Aluminium, other variants differ in material and drive parameters.
| Parameter | Specification |
|---|---|
| Lath Profile Height | 77mm standard / 92mm heavy-duty |
| Lath Thickness: Steel | 0.8mm (economy) / 1.2mm (standard) / 1.6mm (heavy) |
| Lath Thickness: Aluminium | 1.2mm (standard) / 1.5mm / 2.0mm (heavy) |
| Maximum Single Width | 10,000 mm (single curtain, no intermediate post) |
| Maximum Width (Multi-Curtain) | 18,000 mm (with flush intermediate guide post) |
| Maximum Height | 8,000 mm |
| Drive: Manual | Gear handle (single gear) or push-up (light duty) |
| Drive: Electric | Single-phase 230V or three-phase 415V tubular motor |
| Motor Power Range | 0.25 kW (up to 3m × 3m) to 2.2 kW (large bays) |
| Operating Speed: Motorized | 6–10 m/min (adjustable via limit switches) |
| Daily Cycle Rating | 20–50 cycles per day (standard); 50+ cycles heavy duty |
| Control Options | Push button (standard) / RF remote / Loop detector / Timer / GSM |
| Wind Load: Standard | 55 km/h (MS standard) / 80 km/h (aluminium) / 100 km/h (reinforced) |
| Bottom Beam | Extruded aluminium with EPDM sealing strip; galvanized steel option |
| Side Guide Channels | 1.5mm / 2mm / 3mm rolled steel or aluminium |
| Finish: Steel | Hot-dip galvanized (85 micron) or powder coat (60–80 micron) |
| Finish: Aluminium | Mill finish / anodized (20 micron) / powder coat (custom RAL) |
| Spring Counterbalance | Pre-tensioned torsion spring; Helical spring on manual large bays |
| Drum Barrel | 76mm dia. (light) / 102mm dia. (standard) / 152mm dia. (heavy) |
| Shaft | Solid 25mm / 32mm / 50mm hex steel shaft depending on size |
| IP Rating: Motor | IP44 standard / IP55 optional (outdoor / washdown) |
| Certifications | ISO 9001:2015; BIS Mark (selected MS models); IS 6248 compliant |
| Warranty | 2 years motor, 3 years structure, 1 year surface finish |
What the Perforated Rolling Shutter is, and who it suits
The Perforated Rolling Shutter is a type of rolling shutters used across warehouses, factories, cold stores and commercial buildings. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Rolling Shutters range, the sectors we serve, or every product line.
- Warehouse and distribution-centre openings
- Factory and production-floor entrances
- Cold stores and temperature-controlled rooms
- Clean rooms and pharmaceutical areas
- Loading bays and dispatch docks
- Commercial building entrances
- Clear opening width and height (the daylight opening, not the wall opening)
- Lintel / headroom above the opening
- Side-room free each side for guides and motor
- Power available at the opening: 230V single-phase or 415V three-phase, 50 Hz
- Approximate cycles per day
- Any fire-rating, temperature or hygiene requirement
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Perforated Rolling Shutter: Engineered & Supported Across India
The Perforated Rolling Shutter is manufactured and supported entirely within India. As an Indian manufacturer of rolling shutters, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian warehouses, factories, cold stores and commercial buildings, variable power supply, high ambient temperatures, dust and monsoon humidity, and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities: qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor, Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi, and the Gujarat industrial belt, Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Where the Perforated Rolling Shutter fits
Perforated curtains suit openings that must stay secure without going blind: mall units where the window display should still work after closing, showrooms, and plant or parking areas that need air to move through a closed opening. The punched or grille-style laths let light, air and sightlines through while the opening remains physically shut.
Perforated Rolling Shutter vs the alternatives
Against a solid shutter, you trade weather-tightness and privacy for visibility and airflow. A perforated curtain is not a weather barrier, and should not be specified where driven rain reaches the opening. Against a polycarbonate shutter, the difference is airflow: polycarbonate gives a clear view through a sealed curtain, while perforation gives ventilation but no protection from the elements. Choose by asking whether you need to see through it, breathe through it, or both.
Specifying a Perforated Rolling Shutter
Decide what the perforation is actually for, because ventilation and visibility want different patterns. Tell us whether rain can reach the opening. Say what the security expectation is, since the open area of the curtain affects it. Where only part of the opening needs to be seen through, a part-solid, part-perforated curtain is often the better answer and is worth raising at enquiry.
Perforated Rolling Shutter: Frequently Asked Questions
Does a perforated rolling shutter keep rain out?
Is a perforated shutter as secure as a solid one?
Can part of the curtain be solid and part perforated?
Does perforation help with smoke ventilation?
How much of the curtain is actually open area?
Which regions do you install and service in?
Do you provide installation, spares and AMC?
Is the Perforated Rolling Shutter certified?
