30–40/min
Click to enlarge

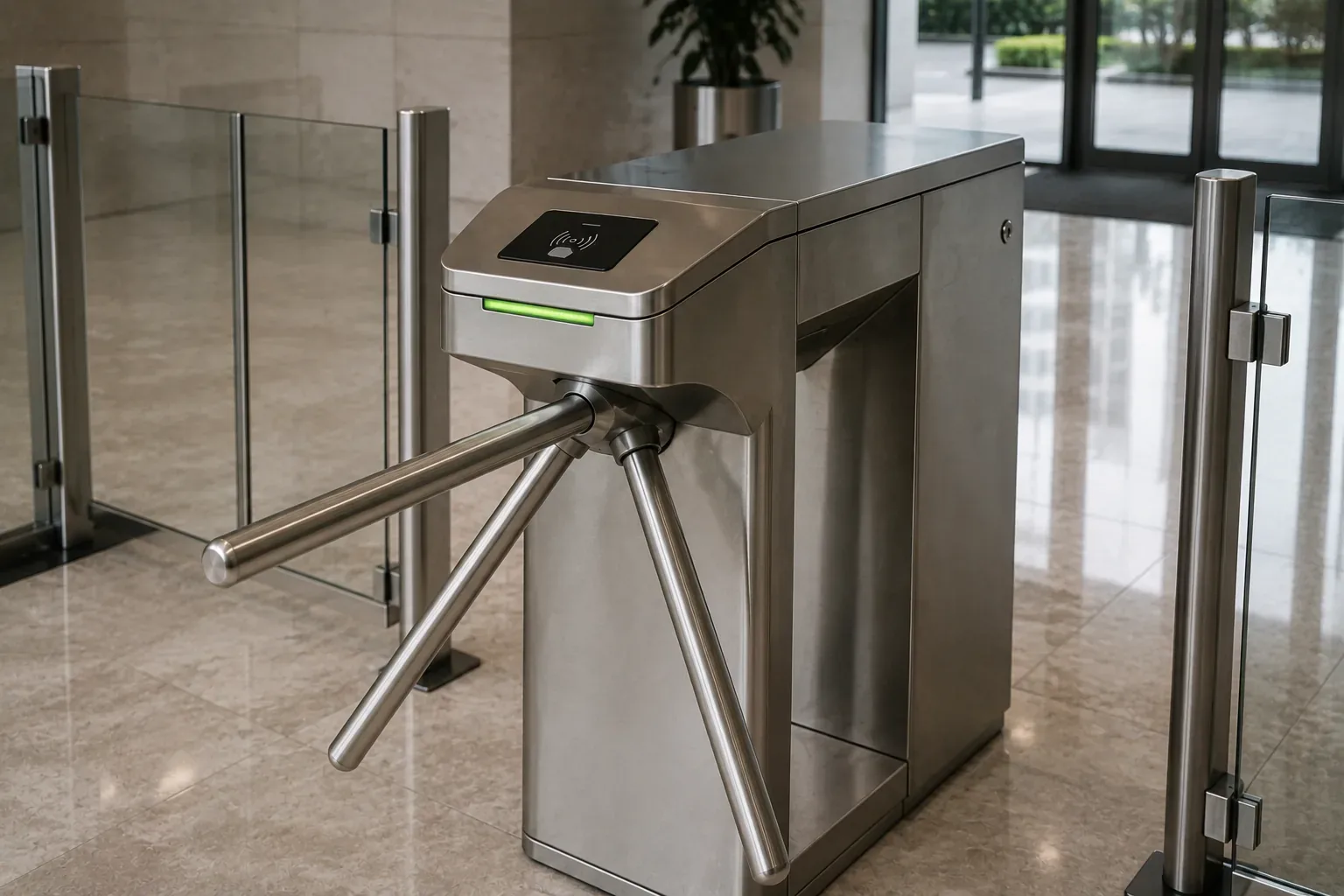

Tripod Turnstile
Bi-directional tripod turnstiles with drop-arm on power failure for safe emergency egress. Compact, heavy-duty and economical for high-footfall entries at offices, metros and institutions, throughput of 30–40 persons per minute per lane.
| Throughput | 30–40/min |
| Power-fail | drop-arm |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
ISO 9001 · CE marked · Make-in-India · Manufacturing since 2011 · 500+ installations across 50+ cities. See the full Access Control System Supplier in India range and how we build it, or read more about our plant and capabilities.
Tripod Turnstile: Technical Specifications
Complete engineering data for the Yadav Entrance Automation access control and security range. All systems are configured to order, readers, controllers, locks and turnstile lanes are matched to your facility.
| Parameter | Specification |
|---|---|
| Reader Technology | RFID 125 kHz / smart card 13.56 MHz / fingerprint / face / palm |
| Controller Interface | Wiegand 26 / 34-bit & TCP-IP networked controllers (1–4 door) |
| User / Credential Capacity | Up to 100,000 users; 1,00,000+ event logs per controller |
| Turnstile Throughput | 30–40 persons/min per lane (tripod / flap / speed barrier) |
| Lane Width | Standard ~550mm; wide-aisle ~900mm (wheelchair / trolley) |
| Lock Type | Fail-safe EM lock (270/600 lb) or fail-secure electric bolt |
| Security Logic | Anti-passback, door interlock (mantrap), time-zone & multi-factor |
| Video Door Phone | IP HD video, remote release, mobile-app answer, multi-tenant |
| Outdoor Rating | IP65 weatherproof readers & turnstile housings for exteriors |
| Power Supply | 12V DC SMPS with battery backup; turnstiles 230V AC |
| Integration | Attendance / payroll software, CCTV / VMS, fire-alarm release |
| Housing / Finish | SS 304 brushed turnstile cabinets; powder-coated MS options |
| Certifications | ISO 9001:2015, CE Marked, RoHS-compliant electronics |
| Warranty | 1 year electronics; 2 years turnstile mechanism |
What the Tripod Turnstile is, and who it suits
The Tripod Turnstile is a type of access control & security used across offices, factories, campuses and parking facilities. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Access Control & Security range, the sectors we serve, or every product line.
- Factory and office main entrances
- Warehouse and stores access points
- Parking entries with vehicle identification
- Campus and multi-building sites
- Server rooms and restricted areas
- Attendance-controlled shop floors
- Number of doors, lanes or entry points to control
- Approximate number of users or vehicles
- Reader type: RFID, biometric or face recognition
- Any integration needed with existing attendance or ERP systems
- Power and network availability at each point
- Indoor or outdoor mounting
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Tripod Turnstile: Engineered & Supported Across India
The Tripod Turnstile is manufactured and supported entirely within India. As an Indian manufacturer of access control & security, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian offices, factories, campuses and parking facilities, variable power supply, high ambient temperatures, dust and monsoon humidity, and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities: qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor, Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi, and the Gujarat industrial belt, Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Where the Tripod Turnstile fits
High footfall on a budget: 30 to 40 people per minute through a compact three-arm unit, with drop-arm release on power failure. It suits factory gates, stadium and venue entrances, transport buildings and any point where large numbers pass and cost per lane matters.
Tripod Turnstile vs the alternatives
Against a flap barrier, a tripod is more robust, cheaper and considerably less elegant, so it belongs at a works gate rather than a corporate lobby. Against a full-height turnstile, it controls flow rather than preventing determined climbing. Against a plain door, it enforces one person per credential, which is the reason it exists.
Specifying a Tripod Turnstile
Give the peak throughput, because 30 to 40 per minute per lane is what determines how many lanes a shift change needs. Confirm the reader technology. Say whether the unit is indoors or exposed, and confirm that drop-arm release on power failure suits your egress strategy or whether something more positive is required.
Tripod Turnstile: Frequently Asked Questions
How many people per minute can a tripod handle?
What does drop-arm on power failure mean?
Can someone climb over or crawl under?
Is it suitable for a corporate lobby?
Can it be used outdoors?
Which regions do you install and service in?
Do you provide installation, spares and AMC?
Is the Tripod Turnstile certified?
