500–3,000 kg
Click to enlarge

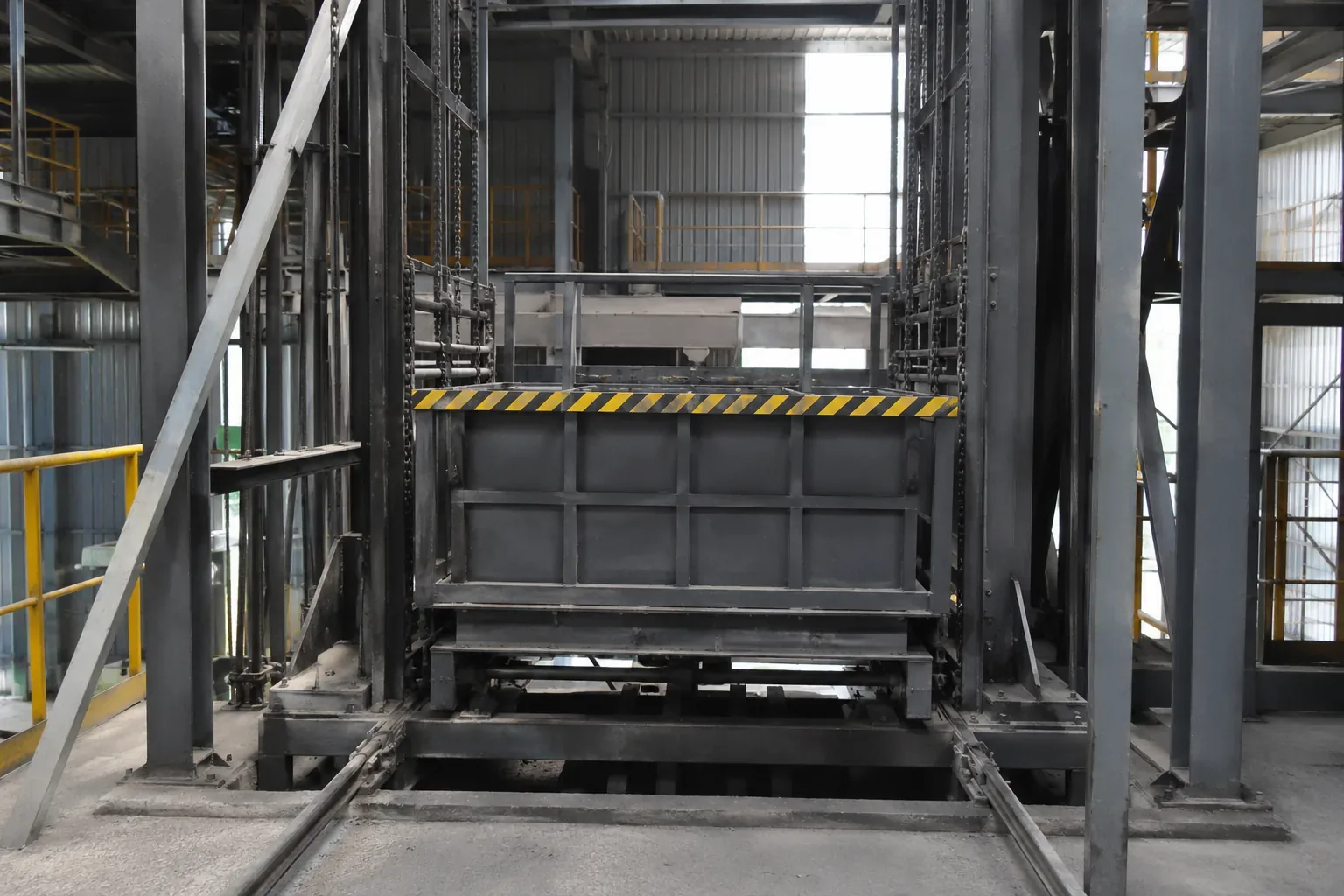

Material Handling Lift
A versatile material handling lift for moving stock, components and trolleys between work levels on the shop floor. Configured with roller or plate decks and gate interlocks, it replaces manual carrying and forklift double-handling between mezzanine and ground.
| Capacity | 500–3,000 kg |
| Deck | roller / plate |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
ISO 9001 · CE marked · Make-in-India · Manufacturing since 2011 · 500+ installations across 50+ cities. See the full Goods Lift range and how we build it, or read more about our plant and capabilities.
Material Handling Lift: Technical Specifications
Complete engineering data for the Yadav Entrance Automation hydraulic goods lift and cargo lift range. All models are built to order, capacity, travel, number of landings and cabin size are configured to your application.
| Parameter | Specification |
|---|---|
| Rated Capacity | 500 kg / 1,000 kg / 2,000 kg / 3,000 kg / 5,000 kg+ (custom on request) |
| Travel & Levels | Up to ~12m travel; 2 to 4 levels (1–2 stop hydraulic or traction) |
| Drive Type | Hydraulic (direct / indirect acting) or traction (MR/MRL): goods-only |
| Cabin Size (Standard) | 1,200×1,000mm; custom up to 3,000×2,500mm |
| Configuration | Enclosed shaft (cargo lift) or open mezzanine floor lift type |
| Power Unit (HPU) | 3.0 kW – 7.5 kW; 415V 3-phase; IP55 enclosure; remote machine cupboard |
| Travel Speed | Approx. 0.10–0.25 m/s (load & drive dependent) |
| Cabin Floor | Anti-skid chequer plate (6–8mm); roller-top deck optional |
| Frame & Shaft | Structural steel / RHS sections: IS 2062 Grade B; fabricated shaft optional |
| Landing Doors | Manual / power gates with electrical interlocks at each landing |
| Safety Devices | Door interlocks, overload cut-off, rupture valve, slack-rope switch, manual lowering on power fail |
| Control | Collective call-send push buttons at each landing + emergency stop |
| Certifications | ISO 9001:2015, CE Marked; designed referencing IS 14665 (goods-only) |
| Warranty | 2 years hydraulic / drive system, 5 years structural frame |
What the Material Handling Lift is, and who it suits
The Material Handling Lift is a type of goods & cargo lifts used across warehouses, loading bays and production floors. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Goods & Cargo Lifts range, the sectors we serve, or every product line.
- Loading bays serving mixed vehicle heights
- Warehouse mezzanine floors
- Production floors moving material between levels
- Cold stores and dispatch areas
- Workshops and maintenance bays
- Godowns handling palletised goods
- Rated capacity required, in kg or tonnes
- Platform size and travel height or number of levels
- Pit availability and depth, where relevant
- Power available: 230V single-phase or 415V three-phase, 50 Hz
- Vehicle bed heights the equipment must serve
- Duty cycle across a normal shift
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Material Handling Lift: Engineered & Supported Across India
The Material Handling Lift is manufactured and supported entirely within India. As an Indian manufacturer of goods & cargo lifts, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian warehouses, loading bays and production floors, variable power supply, high ambient temperatures, dust and monsoon humidity, and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities: qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor, Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi, and the Gujarat industrial belt, Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Where the Material Handling Lift fits
Repetitive transfers within a process: 500 to 3,000 kg on a roller or plate deck, positioned to feed a line, a machine or a packing station. It is a working element of the process rather than a means of getting between floors.
Material Handling Lift vs the alternatives
Against a goods lift serving landings, this exists to move material within an operation and is usually specified around the deck and the interface rather than around travel height. Against a scissor lift, the two overlap; the distinction is that this is specified with the handling method in mind: rollers, transfer, or integration with what sits either side.
Specifying a Material Handling Lift
Describe the operation, not just the load: what feeds the lift, what takes the load off, and whether transfer should be automatic. Give load, deck size and travel. Tell us cycles per hour, since a lift inside a process runs far more than one between floors, and confirm whether controls must interface with a line.
Material Handling Lift: Frequently Asked Questions
Roller deck or plate deck?
Can it be integrated into a production line?
How many cycles per hour can it manage?
Does it need guarding?
What capacity is available?
Which regions do you install and service in?
Do you provide installation, spares and AMC?
Is the Material Handling Lift certified?
