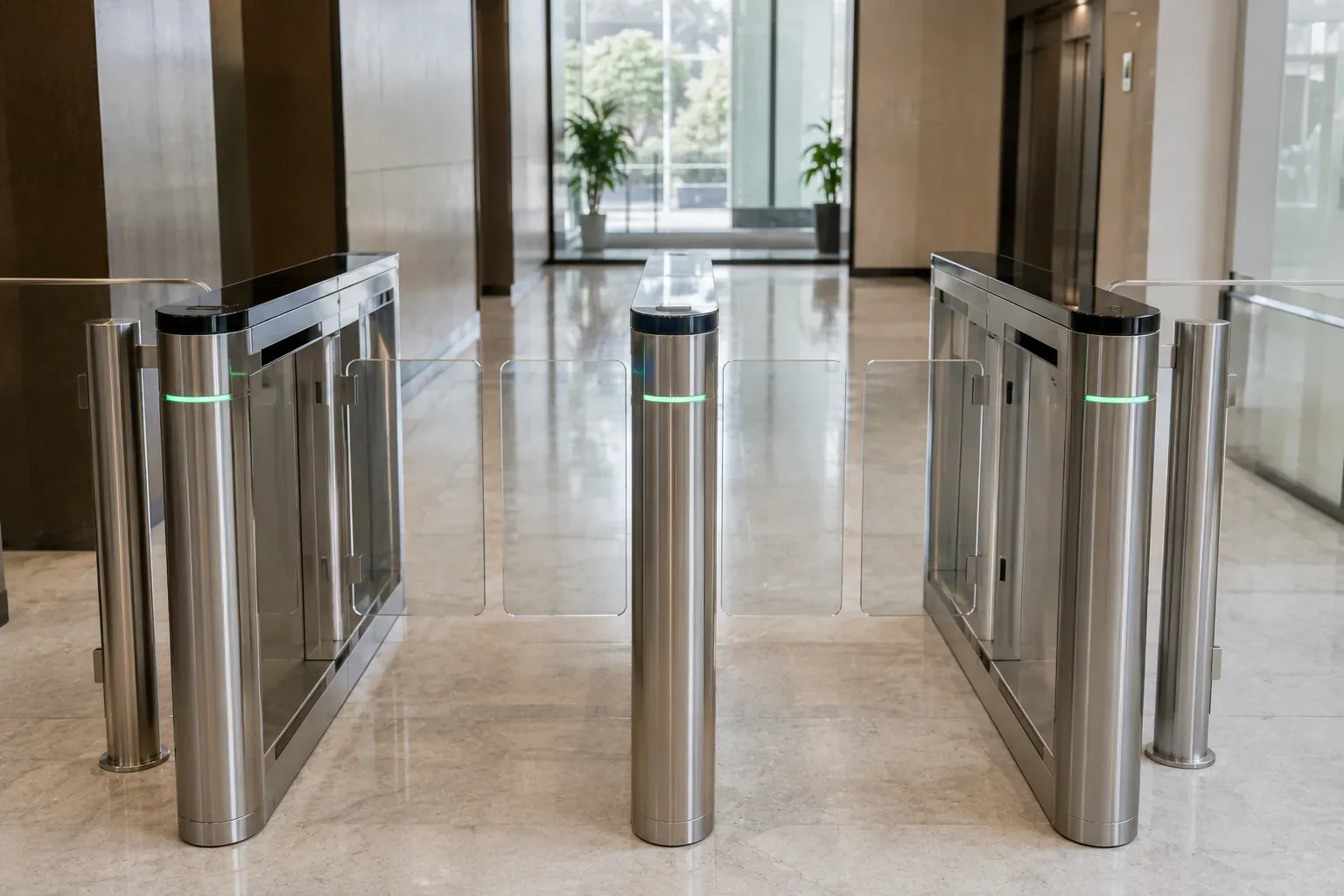

Flap Barrier
Speed and flap barriers deliver fast, elegant pedestrian control in corporate lobbies and metros. Bi-directional retracting flaps clear 30–40 persons/min per lane, with standard and wide-aisle widths for wheelchair and trolley access.
| Lane | std / wide-aisle |
| Throughput | 30–40/min |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
ISO 9001 · CE marked · Make-in-India · Manufacturing since 2011 · 500+ installations across 50+ cities. See the full Access Control System Supplier in India range and how we build it, or read more about our plant and capabilities.
Flap Barrier: Technical Specifications
Complete engineering data for the Yadav Entrance Automation access control and security range. All systems are configured to order, readers, controllers, locks and turnstile lanes are matched to your facility.
| Parameter | Specification |
|---|---|
| Reader Technology | RFID 125 kHz / smart card 13.56 MHz / fingerprint / face / palm |
| Controller Interface | Wiegand 26 / 34-bit & TCP-IP networked controllers (1–4 door) |
| User / Credential Capacity | Up to 100,000 users; 1,00,000+ event logs per controller |
| Turnstile Throughput | 30–40 persons/min per lane (tripod / flap / speed barrier) |
| Lane Width | Standard ~550mm; wide-aisle ~900mm (wheelchair / trolley) |
| Lock Type | Fail-safe EM lock (270/600 lb) or fail-secure electric bolt |
| Security Logic | Anti-passback, door interlock (mantrap), time-zone & multi-factor |
| Video Door Phone | IP HD video, remote release, mobile-app answer, multi-tenant |
| Outdoor Rating | IP65 weatherproof readers & turnstile housings for exteriors |
| Power Supply | 12V DC SMPS with battery backup; turnstiles 230V AC |
| Integration | Attendance / payroll software, CCTV / VMS, fire-alarm release |
| Housing / Finish | SS 304 brushed turnstile cabinets; powder-coated MS options |
| Certifications | ISO 9001:2015, CE Marked, RoHS-compliant electronics |
| Warranty | 1 year electronics; 2 years turnstile mechanism |
What the Flap Barrier is, and who it suits
The Flap Barrier is a type of access control & security used across offices, factories, campuses and parking facilities. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Access Control & Security range, the sectors we serve, or every product line.
- Factory and office main entrances
- Warehouse and stores access points
- Parking entries with vehicle identification
- Campus and multi-building sites
- Server rooms and restricted areas
- Attendance-controlled shop floors
- Number of doors, lanes or entry points to control
- Approximate number of users or vehicles
- Reader type: RFID, biometric or face recognition
- Any integration needed with existing attendance or ERP systems
- Power and network availability at each point
- Indoor or outdoor mounting
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Flap Barrier: Engineered & Supported Across India
The Flap Barrier is manufactured and supported entirely within India. As an Indian manufacturer of access control & security, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian offices, factories, campuses and parking facilities, variable power supply, high ambient temperatures, dust and monsoon humidity, and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities: qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor, Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi, and the Gujarat industrial belt, Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Where the Flap Barrier fits
Corporate lobbies, premium offices, hotels and buildings where the security line should not look like a factory gate. Standard and wide-aisle lanes pass 30 to 40 people per minute, with retracting flaps that read as architecture rather than machinery.
Flap Barrier vs the alternatives
Against a tripod turnstile, the difference is appearance and passage experience: flaps retract smoothly and glass lanes suit a designed reception, where a tripod does not. Robustness is the trade, since flaps are more delicate and cost more. Against an open reception desk, a flap barrier enforces the boundary that a receptionist can only observe.
Specifying a Flap Barrier
Tell us the peak throughput and whether a wide-aisle lane is needed for accessibility and luggage, which in most lobbies it is. Confirm the reader technology and how visitors will be handled, since a lobby has to admit people without cards. Say what happens on a fire alarm and how the lanes will be finished to match the interior.
Flap Barrier: Frequently Asked Questions
Flap barrier or tripod turnstile?
Do I need a wide-aisle lane?
How are visitors handled?
What happens on a fire alarm?
How much throughput per lane?
Which regions do you install and service in?
Do you provide installation, spares and AMC?
Is the Flap Barrier certified?
