Warehouse Lift
A warehouse lift engineered for high-cycle palletised dispatch and storage feeding. Wide chequer-plate cabins take a full pallet or stillage, and duty-rated power packs handle continuous operation alongside dock levelers and conveyors across the loading bay.
| Capacity | 1,000–5,000 kg |
| Cabin | pallet-width |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
ISO 9001 · CE marked · Make-in-India · Manufacturing since 2011 · 500+ installations across 50+ cities. See the full Goods Lift range and how we build it, or read more about our plant and capabilities.
Warehouse Lift: Technical Specifications
Complete engineering data for the Yadav Entrance Automation hydraulic goods lift and cargo lift range. All models are built to order, capacity, travel, number of landings and cabin size are configured to your application.
| Parameter | Specification |
|---|---|
| Rated Capacity | 500 kg / 1,000 kg / 2,000 kg / 3,000 kg / 5,000 kg+ (custom on request) |
| Travel & Levels | Up to ~12m travel; 2 to 4 levels (1–2 stop hydraulic or traction) |
| Drive Type | Hydraulic (direct / indirect acting) or traction (MR/MRL): goods-only |
| Cabin Size (Standard) | 1,200×1,000mm; custom up to 3,000×2,500mm |

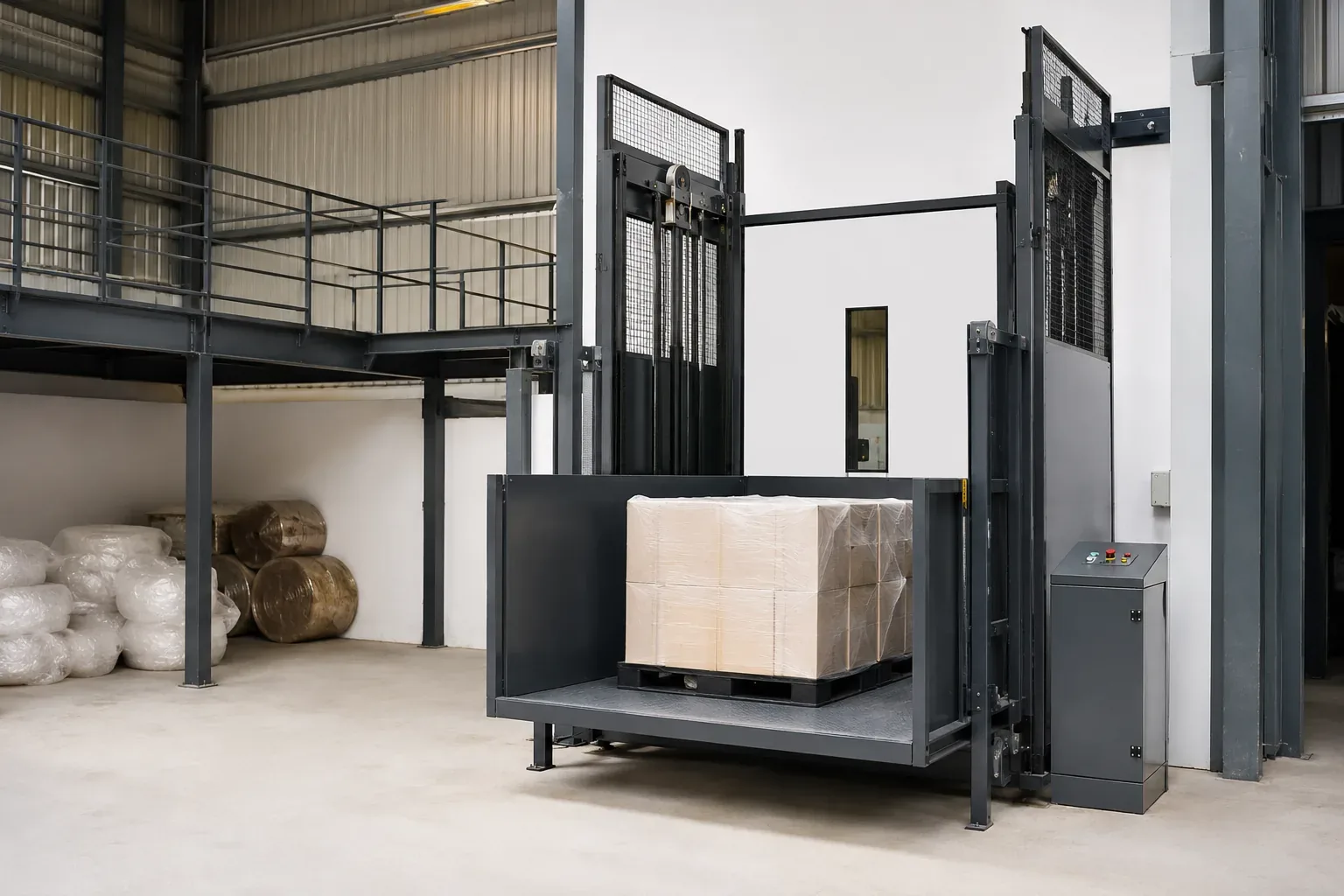

| Configuration | Enclosed shaft (cargo lift) or open mezzanine floor lift type |
| Power Unit (HPU) | 3.0 kW – 7.5 kW; 415V 3-phase; IP55 enclosure; remote machine cupboard |
| Travel Speed | Approx. 0.10–0.25 m/s (load & drive dependent) |
| Cabin Floor | Anti-skid chequer plate (6–8mm); roller-top deck optional |
| Frame & Shaft | Structural steel / RHS sections: IS 2062 Grade B; fabricated shaft optional |
| Landing Doors | Manual / power gates with electrical interlocks at each landing |
| Safety Devices | Door interlocks, overload cut-off, rupture valve, slack-rope switch, manual lowering on power fail |
| Control | Collective call-send push buttons at each landing + emergency stop |
| Certifications | ISO 9001:2015, CE Marked; designed referencing IS 14665 (goods-only) |
| Warranty | 2 years hydraulic / drive system, 5 years structural frame |
What the Warehouse Lift is, and who it suits
The Warehouse Lift is a type of goods & cargo lifts used across warehouses, loading bays and production floors. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Goods & Cargo Lifts range, the sectors we serve, or every product line.
- Loading bays serving mixed vehicle heights
- Warehouse mezzanine floors
- Production floors moving material between levels
- Cold stores and dispatch areas
- Workshops and maintenance bays
- Godowns handling palletised goods
- Rated capacity required, in kg or tonnes
- Platform size and travel height or number of levels
- Pit availability and depth, where relevant
- Power available: 230V single-phase or 415V three-phase, 50 Hz
- Vehicle bed heights the equipment must serve
- Duty cycle across a normal shift
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Warehouse Lift: Engineered & Supported Across India
The Warehouse Lift is manufactured and supported entirely within India. As an Indian manufacturer of goods & cargo lifts, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian warehouses, loading bays and production floors, variable power supply, high ambient temperatures, dust and monsoon humidity, and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities: qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor, Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi, and the Gujarat industrial belt, Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Where the Warehouse Lift fits
Pallet movement in a logistics building: 1,000 to 5,000 kg with a cabin sized to take a pallet without repacking. It suits distribution centres, cold chain buildings with multiple levels, and any warehouse where pallets must move vertically as part of routine flow.
Warehouse Lift vs the alternatives
Against a general goods lift, the difference is that the cabin is dimensioned around a pallet rather than a nominal floor area, which means loads go in as they arrive. Against a scissor lift, it serves proper landings over a longer travel. Against a conveyor system, it is simpler and cheaper where volumes do not justify continuous handling.
Specifying a Warehouse Lift
Tell us your pallet dimensions and how loads are handled onto the platform, since a pallet truck and a forklift place loads very differently. Give the load, travel and stops. Confirm cycles per hour at peak, and say whether the building is temperature-controlled, because that affects component choice.
Warehouse Scissor Lift in detail
Where each one fits, how it compares with the alternatives, and what to decide before you ask for a quote.
Warehouse Scissor Lift
A warehouse scissor lift engineered for high-cycle dispatch and mezzanine feeding. Pairs with dock levelers and conveyors to bridge height differences across the loading bay, with duty-rated power packs for continuous operation.
Where the Warehouse Scissor Lift fits. High-duty logistics: a lift that cycles all shift, integrating with dock equipment or conveyors so pallets move between floor levels as part of a continuous flow rather than as an occasional task.
Warehouse Scissor Lift vs the alternatives. Against a general hydraulic lift, the difference is duty rating and integration. A lift cycling constantly needs components specified for it, and one feeding a conveyor needs its controls to talk to the rest of the line. Specifying an occasional-use lift into a continuous flow is a false economy that shows up as downtime in the busiest part of the building.
Specifying a Warehouse Scissor Lift. Give cycles per hour at peak, not a daily total, since duty is what sizes the lift. Tell us what it integrates with: dock leveller, conveyor, or manual handling. Confirm load, platform size and travel. Say how the upper opening is protected and whether controls need to interface with a wider system.
Warehouse Lift: Frequently Asked Questions
Will a standard pallet fit?
Can a forklift drive into the cabin?
How many cycles can it handle?
Can it work in a cold store?
What protects the landing openings?
Which regions do you install and service in?
Do you provide installation, spares and AMC?
Is the Warehouse Lift certified?
What makes a scissor lift warehouse-duty?
Can a warehouse scissor lift integrate with a conveyor?
How does a warehouse scissor lift work with a dock leveller?
