up to 6T
Click to enlarge

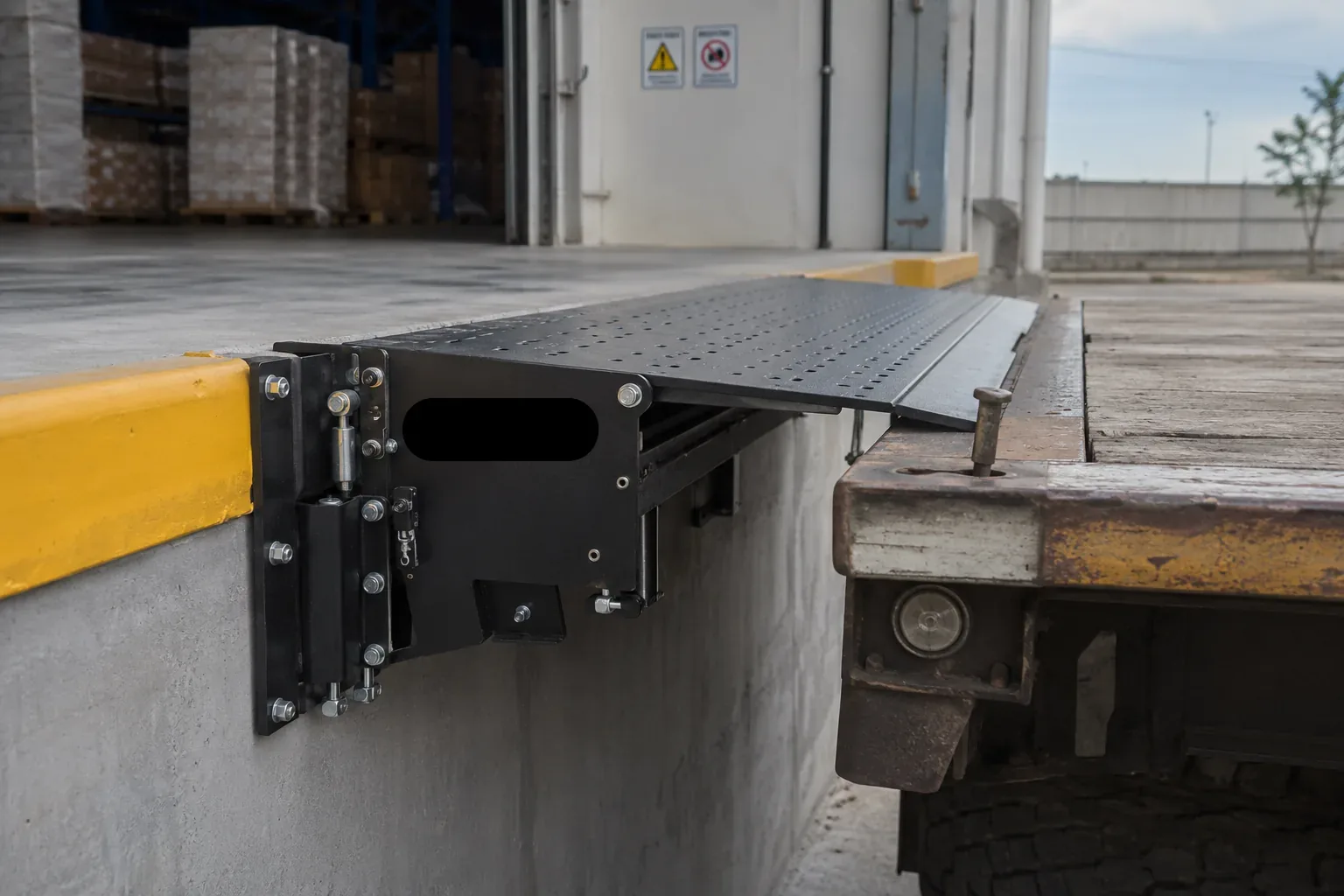

Edge-of-Dock Leveler
A compact edge-of-dock leveler that bolts directly to the dock face where no pit can be cast. Hydraulic or mechanical operation bridges short height differences between dock and trailer — the fastest, lowest-cost way to upgrade an existing loading dock for forklift access.
| Capacity | up to 6T |
| Mount | dock face |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
Dock Levelers Built for India's Loading Bay Reality
Six engineering advantages that make Yadav Entrance Automation dock levelers and loading bay equipment the preferred choice for India's fastest-growing warehouses and logistics parks.
Triple Capacity Range — 6T, 8T, 10T
Our dock leveler range covers every vehicle class operating on Indian roads — from medium-duty LCVs to heavy 22-wheel trailers. The 10T hydraulic dock leveler handles overloaded trucks common in FMCG and automotive supply chains without structural fatigue. Platform width and length are customizable to match your pit dimensions.

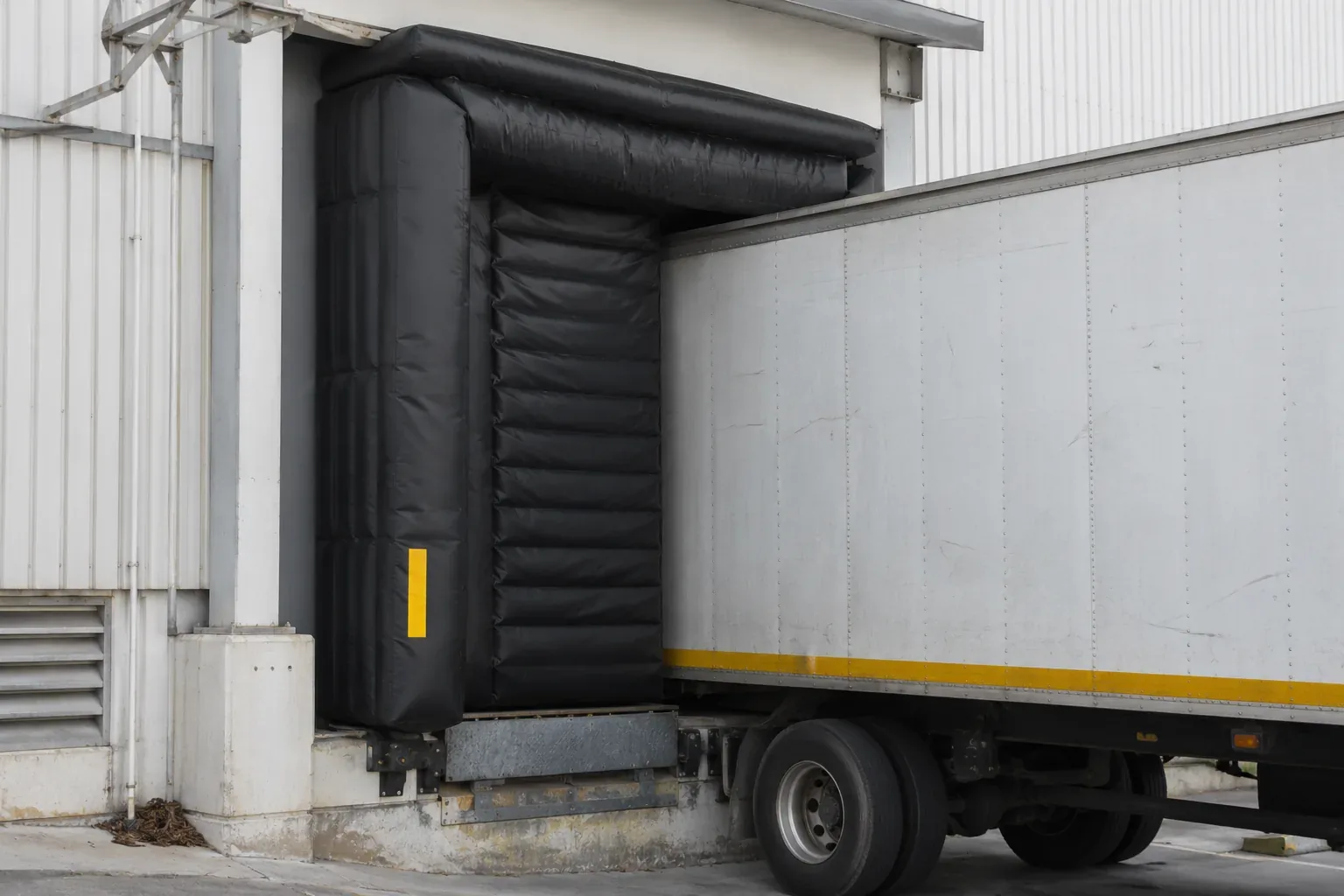

Dock Shelters & Seals — Full Weather Seal
India's monsoons cost warehouses thousands in cargo damage and HVAC energy loss every year. Our inflatable dock shelters and foam dock seals compress around the trailer body to create a continuous weather-tight seal — blocking rain, dust, insects and temperature bleed even with trucks that are 100–200mm off-spec. Critical for cold chain and pharma loading bays.
Integrated Lip Extension — Zero Forklift Gap
Our 400mm hydraulically-deployed lip extension creates a smooth bridge from the dock floor to the truck deck, eliminating the wheel-drop that causes forklift tip-overs and pallet damage. The lip auto-extends on dock leveler activation for safe cross-travel by reach trucks, walkie stackers and pallet movers at the loading dock door.
Hydraulic, Mechanical or Edge-of-Dock
Choose a hydraulic dock leveler for high-cycle bays with single-button operation, a mechanical (spring) dock leveler where power is unavailable at the pit, or an edge-of-dock leveler that bolts to the dock face when no pit can be cast. One vendor engineers the right configuration for your existing or greenfield loading dock.
Safety-First Design — IS 7155 Compliant
Every dock leveler ships with a safety lock bar that mechanically locks the platform at working height during loading — no dependence on hydraulic pressure alone. Velocity fuses on the cylinder give fail-safe lowering on hose failure, and a toe-guard mesh and dock bumpers protect operators and the pit frame during truck approach.
Complete Loading Bay Equipment
Beyond the dock leveler itself, Yadav Entrance Automation supplies the complete loading bay equipment package — dock shelters, dock seals, dock bumpers, wheel guides and dock doors. Procurement from a single vendor means unified installation, one AMC contract and one call centre for all loading dock service needs.
Dock Levelers for Every Loading Bay Type
Yadav Entrance Automation dock levelers and loading bay equipment are deployed across eight major industrial sectors — each with specific load, temperature and throughput requirements our engineering team addresses at specification stage.
Multi-temp warehouses and e-commerce fulfilment hubs requiring high-frequency dock cycling — 100+ truck movements per day per bay
CKD parts receiving docks with oversize pallets and high-throughput dispatch bays needing 10T dock levelers and tight dock seals
High-volume loading bay operations with mixed vehicle types and consumer goods requiring protected dock shelters year-round
Temperature-controlled docks where dock shelter and dock seal quality directly determine refrigeration energy costs and cargo compliance
GMP-compliant loading areas requiring SS surface finishes, washdown-capable dock levelers and positive-pressure bay designs
Raw material receiving docks and finished goods dispatch bays with edge-of-dock levelers where pits cannot be cast
Distribution centre docks supporting same-day replenishment cycles, store-ready picking areas and secure dock doors
Air cargo handling terminals and airside bonded warehouse docks with ULD-compatible platform heights and dock seals
Edge-of-Dock Leveler — Technical Specifications
Complete engineering data for the Yadav Entrance Automation dock leveler (dock leveller) and loading bay equipment range. All dock leveler specifications are for standard pit-mounted models — mechanical and edge-of-dock variants available on request.
| Parameter | Specification |
|---|---|
| Dock Leveler Capacity | 6,000 kg / 8,000 kg / 10,000 kg (three standard ratings) |
| Platform Size (Standard) | 2,000mm × 2,500mm; custom sizes up to 2,500mm × 3,000mm |
| Vertical Travel Range | ±300mm (300mm above to 300mm below dock floor level) |
| Operating Mechanism | Hydraulic (standard) / Mechanical spring (economy) / Edge-of-dock |
| Hydraulic Power Unit | 1.5 kW motor (6T / 8T) / 2.2 kW motor (10T); 230V single-phase or 415V 3-phase |
| Lip Extension Length | 400mm standard; 500mm extended option for low-floor trailers |
| Lip Extension Mechanism | Hydraulic powered; auto-extend on leveler activation |
| Platform Surface | Anti-skid chequer plate (MS) — 6mm plate; 8mm heavy duty for 10T |
| Dock Shelter Type | Inflatable foam / Inflatable curtain / Retractable; brush-seal option |
| Dock Seal Type | Foam block / Brush seal; adjustable to trailer widths 2,200mm – 2,600mm |
| Edge-of-Dock Leveler | Bolt-on dock-face mount; hydraulic or mechanical; up to 6,000 kg |
| Frame Material | Structural steel / RHS sections — IS 2062 Grade B |
| Pit Frame Construction | 50mm × 50mm angle iron, fully welded, hot-dip galvanized option |
| Control | Push button panel + emergency stop; optional wireless remote |
| Safety Devices | Safety lock bar, velocity fuse (fail-safe lowering), toe guard mesh, dock bumpers |
| Surface Finish | Epoxy primer (2 coats) + industrial enamel / hot-dip galvanized on request |
| Certifications | ISO 9001:2015, IS 7155 (dock levelers), NBC 2016 compliant installation |
| Warranty | 2 years hydraulic system, 5 years structural frame |
What the Edge-of-Dock Leveler is, and who it suits
The Edge-of-Dock Leveler is a type of dock levelers used across warehouses, loading bays and production floors. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Dock Levelers range, the sectors we serve, or every product line.
- Loading bays serving mixed vehicle heights
- Warehouse mezzanine floors
- Production floors moving material between levels
- Cold stores and dispatch areas
- Workshops and maintenance bays
- Godowns handling palletised goods
- Rated capacity required, in kg or tonnes
- Platform size and travel height or number of levels
- Pit availability and depth, where relevant
- Power available — 230V single-phase or 415V three-phase, 50 Hz
- Vehicle bed heights the equipment must serve
- Duty cycle across a normal shift
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Edge-of-Dock Leveler — Engineered & Supported Across India
The Edge-of-Dock Leveler is manufactured and supported entirely within India. As an Indian manufacturer of dock levelers, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian warehouses, loading bays and production floors — variable power supply, high ambient temperatures, dust and monsoon humidity — and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities — qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor — Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi — and the Gujarat industrial belt — Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Dock Leveler Variant Comparison
| Configuration | Capacity | 8T Hydraulic ⭐ Most Popular | Mechanism | Best For |
|---|---|---|---|---|
| Edge-of-Dock Leveler | up to 6,000 kg | Bolt-on dock face | Hydraulic / Mechanical | No-pit retrofit docks |

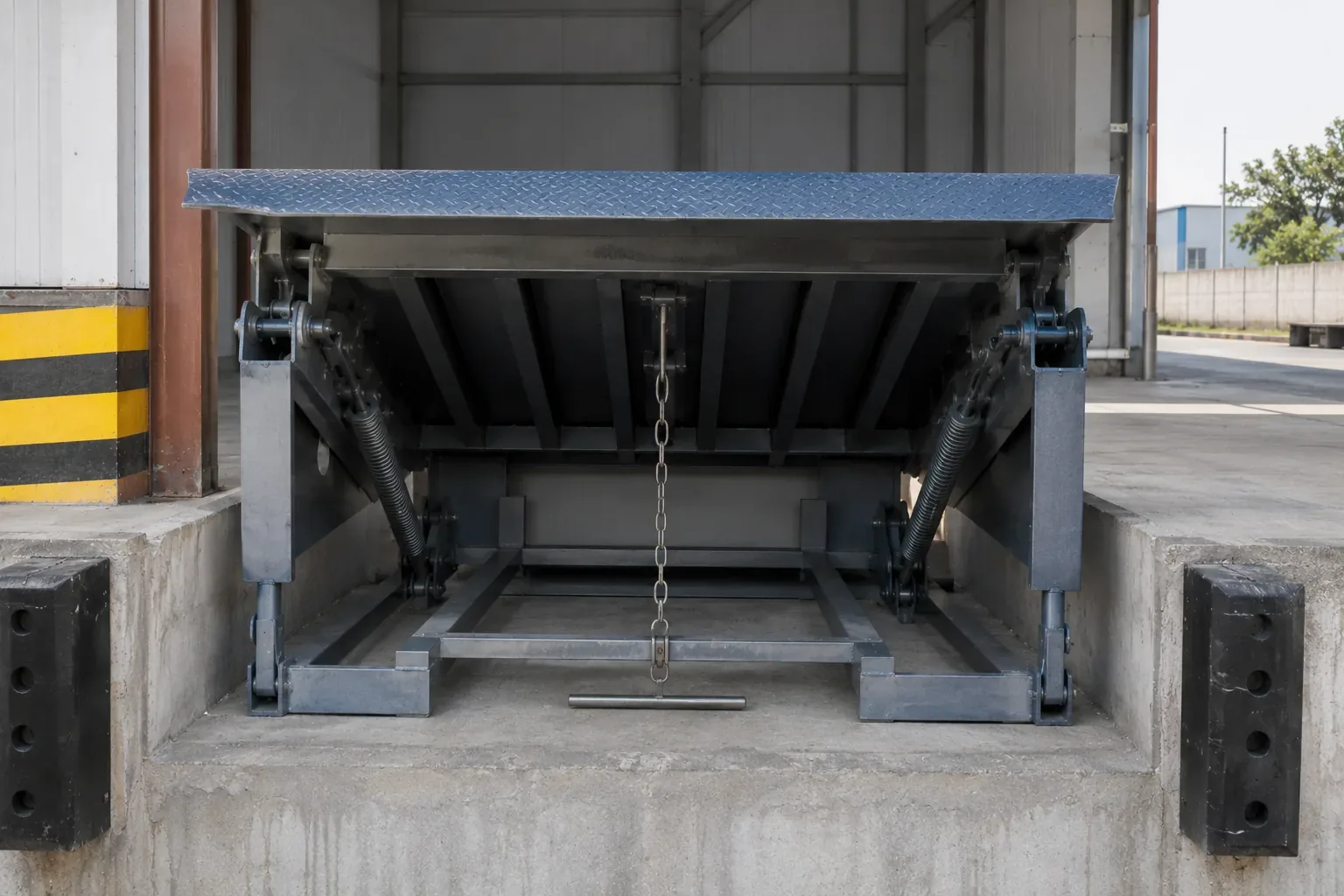

| Mechanical Dock Leveler 6T | 6,000 kg | Spring-operated | Mechanical | No-power, moderate traffic |

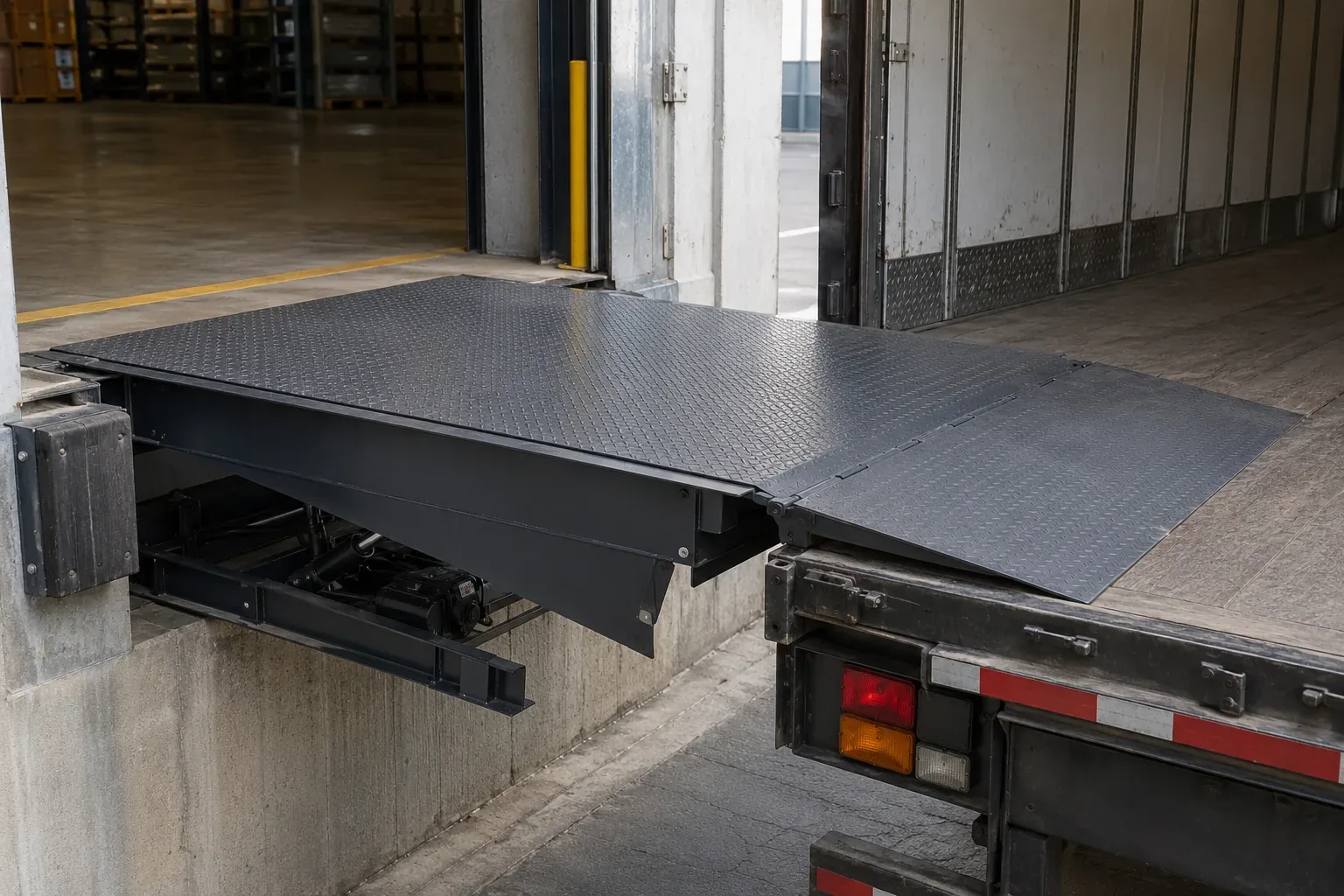

| Hydraulic Dock Leveler 6T | 6,000 kg | Single-button | Hydraulic | Light trucks, LCV |
| Hydraulic Dock Leveler 8T | 8,000 kg | Single-button | Hydraulic | Medium HCV, standard trailer |
| Hydraulic Dock Leveler 10T | 10,000 kg | Heavy-duty | Hydraulic | Heavy HCV, oversize trailers |
| Dock Shelter + Dock Seal | 2,200–2,600mm trailer | Inflatable / foam | Weather seal | Cold chain, pharma bays |
Certified to International Standards
Our dock leveler range carries certifications required by India's largest 3PL operators, multinational manufacturers and government procurement bodies.
9001
Quality management certification covering design, manufacture, installation and after-sales service of all dock levelers and loading bay equipment.
7155
Indian Standard for dock leveling devices — covering structural design loads, safety factors and testing requirements for all capacity ratings sold in India.
2062
Structural steel to Indian Standard IS 2062 Grade B for platform decks and pit frames — certified load and fatigue performance.
2016
National Building Code of India 2016 compliant dock installation methodology — required for warehouse occupancy certificate and fire NOC clearance.
in India
100% manufactured at our registered Indian facilities — qualifies for government procurement preference and PSU tenders.
Edge-of-Dock Leveler — Frequently Asked Questions
Is the Edge-of-Dock Leveler manufactured in India?
Which regions do you install and service in?
What power supply does the Edge-of-Dock Leveler need?
Do you provide installation, spares and AMC?
How do I get a quote for the Edge-of-Dock Leveler?
Is the Edge-of-Dock Leveler certified?
Dock Bay Design + Quote in 24 Hours
No generic quotes, no run-around.
In-House Manufacturing
Every dock leveler manufactured under ISO 9001 quality control — no imported products, no middlemen.
Free Bay Survey & Civil Drawing
Our engineers survey your dock pit or design a new one and supply a full civil drawing for your contractor — at no charge.
AMC Available Nationwide
Annual Maintenance Contracts covering all dock levelers and loading bay equipment with a 4-hour emergency response SLA.
