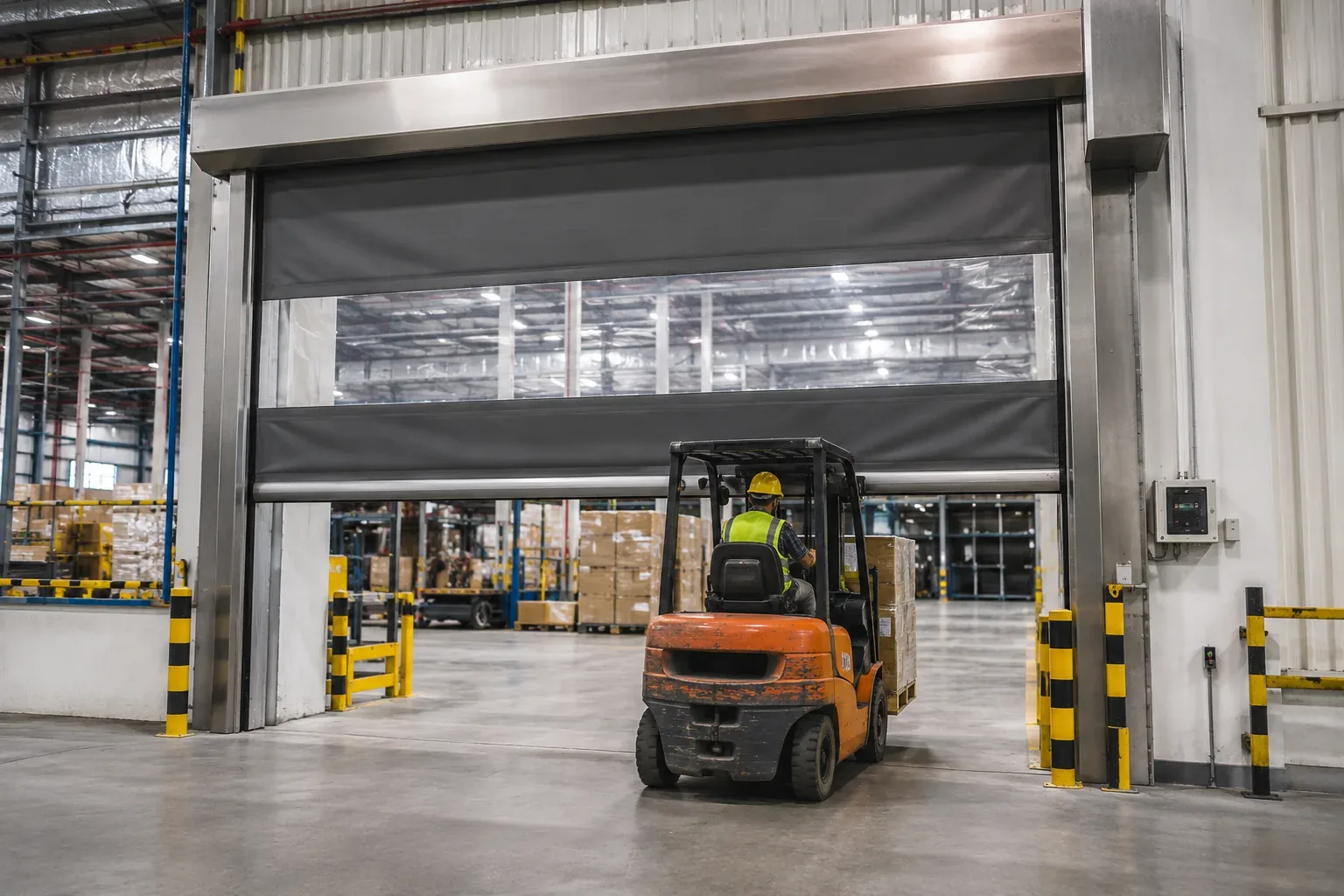

Industrial High-Speed Door
A heavy-duty industrial high speed door for large external openings, with wind-locks and a reinforced curtain rated to 120 km/h wind load. Built for warehouse, logistics and manufacturing bays demanding a rapid, durable door.
| Wind load | up to 120 km/h |
| Width | up to 10m |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
Engineered for Every Demand
Six engineering advantages that make our high speed doors the preferred choice for India's most demanding industrial facilities.
High Cycle Life — 500,000 Cycles
Tested and certified for 500,000 full open-close cycles. Our doors are built for facilities that run 24/7 — automotive paint lines, pharma clean corridors, cold storage docks — without degradation in speed or seal integrity.
Energy Efficient by Design
Fast 2.5 m/s opening speed dramatically reduces doorway open time, cutting HVAC energy loss by up to 40% in temperature-controlled facilities. The tight PVC curtain seals out dust, insects, and contaminants when closed.
Custom Dimensions — Up to 10m × 8m
Every door is manufactured to your opening dimensions. Widths from 1,000mm to 10,000mm, heights from 1,500mm to 8,000mm. Standard RAL colours or custom powder coat finish. Stainless steel hardware available for food and pharma environments.
Low Maintenance Architecture
Self-lubricating guide rails, sealed drive unit, and modular PVC panel design mean annual servicing requires only 2–4 man-hours. Replacement panels can be installed in under 30 minutes without specialist tools.
Safety Sensor Suite Standard
Every installation includes radar-based motion detection, photo-electric bottom edge safety, and emergency break-out capability. Our IP55 control panel includes PLC logic with remote diagnostics via optional GSM module.
Fast Installation — 1–2 Days
Our trained installation teams complete a single door in 6–10 hours. Pre-assembled header box, pre-wired control panel, and self-drilling guide rail anchors eliminate on-site fabrication. Zero structural modification required in most cases.
The Right Door for Every Sector
High speed doors are installed across eight major industrial verticals — each with specific performance requirements our engineering team addresses at specification stage.
Paint booth entry/exit, body shop clean zones, press shops requiring rapid cycle separation
Cleanroom airlock access, controlled environment corridors — GMP compliant, SS304 hardware
Cold storage entries, blast freezer access, -20°C rated PVC curtains with anti-freeze option
Loading dock doors, cross-dock terminals, sortation facility throughput optimization
HACCP zone separation, insect/pest barrier, washdown IP65 rated for daily sanitization
Server room access control, positive pressure corridor maintenance, ESD-safe panel option
Hangar apron access doors, MRO facility bays — high wind load rating for exposed locations
Turbine hall separation, coal handling plant dust barriers, high-temperature environment rated
Industrial High-Speed Door — Technical Specifications
Complete engineering data for the High Speed Door series. All specifications subject to final design confirmation for custom dimensions.
| Parameter | Specification |
|---|---|
| Opening Speed | Up to 2.5 m/s (adjustable 0.5–2.5 m/s) |
| Closing Speed | 0.5–0.8 m/s (with safety ramp-down) |
| Maximum Door Width | 10,000 mm (single curtain); wider by multi-curtain |
| Maximum Door Height | 8,000 mm |
| Panel / Curtain Material | 2mm reinforced PVC fabric — 650 g/m² density |
| Transparency Option | PVC vision panels up to 30% of curtain area |
| Drive System | 3-phase 0.75 kW AC motor; single-phase option available |
| Control Panel | NEMA-rated / IP55 PLC panel; IP65 on request |
| Power Supply | 415V / 3-phase / 50 Hz (or 230V single-phase) |
| Operating Temperature | -20°C to +60°C ambient |
| Cycle Life (Tested) | 500,000 cycles — TÜV/CE type-tested |
| Wind Load | Up to 120 km/h (Class 4 per EN 12424) |
| Noise Level | < 68 dB at 1m from door (operating) |
| IP Rating | IP55 standard; IP65 available for washdown environments |
| Safety Devices | Radar motion sensor + photo-electric safety edge standard |
| Crash Recovery | Automatic soft-edge rewind — no manual reset required |
| Emergency Operation | Manual chain override + 4-hour battery backup UPS |
| Guide Rail Material | Hot-dip galvanized steel; SS304 option for food/pharma |
| Header Box | Powder-coated steel; fully enclosed motor housing |
| Finish / Color | Standard RAL 7035 / 9002; custom RAL on request |
| Certifications | ISO 9001:2015, CE Marked, EN 13241, EN 12978 |
| Warranty | 2 years motor, 3 years structure, 1 year PVC curtain |
What the Industrial High-Speed Door is, and who it suits
The Industrial High-Speed Door is a type of high speed doors used across warehouses, factories, cold stores and commercial buildings. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full High Speed Doors range, the sectors we serve, or every product line.
- Warehouse and distribution-centre openings
- Factory and production-floor entrances
- Cold stores and temperature-controlled rooms
- Clean rooms and pharmaceutical areas
- Loading bays and dispatch docks
- Commercial building entrances
- Clear opening width and height (the daylight opening, not the wall opening)
- Lintel / headroom above the opening
- Side-room free each side for guides and motor
- Power available at the opening — 230V single-phase or 415V three-phase, 50 Hz
- Approximate cycles per day
- Any fire-rating, temperature or hygiene requirement
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Industrial High-Speed Door — Engineered & Supported Across India
The Industrial High-Speed Door is manufactured and supported entirely within India. As an Indian manufacturer of high speed doors, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian warehouses, factories, cold stores and commercial buildings — variable power supply, high ambient temperatures, dust and monsoon humidity — and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities — qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor — Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi — and the Gujarat industrial belt — Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Compare All HSD Variants
Choose the right configuration for your facility. All variants share the same drive platform, control system, and safety architecture — only the curtain type and frame differ.
| Feature | PVC Roll-Up ⭐ Most Popular | Self-Repairing | Cold Storage | Clean Room |
|---|---|---|---|---|
| Max Opening Speed | 2.5 m/s | 2.0 m/s | 1.5 m/s | 1.2 m/s |
| Max Width | 10,000 mm | 6,000 mm | 4,000 mm | 3,600 mm |
| Temperature Rating | -20°C to +60°C | 0°C to +60°C | -20°C / -30°C freezer | +5°C to +40°C |
| Crash Recovery | Soft-edge rewind | Self-repairing zip-back | Soft-edge rewind | Soft-edge rewind |
| Certifications | ISO 9001, CE, EN 13241 | ISO 9001, CE | ISO 9001, CE | ISO 9001, CE, GMP |
| Best For | Warehouse, Logistics, Automotive | High-traffic forklift bays | Cold rooms, refrigerated docks | Pharma, Food, Biotech |
| Delivery Lead Time | 3–4 weeks | 4–5 weeks | 5–6 weeks | 5–6 weeks |
Certified to International Standards
Our manufacturing facility and product range carry certifications from globally recognised bodies — ensuring compliance with Indian regulations and multinational procurement requirements.
9001
Quality management system certification covering design, manufacture, installation, and after-sales service of all industrial door products.
European conformity marking per EN 13241 (industrial doors). Required by all multinational clients and confirms compliance with EU machinery directive 2006/42/EC.
13241
The harmonized standard for industrial, commercial, and garage doors and gates. Our products meet all performance classes for wind load, water tightness, and air permeability.
2016
National Building Code of India 2016 compliant — required for installations in permitted buildings across all Indian states. Essential for occupancy certificate clearance.
in India
100% manufactured at our registered Indian facilities. Qualifies for government procurement preferences and PSU tender eligibility under DPIIT Make in India guidelines.
Industrial High-Speed Door — Frequently Asked Questions
Is the Industrial High-Speed Door manufactured in India?
Which regions do you install and service in?
What power supply does the Industrial High-Speed Door need?
Do you provide installation, spares and AMC?
How do I get a quote for the Industrial High-Speed Door?
Is the Industrial High-Speed Door certified?
Precise Quotes in 24 Hours — No Guesswork
Our engineers review every enquiry and provide a detailed quotation with drawings, lead times, and a full bill of materials. No run-around.
In-House Manufacturing
No middlemen. Every door manufactured under ISO 9001 quality control.
Free Site Survey
Our engineers visit your facility, measure the opening, and check structural suitability — at no charge.
AMC & Service Plans Available
Comprehensive Annual Maintenance Contracts with guaranteed 4-hour emergency response across India.
