1,000–6,000 kg
Click to enlarge

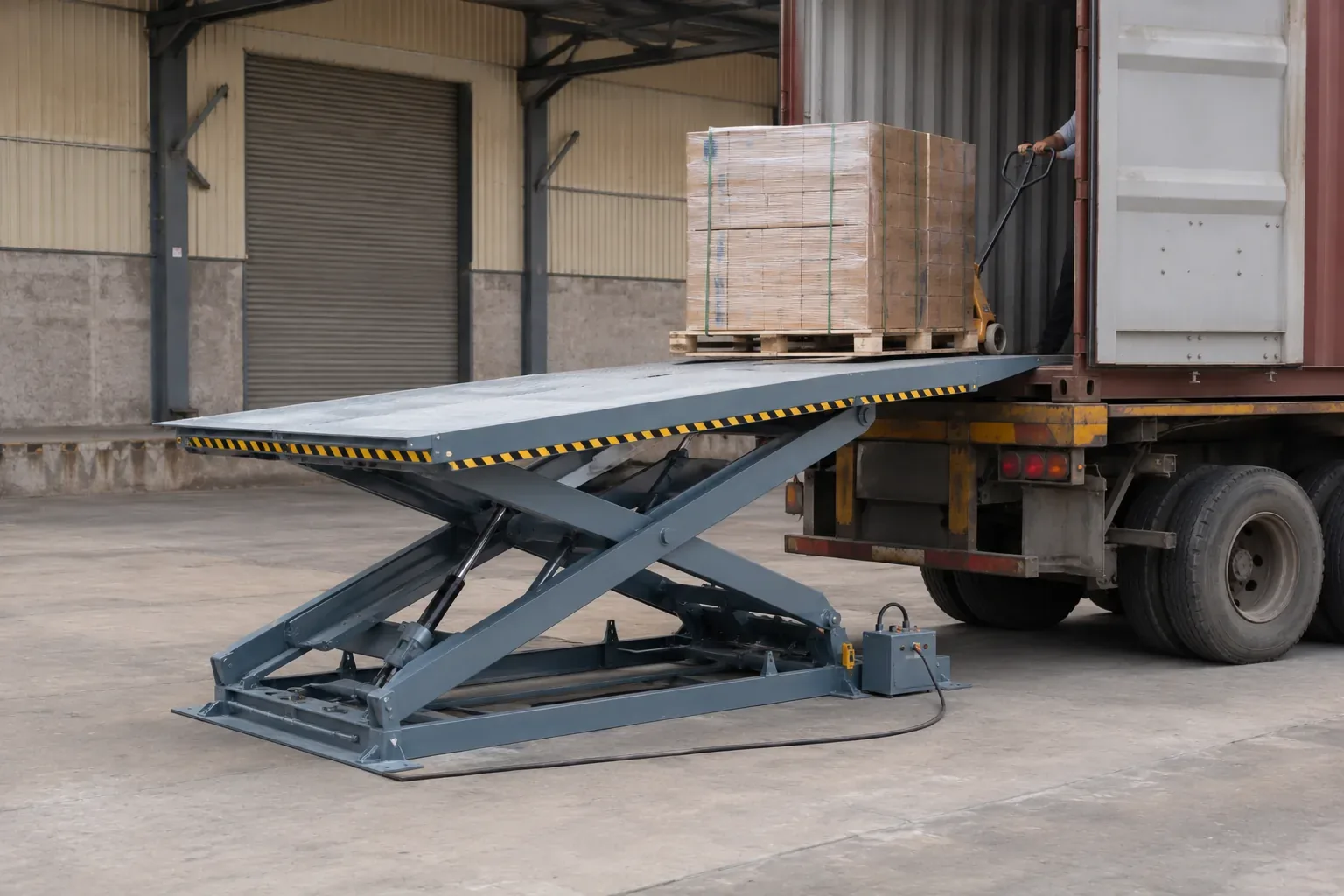

Loading-Unloading Lift
A loading-unloading scissor lift that bridges truck-bed to floor height where a dock leveler pit isn't possible. Hydraulic platform raises pallets from ground to vehicle deck safely, replacing manual lifting and forklift double-handling.
| Capacity | 1,000–6,000 kg |
| Use | truck ↔ floor |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
Hydraulic Scissor Lifts Built for Indian Industry
Six engineering advantages that make Yadav Entrance Automation hydraulic scissor lifts the preferred choice for warehouses, automotive plants and production floors across India.
Capacity from 500 kg to 10,000 kg
Our hydraulic scissor lift range covers every load class — from 500 kg maintenance platforms to 10,000 kg heavy-duty lifts for die handling and press-tool changes in automotive plants. Single, double and triple-scissor designs deliver the right travel height for each capacity.
Fail-Safe Safety as Standard
Every scissor lift ships with a mechanical maintenance prop, velocity fuses on each cylinder for controlled descent on hose failure, pressure-relief valves preventing overload, and anti-shear toe guards. Hold-to-run controls stop motion the instant the operator releases.
Precision Hydraulics, Low Maintenance
Chrome-plated cylinder rods, IP55 power packs and German-profile seals deliver smooth, drift-free lifting cycle after cycle. The compact HPU mounts remotely or on-frame, and all wear parts are stocked nationally for rapid replacement.
Pit-Mounted or Mobile

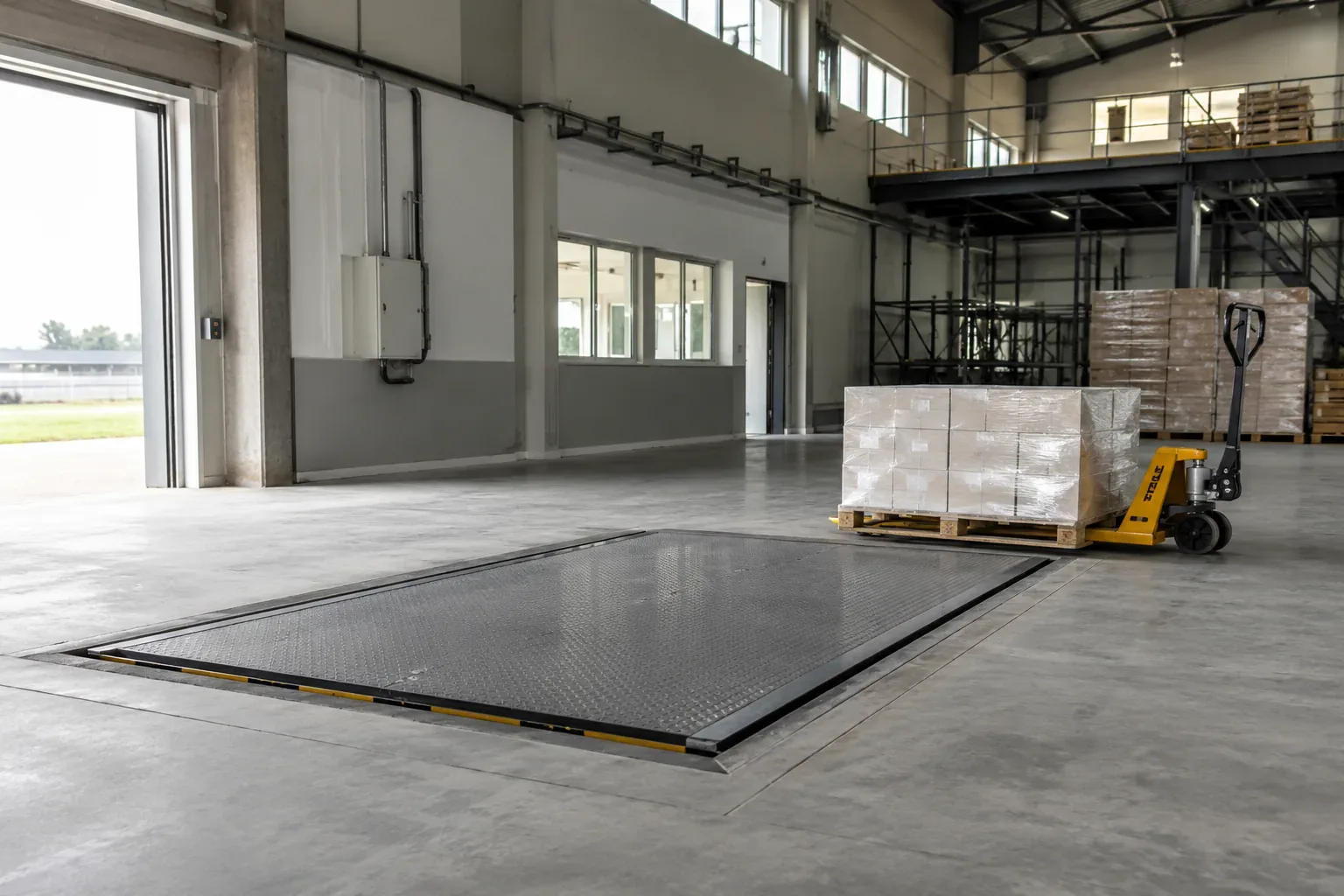

Choose a flush pit-mounted scissor lift for smooth pallet roll-on at floor level, or a mobile scissor lift on castors for flexible maintenance and order-picking across the shop floor. Goods and warehouse configurations integrate with conveyors and mezzanines.
Custom Platform Sizes
Platform sizes from 1,200×1,000mm up to 3,000×2,000mm, with roller tops, turntables, tilting decks and safety rails to order. We design to your load footprint, travel height and pit dimensions — not a fixed catalogue size.
Pan-India Install & AMC
Our service network installs and maintains scissor lifts nationwide, with Annual Maintenance Contracts carrying a 4-hour emergency response SLA. One vendor for manufacture, installation, spares and service — no middlemen.
Where Scissor Lifts Are Used
Yadav Entrance Automation scissor lifts are deployed across India's warehousing, automotive, manufacturing and logistics sectors — each with specific load, height and duty-cycle requirements our engineers address at specification stage.
Mezzanine feeding, dispatch bay loading-unloading, and order-picking platforms in high-throughput distribution centres
Die handling, press-tool changes, and ergonomic assembly lifts on the line; car scissor lifts for service workshops
Inter-floor goods transfer, machine loading, and work-positioning lifts that bring components to ergonomic height
Mobile scissor lifts for safe elevated access to plant, lighting and overhead conveyors across multi-bay facilities
Palletised goods movement between storage and dispatch, replacing manual lifting and reducing handling injuries
Loading-unloading lifts at refrigerated docks where a pit isn't viable, bridging truck-bed to floor height
SS-clad, washdown-capable lift tables for GMP areas requiring clean, contamination-free vertical handling
Car scissor lifts for stack parking and under-body service in basements and multi-level service centres
Loading-Unloading Lift — Technical Specifications
Complete engineering data for the Yadav Entrance Automation hydraulic scissor lift range. All models are built to order — capacity, travel height and platform size are configured to your application.
| Parameter | Specification |
|---|---|
| Rated Capacity | 500 kg / 1,000 kg / 2,000 kg / 5,000 kg / 10,000 kg (custom on request) |
| Travel Height | 1,000mm (single) / 2,000mm (double) / 3,000mm (triple scissor) |
| Lowered Height | 200mm – 400mm (surface) / floor level (pit-mounted) |
| Platform Size (Standard) | 1,200×1,000mm; custom up to 3,000×2,000mm |
| Operating Mechanism | Hydraulic, double-acting cylinders with counter-balance |
| Power Unit (HPU) | 1.5 kW – 3.0 kW; 230V single-phase or 415V 3-phase; IP55 enclosure |
| Lifting Speed | Approx. 15–40 sec full travel (load & height dependent) |
| Platform Surface | Anti-skid chequer plate (6–8mm); roller-top or turntable optional |
| Frame Material | Structural steel / RHS sections — IS 2062 Grade B |
| Control | Hold-to-run push button + emergency stop; wireless pendant optional |
| Safety Devices | Maintenance prop, velocity fuse, pressure-relief valve, anti-shear toe guard, safety rails |
| Surface Finish | Epoxy primer (2 coats) + industrial enamel; hot-dip galvanized on request |
| Certifications | ISO 9001:2015, CE Marked (EU Machinery Directive 2006/42/EC) |
| Warranty | 2 years hydraulic system, 5 years structural frame |
What the Loading-Unloading Lift is, and who it suits
The Loading-Unloading Lift is a type of scissor lifts used across warehouses, loading bays and production floors. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Scissor Lifts range, the sectors we serve, or every product line.
- Loading bays serving mixed vehicle heights
- Warehouse mezzanine floors
- Production floors moving material between levels
- Cold stores and dispatch areas
- Workshops and maintenance bays
- Godowns handling palletised goods
- Rated capacity required, in kg or tonnes
- Platform size and travel height or number of levels
- Pit availability and depth, where relevant
- Power available — 230V single-phase or 415V three-phase, 50 Hz
- Vehicle bed heights the equipment must serve
- Duty cycle across a normal shift
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Loading-Unloading Lift — Engineered & Supported Across India
The Loading-Unloading Lift is manufactured and supported entirely within India. As an Indian manufacturer of scissor lifts, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian warehouses, loading bays and production floors — variable power supply, high ambient temperatures, dust and monsoon humidity — and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities — qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor — Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi — and the Gujarat industrial belt — Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Scissor Lift Variant Comparison
| Configuration | Capacity | Hydraulic (Goods) ⭐ Most Popular | Travel Height | Best For |
|---|---|---|---|---|
| Mobile Scissor Lift | 300–1,000 kg | Battery / mains | 1,000–1,500mm | Maintenance, picking |

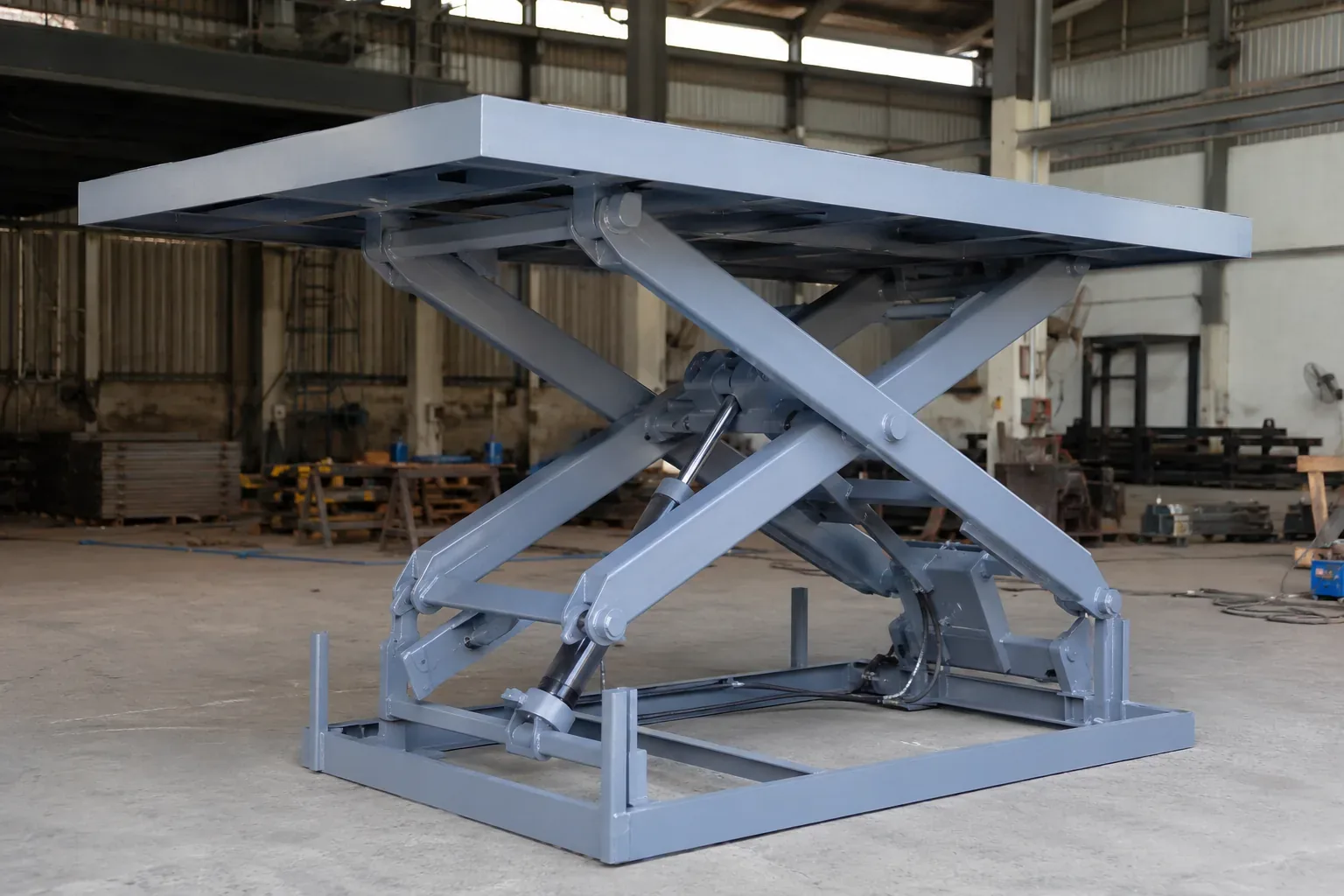

| Hydraulic Scissor Lift | 1,000–2,000 kg | Pit or surface | 1,500–2,000mm | Inter-floor goods |

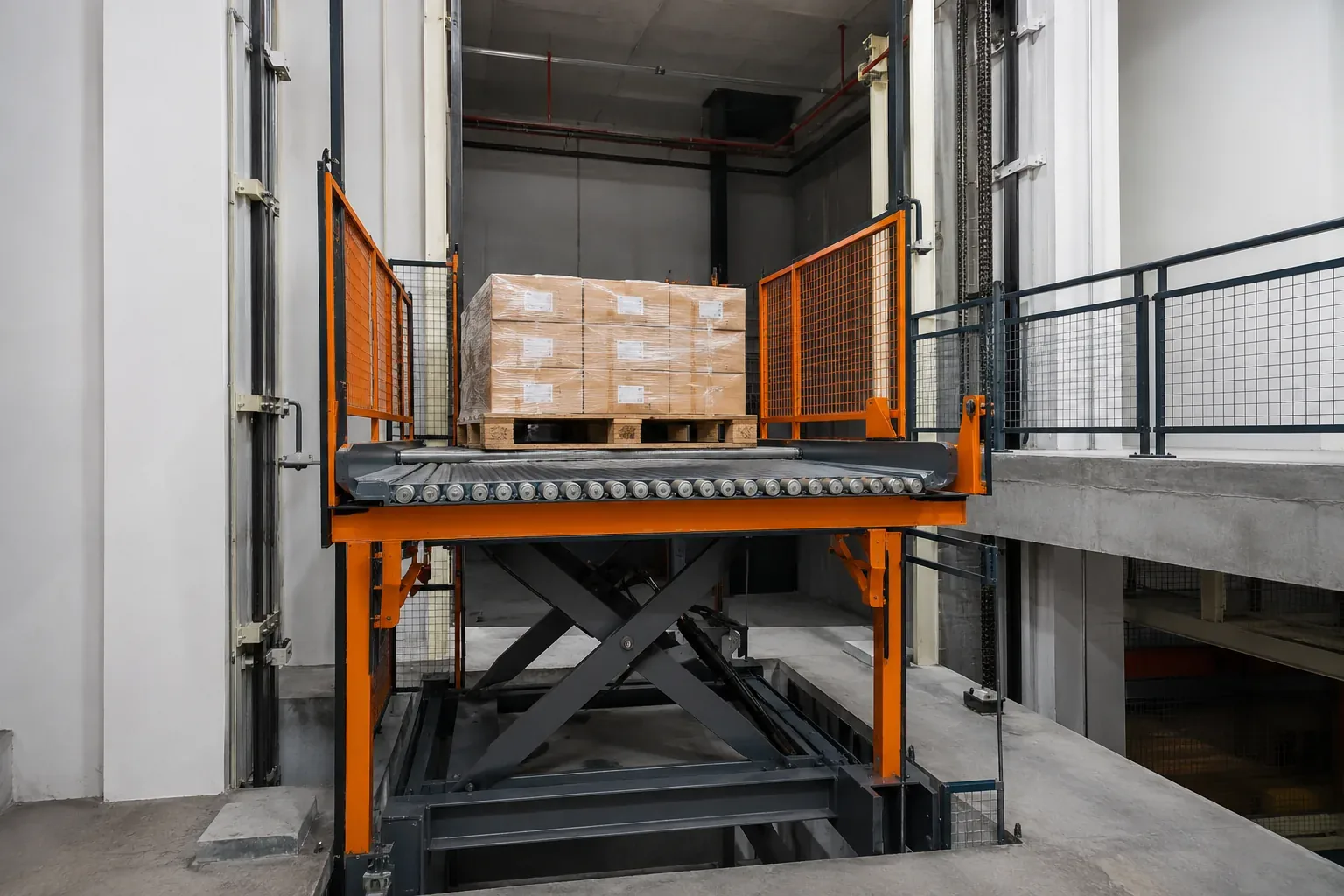

| Goods Scissor Lift | 2,000–5,000 kg | Roller / plate deck | 2,000–3,000mm | Mezzanine, dispatch |
| Car Scissor Lift | 3,000–4,000 kg | Low-profile | 1,800–2,000mm | Workshop, parking |
| Heavy-Duty / Loading-Unloading | 5,000–10,000 kg | Twin cylinder | 1,500–3,000mm | Die handling, dock |
Certified to International Standards
Our scissor lift range carries the certifications required by India's largest 3PL operators, multinational manufacturers and government procurement bodies.
9001
Quality management certification covering design, manufacture, installation and after-sales service of all scissor lifts and lift tables.
European conformity per EU Machinery Directive 2006/42/EC — required by multinational clients and confirming safety compliance.
2062
Structural steel to Indian Standard IS 2062 Grade B for scissor legs and base frames — certified load and fatigue performance.
2016
Installation methodology compliant with the National Building Code of India 2016 for industrial occupancy and safety clearance.
in India
100% manufactured at our registered Indian facilities — qualifies for government procurement preference and PSU tenders.
Loading-Unloading Lift — Frequently Asked Questions
Is the Loading-Unloading Lift manufactured in India?
Which regions do you install and service in?
What power supply does the Loading-Unloading Lift need?
Do you provide installation, spares and AMC?
How do I get a quote for the Loading-Unloading Lift?
Is the Loading-Unloading Lift certified?
Scissor Lift Design + Quote in 24 Hours
No generic quotes, no run-around.
In-House Manufacturing
Every scissor lift manufactured under ISO 9001 quality control — no imported products, no middlemen.
Free Site Survey & Civil Drawing
Our engineers survey your floor or pit and supply a full civil drawing for your contractor — at no charge.
AMC Available Nationwide
Annual Maintenance Contracts covering all scissor lifts and material-handling equipment with a 4-hour emergency response SLA.
