up to 4m
Click to enlarge

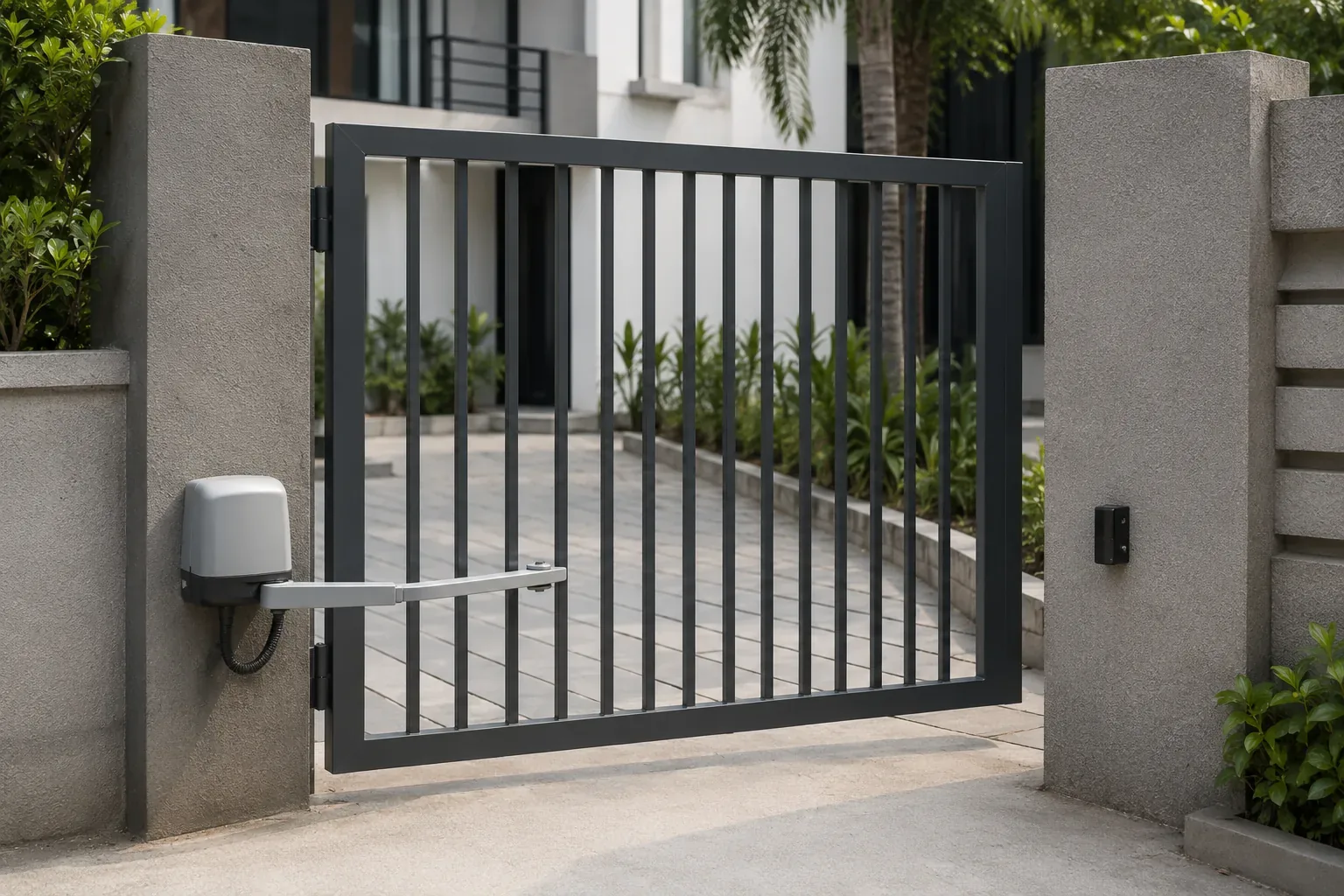

Single Leaf Swing Gate
A single leaf swing gate for narrow driveways, side entries and pedestrian-plus-vehicle gates where one wide leaf is preferred. Driven by an articulated-arm or ram operator with leaf widths up to 4m, it opens smoothly inward or outward to suit your space.
| Leaf width | up to 4m |
| Operator | arm / ram |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
Automatic Swing Gates Built for Indian Conditions
Six engineering advantages that make Yadav Entrance Automation automatic swing gates the preferred choice for homes, factories, farmhouses and commercial premises across India.
Leaf Widths Up to 4m Per Leaf
Our swing gate range covers narrow residential entries to wide industrial driveways — single leaf up to 4m, or double leaf swing gates spanning 8m total. Operators are matched to leaf weight and width so the gate opens smoothly without sag or strain.
Three Operator Choices
Pick the swing gate motor that fits your pillars: a compact articulated-arm operator for thick piers, a ram (linear actuator) for slim columns, or an underground gate motor hidden in a foundation box for a clean, unobstructed look. We advise on the right operator at survey stage.
24V DC with Battery Backup
Every automatic swing gate ships with a 24V DC operator — safer, smoother and able to keep running during a power cut on battery backup. Soft start/stop reduces mechanical shock and extends the life of leaf hinges and the operator gearbox.
Photocell & Anti-Crush Safety
Photocells stop and reverse the leaf if anything crosses its path, a flashing lamp warns during movement, and obstacle detection cuts the motor on resistance. An electric lock secures the closed gate and a manual release frees it in an emergency.
MS, SS & Aluminium Leaves
Heavy duty swing gate leaves in mild steel, stainless steel or aluminium — powder-coated for colour and finish, or hot-dip galvanized for corrosion resistance in coastal and industrial settings. Designs from solid privacy panels to decorative grilles.
Pan-India Install & AMC
Our service network installs and maintains swing gates nationwide, with Annual Maintenance Contracts carrying a 4-hour emergency response SLA. One vendor for manufacture, swing gate motor supply, installation, spares and service — no middlemen.
Where Swing Gates Are Used
Yadav Entrance Automation swing gates are deployed across India's homes, factories, institutions and gated communities — each with specific opening width, leaf weight and access-control requirements our engineers address at specification stage.
Decorative residential swing gates with quiet 24V DC motors, remote, keypad and app access for homes and farmhouses
Heavy duty swing gates with high-torque ram operators for wide industrial driveways and frequent vehicle movement
Double leaf swing gates at office, showroom and warehouse entries integrating with boom barriers and intercom
Estate and society main gates with underground motor swing gates for a clean, unobstructed architectural entrance
Controlled swing gate entrances with photocell safety and access logging for campuses and hospitals
Galvanized heavy duty swing gates for long driveways, with battery backup for reliable operation off-grid
Premium underground motor swing gates that present a concealed, architectural entrance for guests and valets
Single leaf swing gates for side entries and pedestrian-plus-vehicle access at apartment and parking entrances
Single Leaf Swing Gate — Technical Specifications
Complete engineering data for the Yadav Entrance Automation automatic swing gate range. All models are built to order — leaf width, operator type and finish are configured to your entrance and pillar layout.
| Parameter | Specification |
|---|---|
| Configuration | Single leaf / double leaf swing gate (custom on request) |
| Max Leaf Width | Up to 4m per leaf (up to 8m total on double leaf) |
| Operator Type | Articulated-arm / ram (linear actuator) / underground foundation motor |
| Motor & Voltage | 24V DC operator with battery backup; 230V single-phase supply |
| Control | Soft start/stop, obstacle detection, adjustable speed & force |
| Access & Remote | Rolling-code remote, keypad, RFID, intercom or smartphone app |
| Safety Devices | Photocells, flashing lamp, electric lock, manual release key |
| Leaf Material | MS / SS / aluminium — solid panel or decorative grille |
| Surface Finish | Powder-coated (any RAL shade) or hot-dip galvanized |
| Hinges & Posts | Adjustable heavy-duty hinges on RHS / pipe posts, foundation-set |
| Duty Cycle | Residential to high-cycle industrial (operator-dependent) |
| Certifications | ISO 9001:2015, CE Marked (EU Machinery Directive 2006/42/EC) |
| Warranty | 2 years swing gate motor, 5 years structural leaf & frame |
What the Single Leaf Swing Gate is, and who it suits
The Single Leaf Swing Gate is a type of swing gates used across factories, gated campuses, toll points and parking facilities. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Swing Gates range, the sectors we serve, or every product line.
- Factory and plant main entrances
- Warehouse and logistics yards
- Gated campuses and townships
- Parking entries and exits
- Toll and weighbridge lanes
- Security gatehouses
- Clear opening width and the run available for the gate to travel
- Gate leaf weight or approximate size
- Power available at the gate position
- Whether vehicles are read by RFID, ANPR or operated manually
- Daily vehicle volume and number of lanes
- Site levels and the condition of the running surface
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Single Leaf Swing Gate — Engineered & Supported Across India
The Single Leaf Swing Gate is manufactured and supported entirely within India. As an Indian manufacturer of swing gates, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian factories, gated campuses, toll points and parking facilities — variable power supply, high ambient temperatures, dust and monsoon humidity — and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities — qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor — Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi — and the Gujarat industrial belt — Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Swing Gate Variant Comparison
| Gate Type | Max Leaf Width | Operator Type ⭐ Most Popular | Best Use | Control |
|---|---|---|---|---|
| Residential Swing Gate | 2.5m / leaf | Articulated-arm 24V DC | Homes, villas | Remote / keypad / app |
| Single Leaf Swing Gate | 4m / leaf | Ram (linear) 24V DC | Driveways, side entries | Remote / RFID |

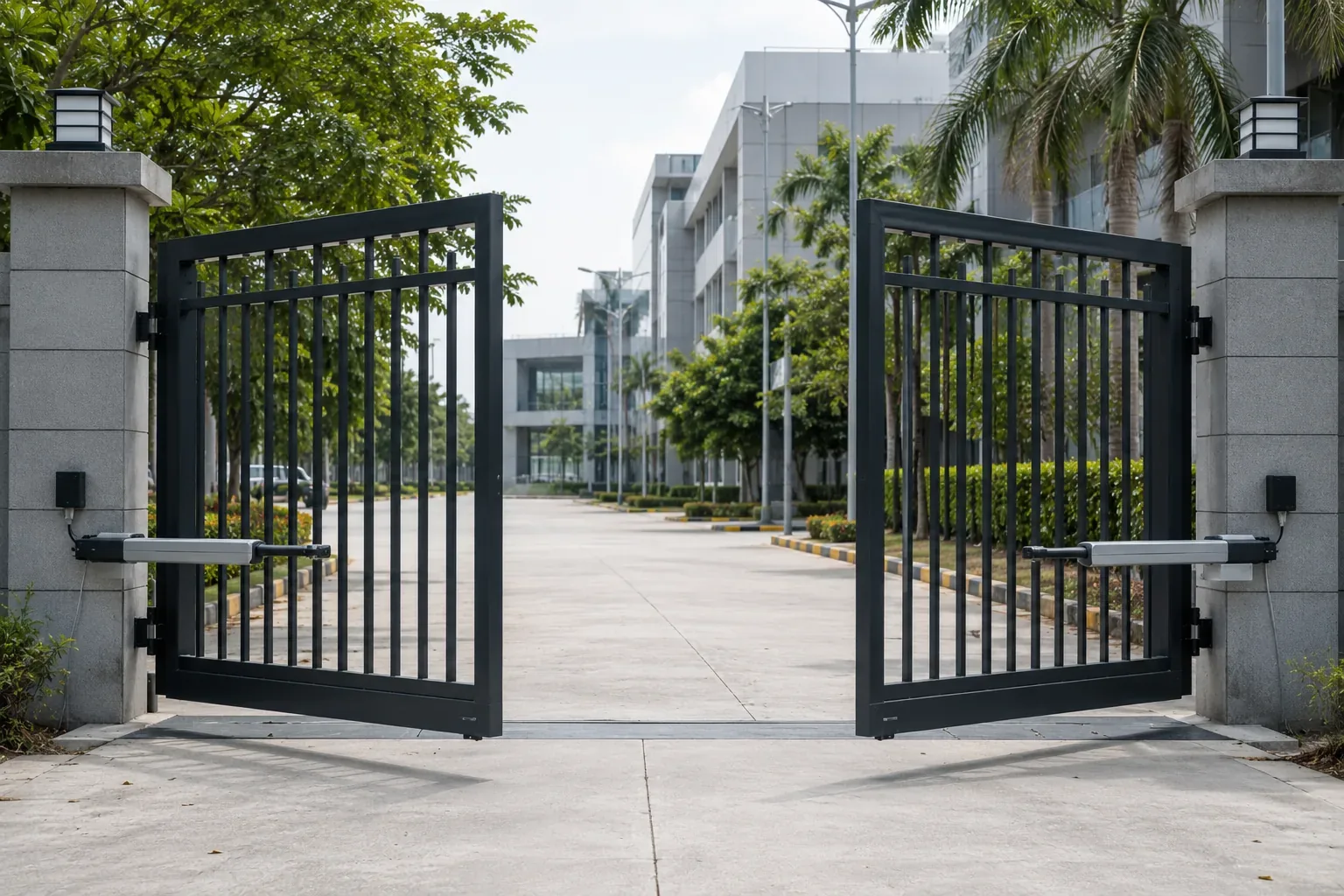

| Double Leaf Swing Gate | 4m / leaf (8m span) | Twin ram / arm, synced | Main entrances | Remote / intercom |

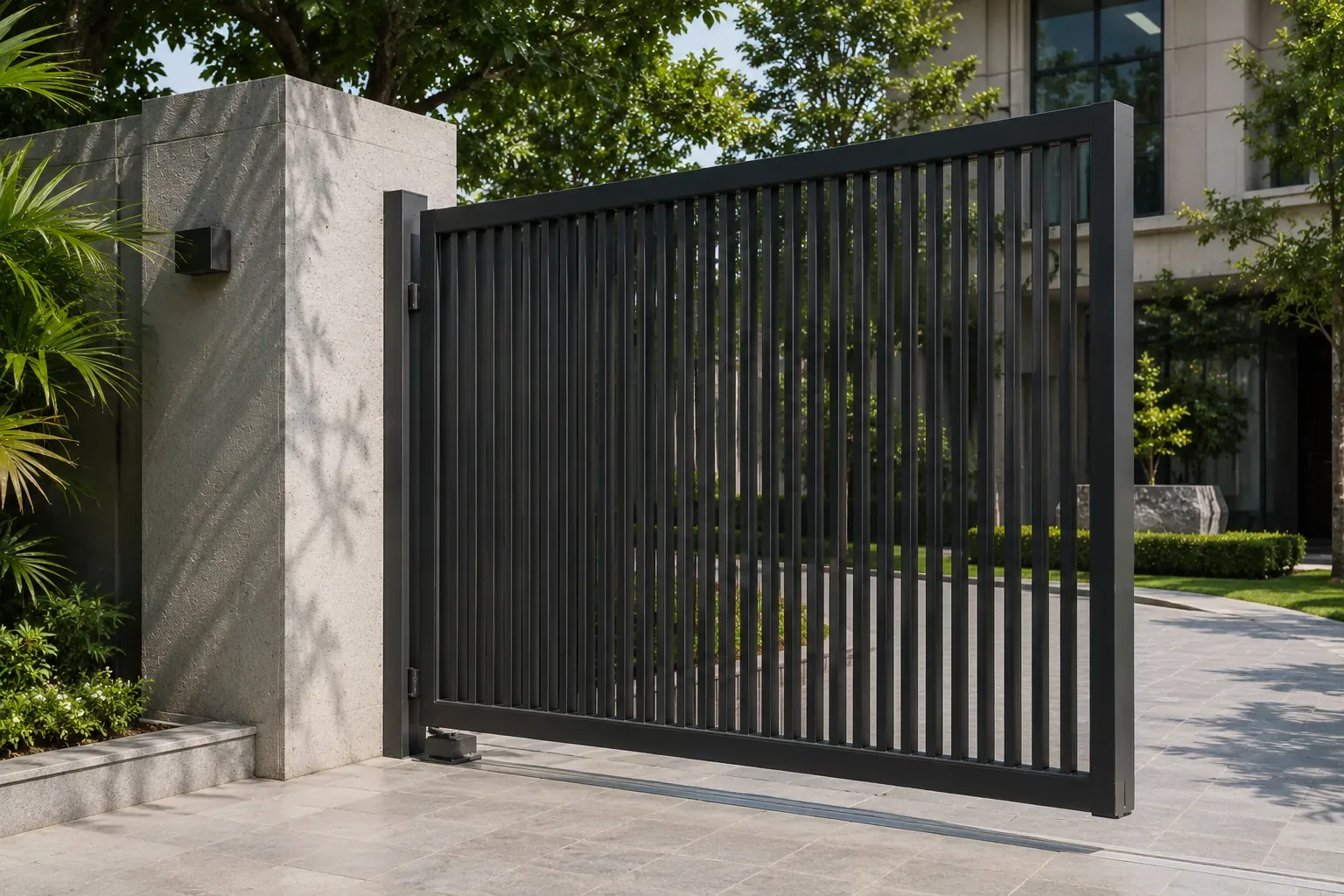

| Underground Motor Swing Gate | 4m / leaf | Underground gate motor | Premium, concealed | Remote / app |

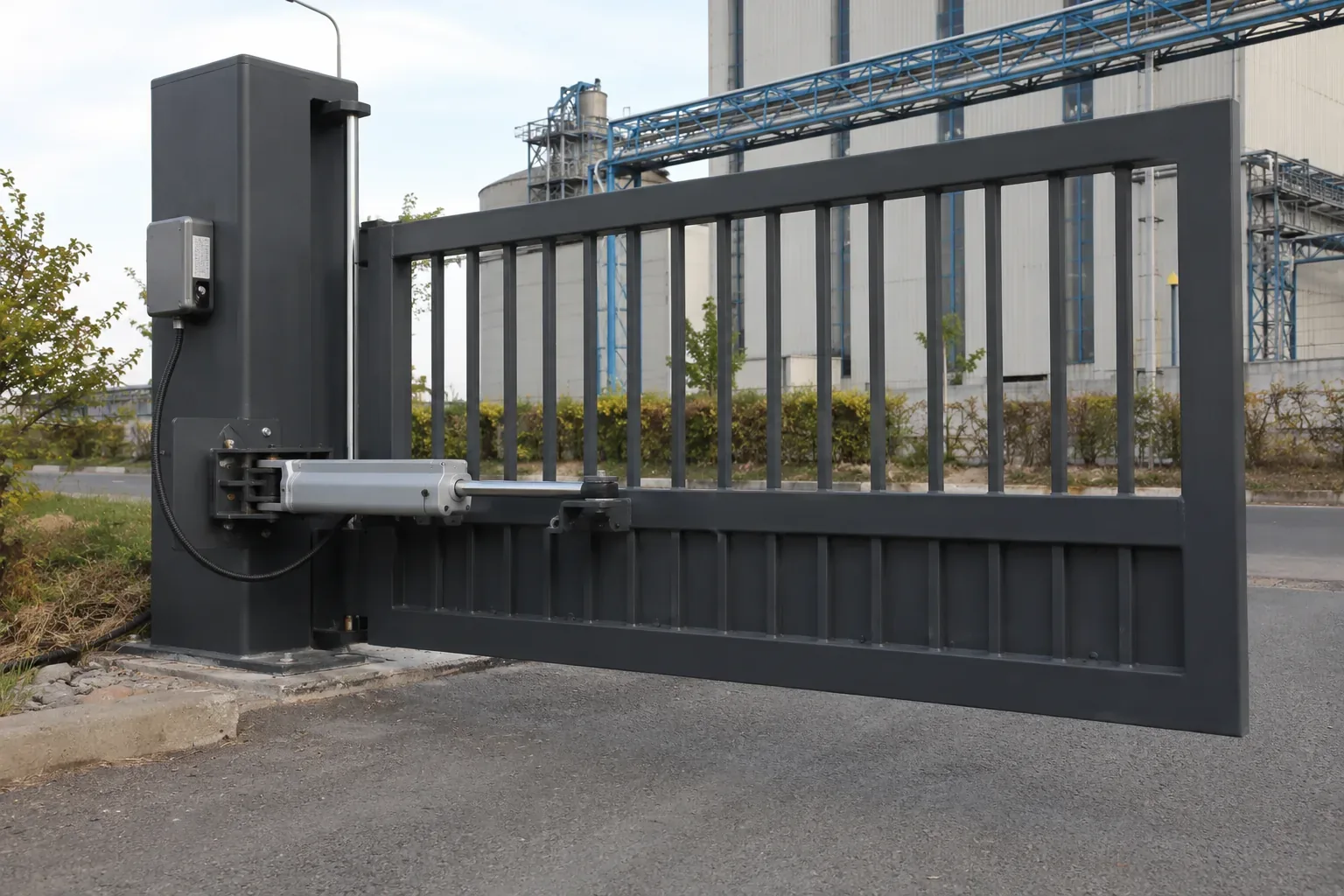

| Heavy Duty Swing Gate | 4m / leaf (8m span) | High-torque ram 24V DC | Factories, estates | RFID / intercom |
Certified to International Standards
Our swing gate range carries the certifications required by India's leading builders, industrial estates, institutions and government procurement bodies.
9001
Quality management certification covering design, manufacture, installation and after-sales service of all swing gates and gate motors.
European conformity per EU Machinery Directive 2006/42/EC — required by multinational clients and confirming swing gate motor safety compliance.
2062
Structural steel to Indian Standard IS 2062 Grade B for swing gate leaves, posts and frames — certified load and fatigue performance.
2016
Installation methodology compliant with the National Building Code of India 2016 for entrance safety and gate clearance.
in India
100% manufactured at our registered Indian facilities — qualifies for government procurement preference and PSU tenders.
Single Leaf Swing Gate — Frequently Asked Questions
Is the Single Leaf Swing Gate manufactured in India?
Which regions do you install and service in?
What power supply does the Single Leaf Swing Gate need?
Do you provide installation, spares and AMC?
How do I get a quote for the Single Leaf Swing Gate?
Is the Single Leaf Swing Gate certified?
Swing Gate Design + Quote in 24 Hours
No generic quotes, no run-around.
In-House Manufacturing
Every swing gate manufactured under ISO 9001 quality control — no imported products, no middlemen.
Free Site Survey & Pillar Check
Our engineers survey your entrance, pillars and power supply and recommend the right swing gate motor — at no charge.
AMC Available Nationwide
Annual Maintenance Contracts covering all swing gates and entrance-automation equipment with a 4-hour emergency response SLA.
